119

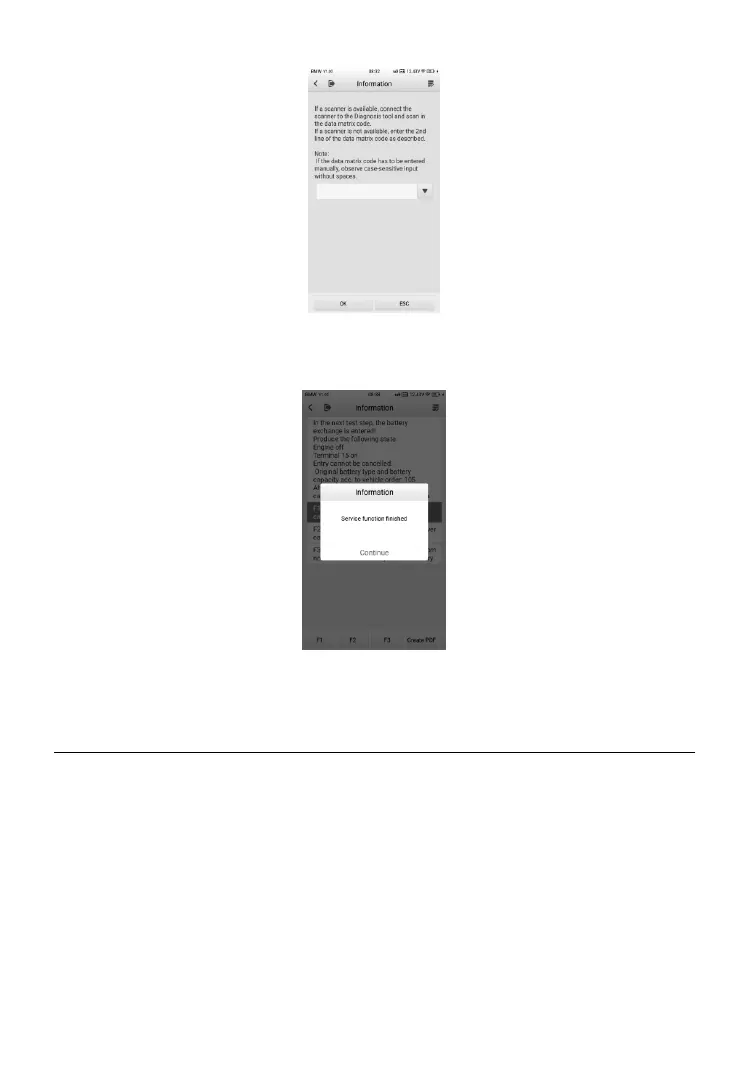

Figure 9-16 Sample BMS Screen 7
5. When the battery exchange is successfully entered, tap Continue to exit.
Figure 9-17 Sample BMS Screen 8
9.4 Steering Angle Sensor (SAS) Service
Steering Angle Sensor Calibration permanently stores the current steering
wheel position as the straight-ahead position in the steering angle sensor
EEPROM. Therefore, the front wheels and the steering wheel must be set
exactly to the straight-ahead position before calibration. In addition, the
vehicle identification number (VIN) is also read from the instrument cluster
and stored permanently in the steering angle sensor EEPROM. On
successful completion of calibration, the steering angle sensor fault memory
is automatically cleared.
