T1689 Technical Manual Rev 07 CDM Assembly
MV3000 Air Cooled DELTA fitting FLOOR MOUNTED REACTORS
Page 113
5.3 FITTING FLOOR MOUNTED REACTORS
Depending upon the system configuration, a number of wound components will require floor mounting.
Figure 5–1 shows a typical interbridge transformer. Other reactors (line, sharing and d.c. link) will be similarly
constructed.
The reactor should be lifted into position, by its lifting eye bolts, with suitable lifting equipment. It should be
secured through the fixing holes to the base of the enclosure.

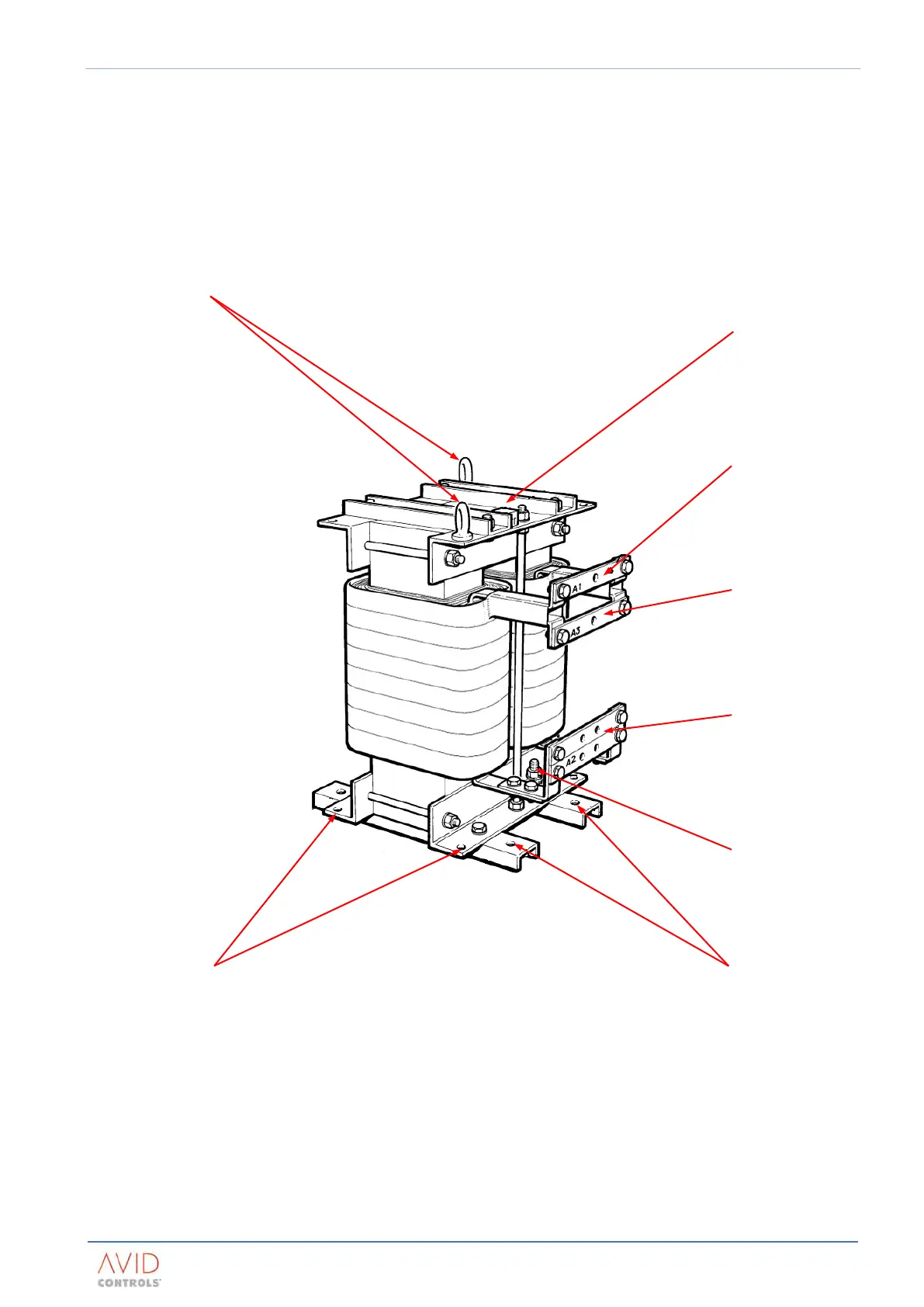

Figure 5–1. – Typical Interbridge Transformer
Terminal block for
thermistor
connections
