Specification T1689 Technical Manual Rev 07
MV3000e Drive Data ManagerTM (Keypad) MV3000 Air Cooled DELTA
Page 32
2.7.1 Electrical Connections
The connections from the SMPS unit to other equipment in the DELTA drive are as follows:
• One 40 way ribbon cable, supplied as part of the DELTA transistor module;
• A two pin connector plugs into the d.c. link of the associated DELTA transistor module.
2.8 MV3000E DRIVE DATA MANAGER
TM
(KEYPAD)
Units covered: MVS3000-4001 (DDM)
MVS3001-4001 (Installation kit)
The Drive Data Manager
TM
, shown in Figure 2–6, is an ergonomically designed keypad which provides the
functionality to configure a drive system. It also provides motor control and diagnostic functions.
The Drive Data Manager
TM
derives its power supply from the MV3000e Controller.

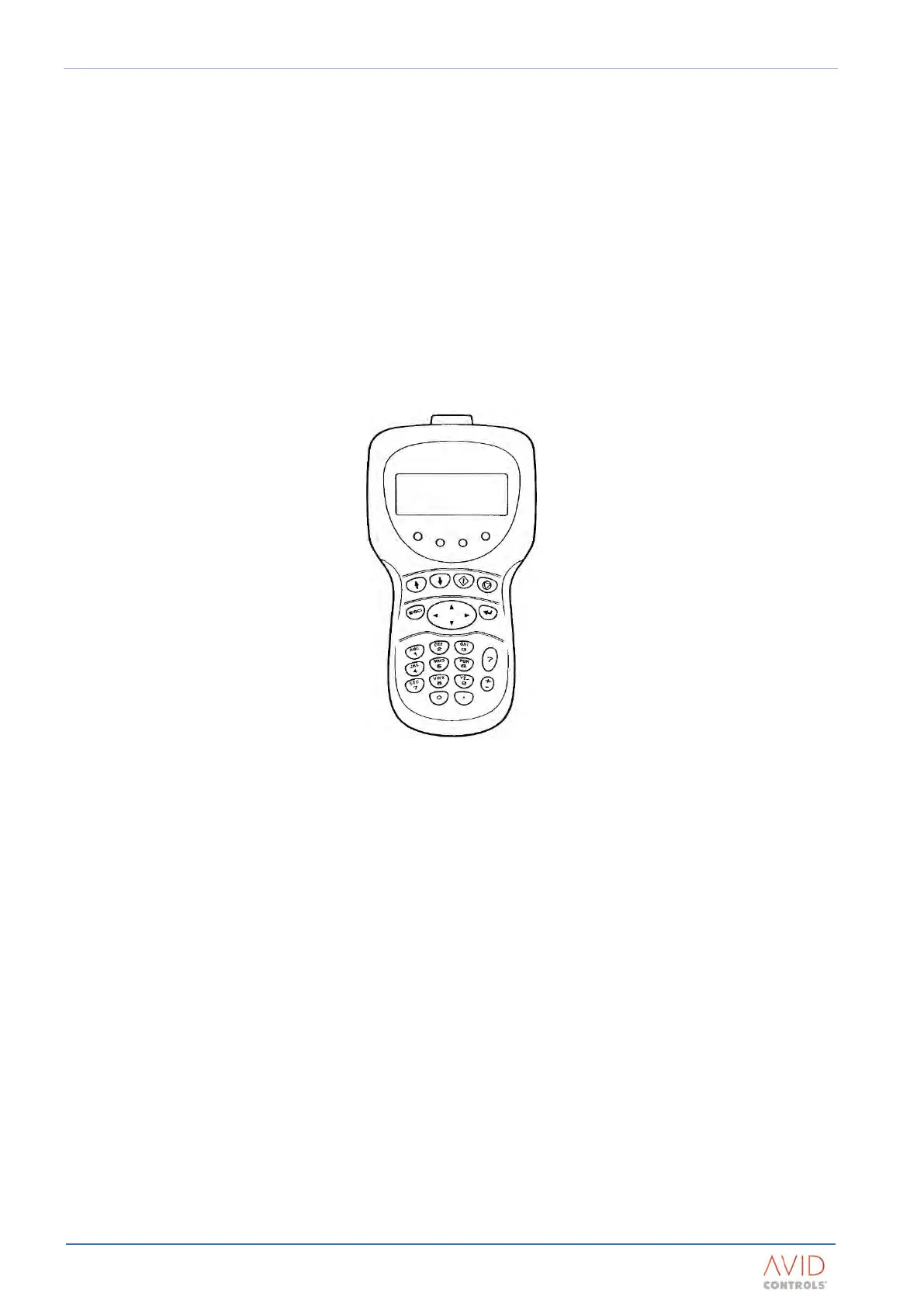

Figure 2–6. – Drive Data Manager
TM
(Keypad)
An installation kit containing a waterproof gasket and a lead is available separately. The lead for connection
from the Keypad to the MV3000e controller has a maximum length of 3 m (9.8 ft.). This lead length determines
the relative positions of the Drive Data Manager
TM
and the controller. When supplied with a waterproof
gasket, it can be mounted on an enclosure door to meet IP 65 enclosure protection.
The specification for the Drive Data Manager
TM
and its electrical connections,
are included in the T1915
Instruction Sheet which is supplied with the Drive Data Manager
TM
.
