Avid Technology MV3000 DELTA - Interbridge Transformers

Appendix A: Dimensioned Mechanical Drawings T1689 Technical Manual Rev 07
Reactors, Inductors & Transformers MV3000 Air Cooled DELTA
Page 168

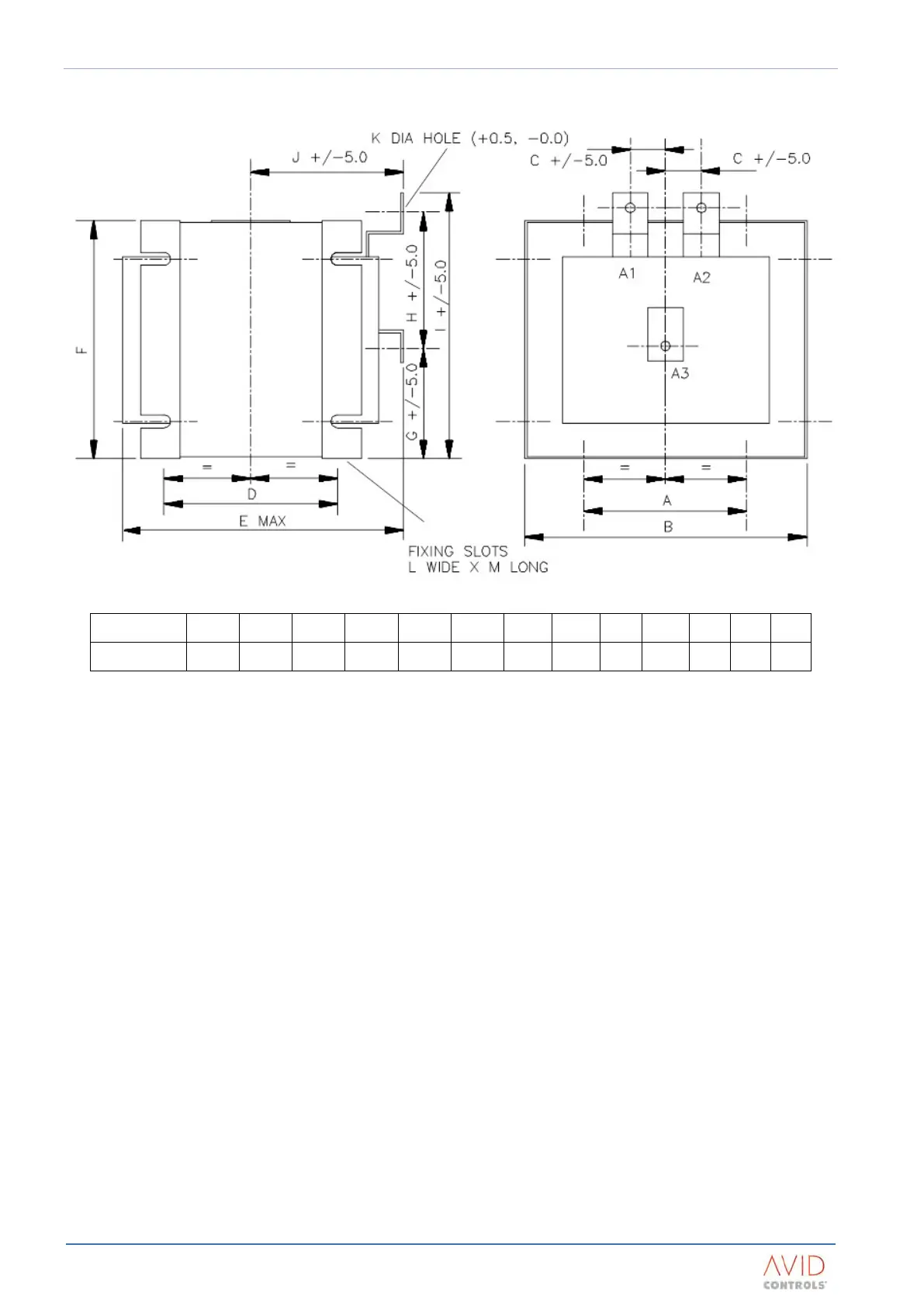

10.6.3 Interbridge Transformers
Order No.
A
B
C
D
E
F
G
H
I
J
K
L
M
33Z0352/10
165
290
30
135
250
245
90
125
240
160
11
13
24
