Avid Technology MV3000 DELTA User Manual

T1689 Technical Manual Rev 07 Appendix B: Electrical Connection Diagrams
MV3000 Air Cooled DELTA RECTIFIER Bridge – CONTROL CONNECTIONS
Page 175

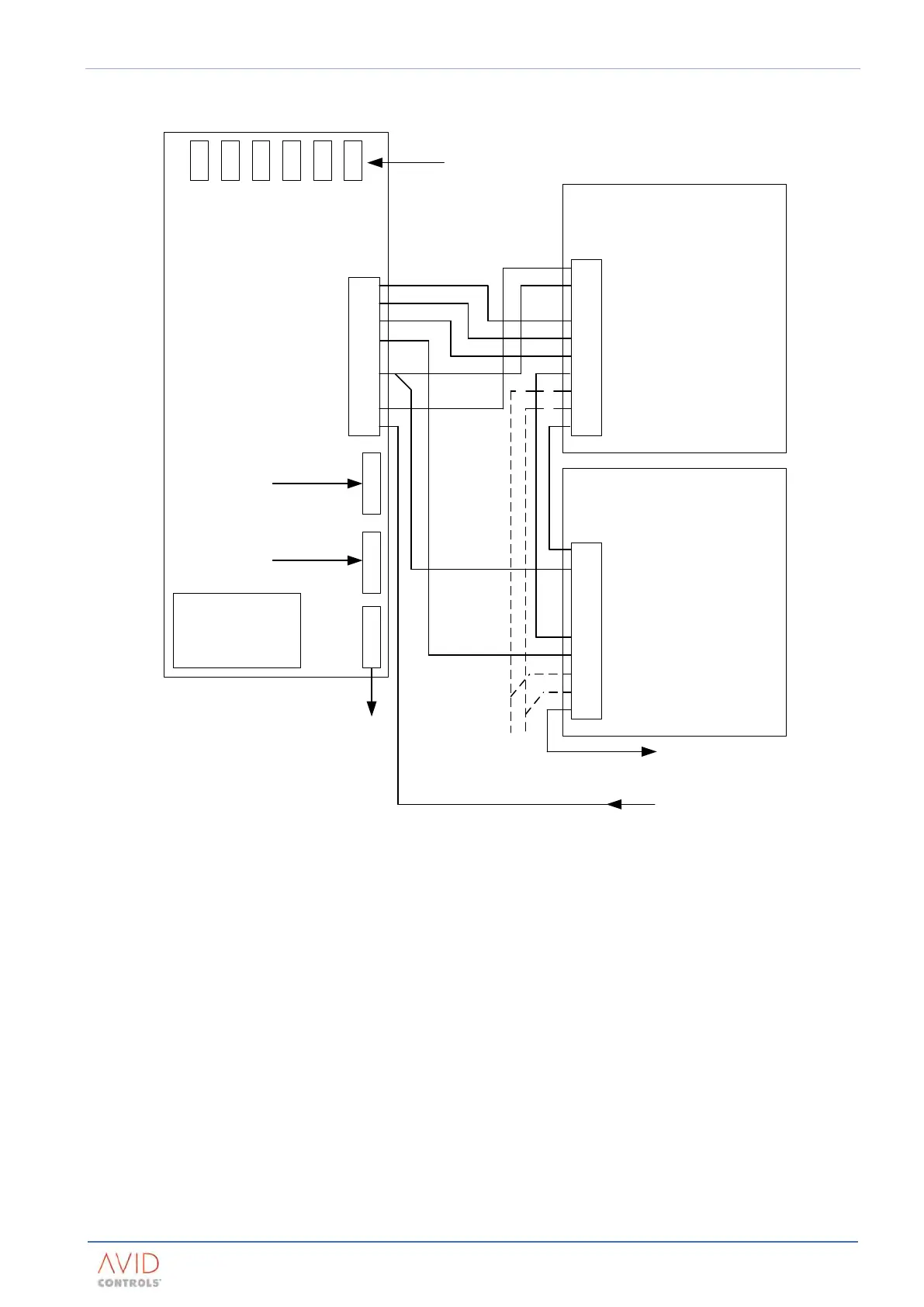

11.2.3 GDR633, GDR872 & GDR1168 Rectifier Bridge
110V a.c. Input
-4601 Models
Only
Machine Bridge
Control Connections
MVC3001-400x
Controller
PL7 PL6 PL5
PL4
PL3
PL2
PL20
DELTA 1
Optional
Communications
Modules
PL12
Thermistor
Thermistor
Thermost at
Thermost at
0V
Precharge Acknowledge
Precharge Complete 24V
3
4
5
2
1
6
7
8
9
SK5PL10
Not connected
User I/O
Termination Panel
Drive Data
Manager™
(Keypad)
Mains Voltage
Monitor
Optional
+24V
Connections to user’s “system
healthy” daisy chain circuit
TB1
Thermistor
Thermistor
0V
+24V
Precharge Acknowledge
3
4
5
2
1
6
7
8
9
10
GDR633, GDR872 & GDR1168
Rectifier Module #2
Not connected
Thermost at
110V a.c. Input
110V a.c. Input
Thermost at
TB1
Thermistor
Thermistor
0V
+24V
Precharge Acknowledge
3
4
5
2
1
6
7
8
9
10
GDR633, GDR872 & GDR1168
Rectifier Module #1
Not connected
Thermost at
110V a.c. Input
110V a.c. Input
Thermost at
