Avid Technology MV3000 DELTA - Earth Connection; Fitting Shrouds

CDM Assembly T1689 Technical Manual Rev 07
DELTA RECTIFIER MODULE Power CONNECTIONS MV3000 Air Cooled DELTA
Page 122
5.12.4 Earth Connection
The earth terminal is a single M10 threaded insert, located on the lower front of any DELTA Rectifier module
and identified as shown in Figure 5–10.

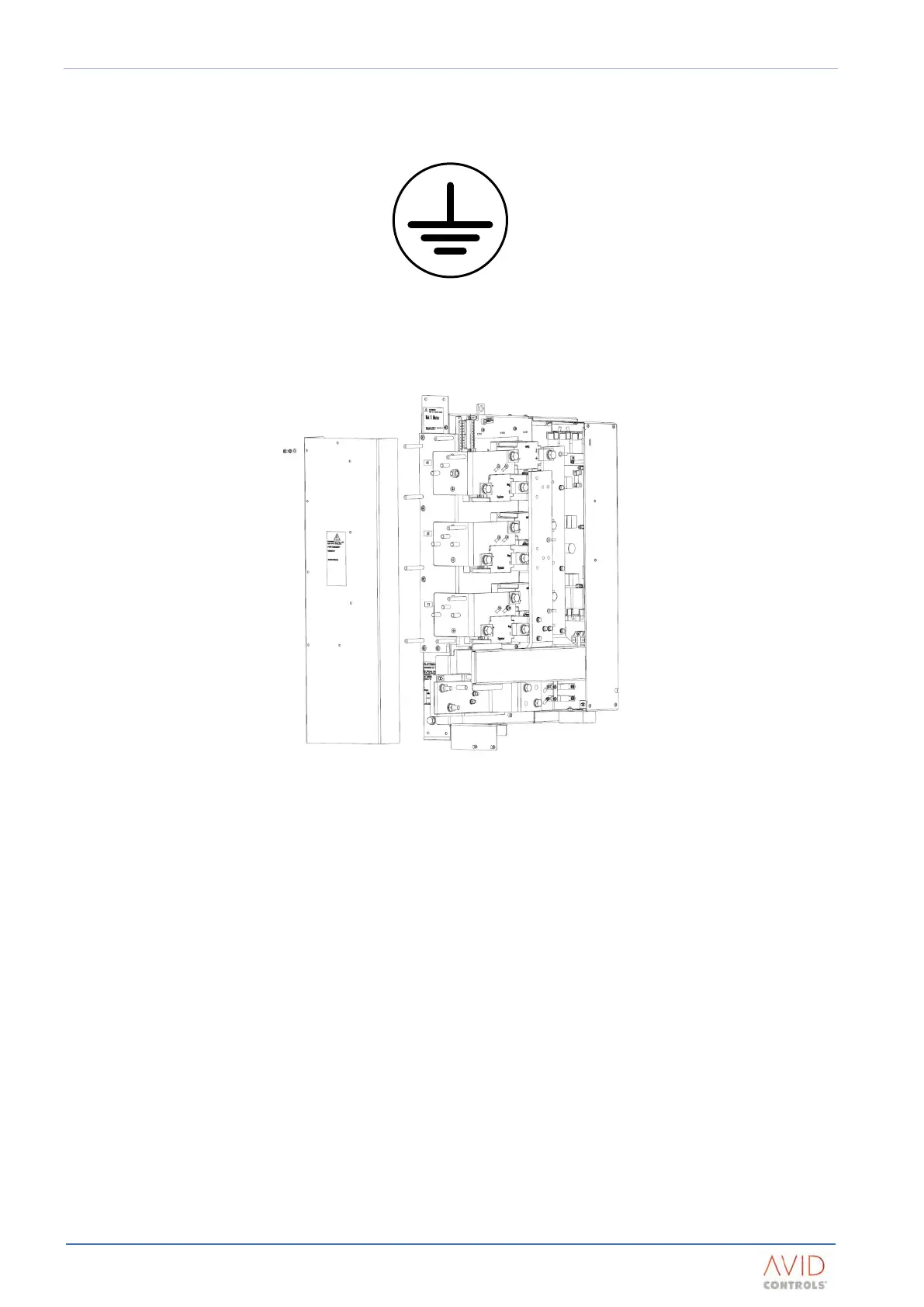

Figure 5–10. - Protective Earth (ground) Symbol
5.12.5 Fitting Shrouds
Figure 5–11. – Shroud Assembly
Shrouds used on the DELTA rectifier module are shown in Figure 5–11. One shroud covers all of the a.c. phase
terminals R1, S1 T1 and R2, S2, T2. It is secured with M5 pozi-head screws into spacers which in turn screw into
the front of the module.
NOTE: These shrouds are supplied loose and must be fitted after the connections have been made.
