T1689 Technical Manual Rev 07 Appendix A: Dimensioned Mechanical Drawings

MV3000 Air Cooled DELTA Reactors, Inductors & Transformers

Page 165

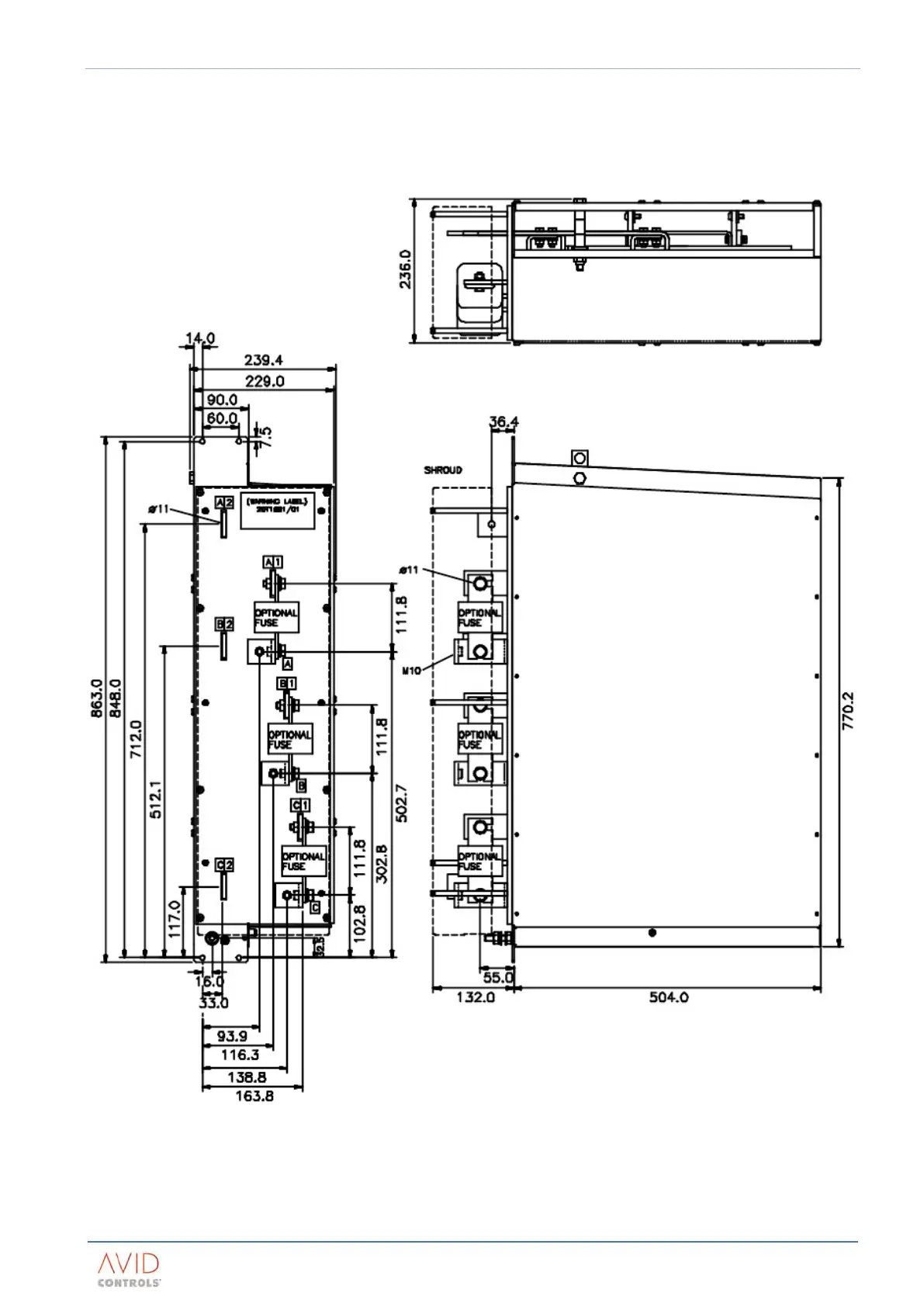

10.6 REACTORS, INDUCTORS & TRANSFORMERS

10.6.1 Input Line Reactors For DFE Drives

10.6.1.1 30V6500, 630A a.c.

NOTE: 30V6500/10 has the same outline as 30V6500/20 but does not include the optional fuses.

Customer connection for 30V6500/10 is to A1, A2 & A3 not A, B & C as shown for 30V6500/20
