Appendix A: Dimensioned Mechanical Drawings T1689 Technical Manual Rev 07
Reactors, Inductors & Transformers MV3000 Air Cooled DELTA
Page 166

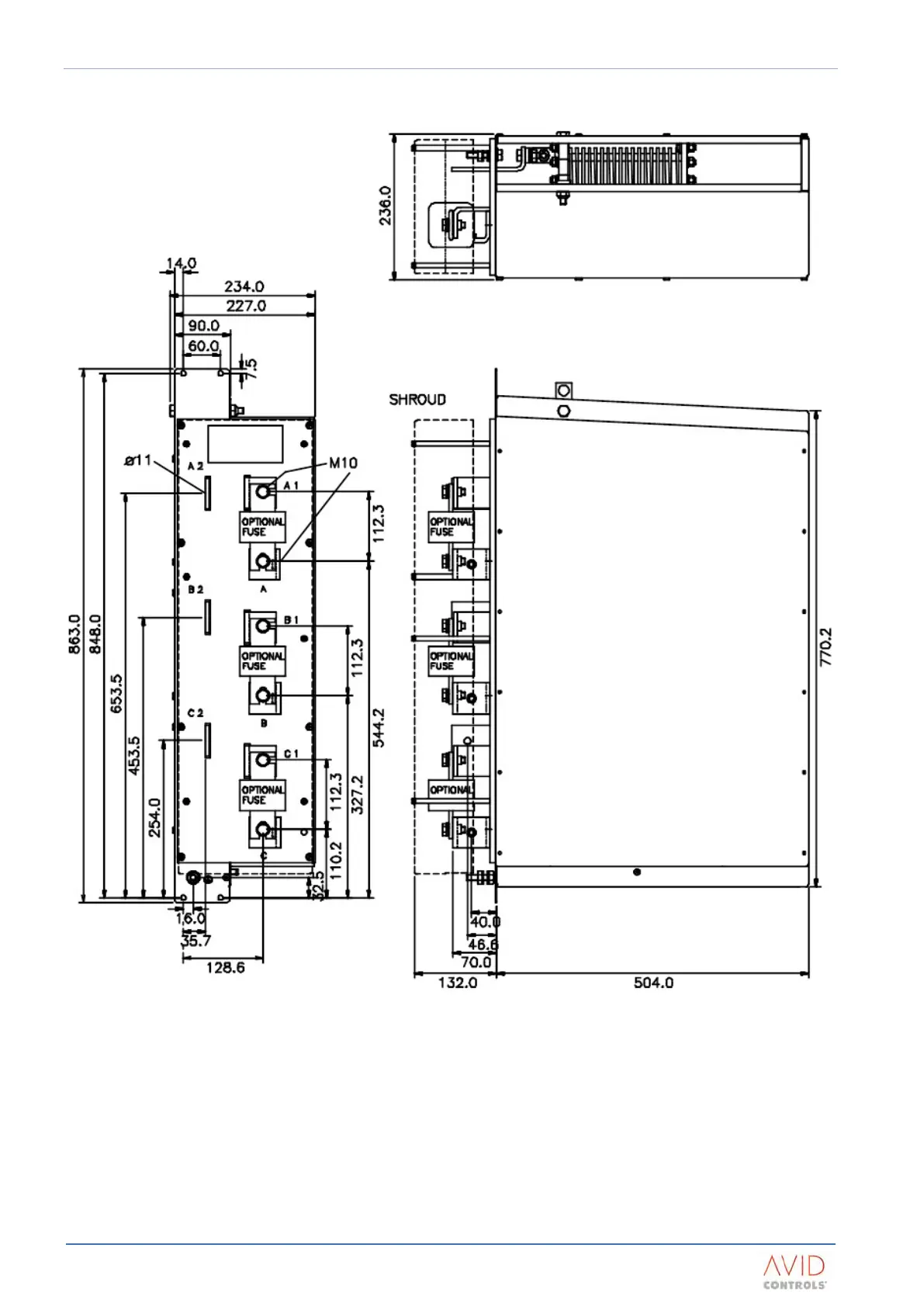

10.6.1.2 30V6500 630A a.c.
NOTE: 30V6700/10 has the same outline as 30V6700/20 but does not include the optional fuses.
Customer connection for 30V6700/10 is to A1, A2 & A3 not A, B & C as shown for 30V6700/20
