T1689 Technical Manual Rev 07 Specification
MV3000 Air Cooled DELTA DELTA POWER Modules – Dirty Air Ducting 20T1671/01
Page 61
2.12 DELTA POWER MODULES – DIRTY AIR DUCTING 20T1671/01
2.12.1 Introduction
When the power cooling path is separated from the control enclosure for ‘dirty air’ applications an intake
duct, 20T1671/01, should be fitted. This duct enables air to be drawn through a suitable aperture in the
enclosure rear sheet.

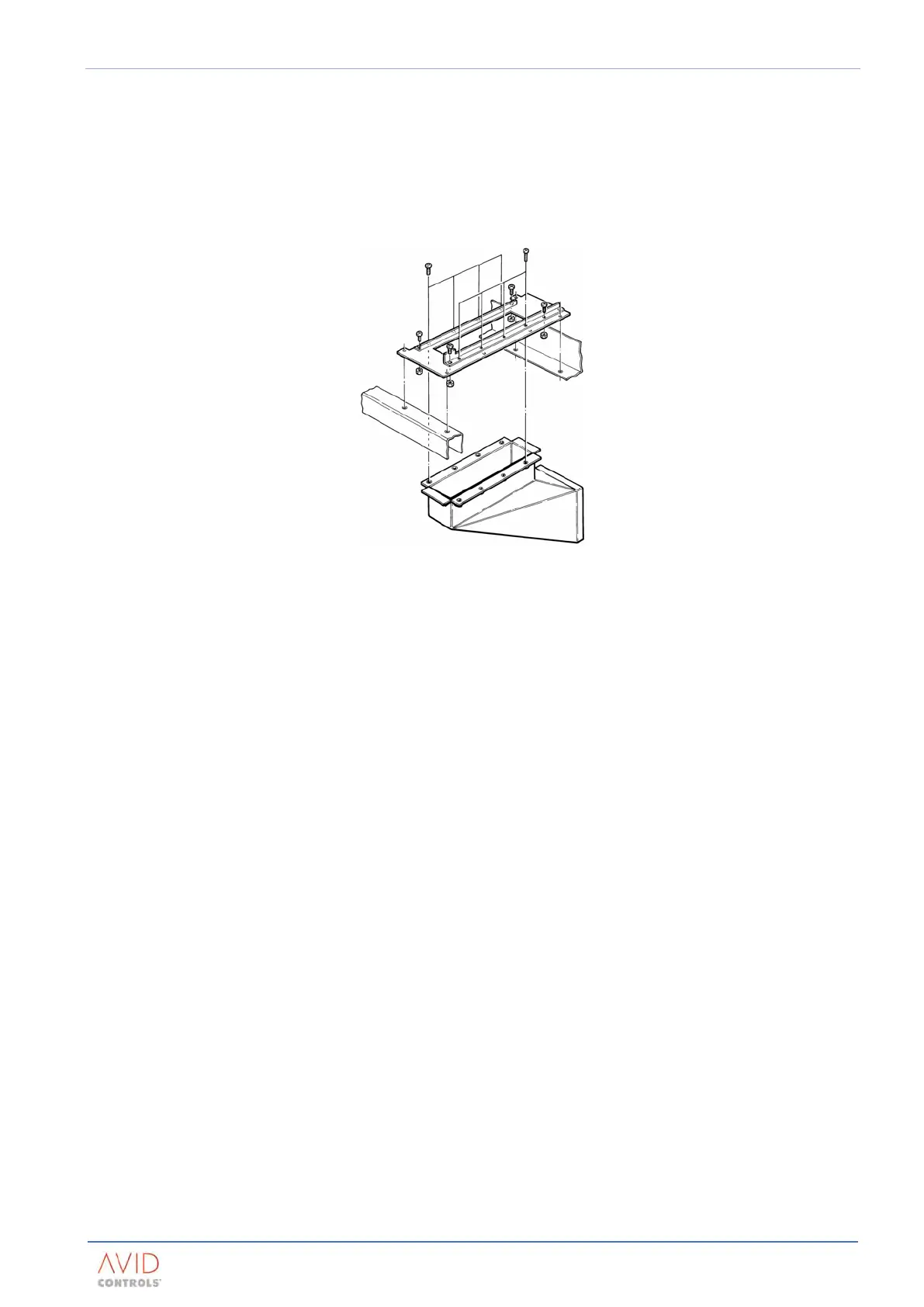

Figure 2–22. – Mounting the ‘Dirty Air’ Intake Duct
2.12.2 Features
• Allows segregation of the cooling path from the control enclosure.
• Enables air to be drawn through a suitable aperture in the enclosure rear sheet.
2.12.3 Interface
The ‘dirty air’ intake duct fixes directly to the underside of the standard module mounting plate using four M4
screws.
