T1689 Technical Manual Rev 07 Specification
MV3000 Air Cooled DELTA Switched Mode Power Supplies (SMPS)
Page 31
2.7 SWITCHED MODE POWER SUPPLIES (SMPS)
Units covered: See Table 2–14.
The DELTA SMPS, shown in Figure 2–5, is mounted on the front of each transistor module. It provides power to
the control electronics of the transistor module and for the MV3000e controller. The SMPS derives a supply
from the drive d.c. link, via a connector on the associated transistor module.
There are several versions, offering different operating voltages, or enhanced d.c. link monitoring.
Power to the control electronics is maintained during a temporary loss of supply.

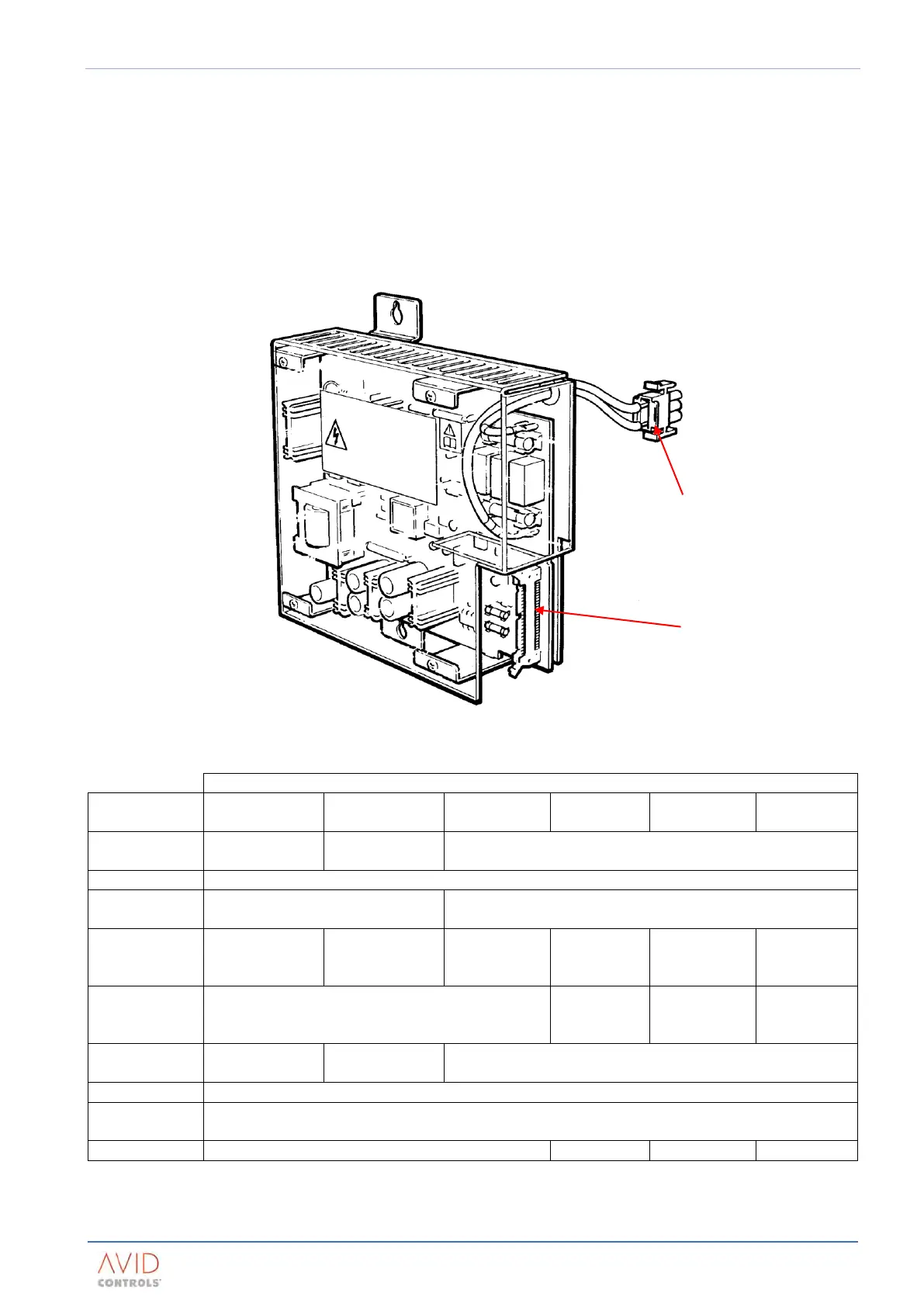

Figure 2–5. – MVC3003 SMPS Module
Nominal drive
supply voltage
380 – 440 V a.c.
(400 V nominal)
460 – 525 V a.c.
(480 V nominal)
575 - 690 V a.c.
(600 V nominal)
Fed from d.c. link of DELTA transistor module
450 V d.c. 550 V d.c.
Overvoltage
784 V d.c. 882 V d.c. 1172 V d.c. 1188 V d.c. 1290 V .d.c. 1262 V d.c.
Overvoltage
Not available 1188 V d.c. Not available 1188 V d.c.
400 V d.c. 450 V d.c. 560 V d.c.
50°C
Table 2–14. - SMPS Specifications
NOTE: See Section 3: Drive (CDM) Design for SMPS selection guidance.
Connection to the DC link
40 way ribbon cable
connector to the DELTA
transistor module
