Avid Technology MV3000 DELTA - Page 164

Appendix A: Dimensioned Mechanical Drawings T1689 Technical Manual Rev 07
MV TRANSISTOR MODULEs MV3000 Air Cooled DELTA
Page 164

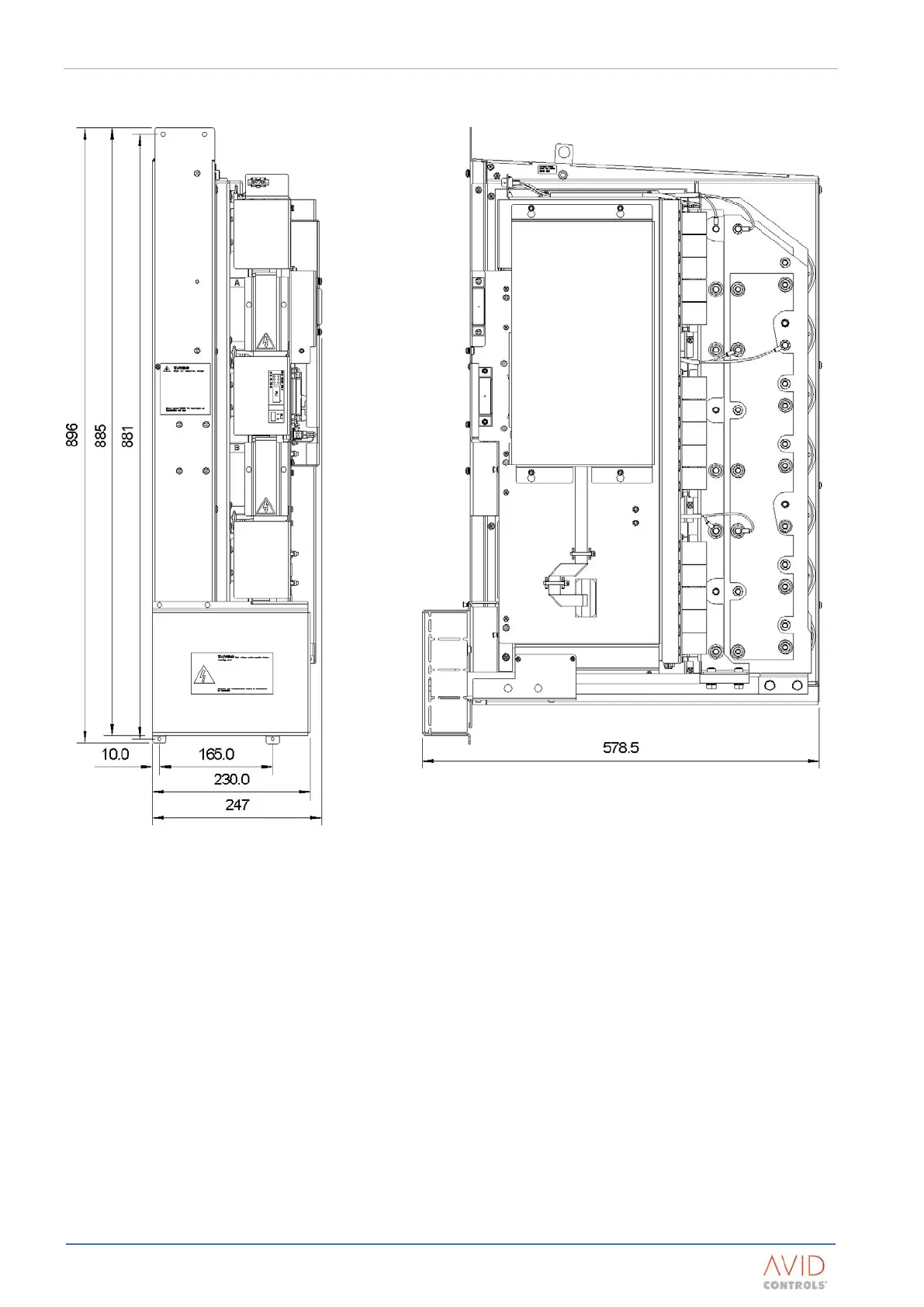

10.5.2.2 Module With Shrouding
