MXNET 1G USER MANUAL

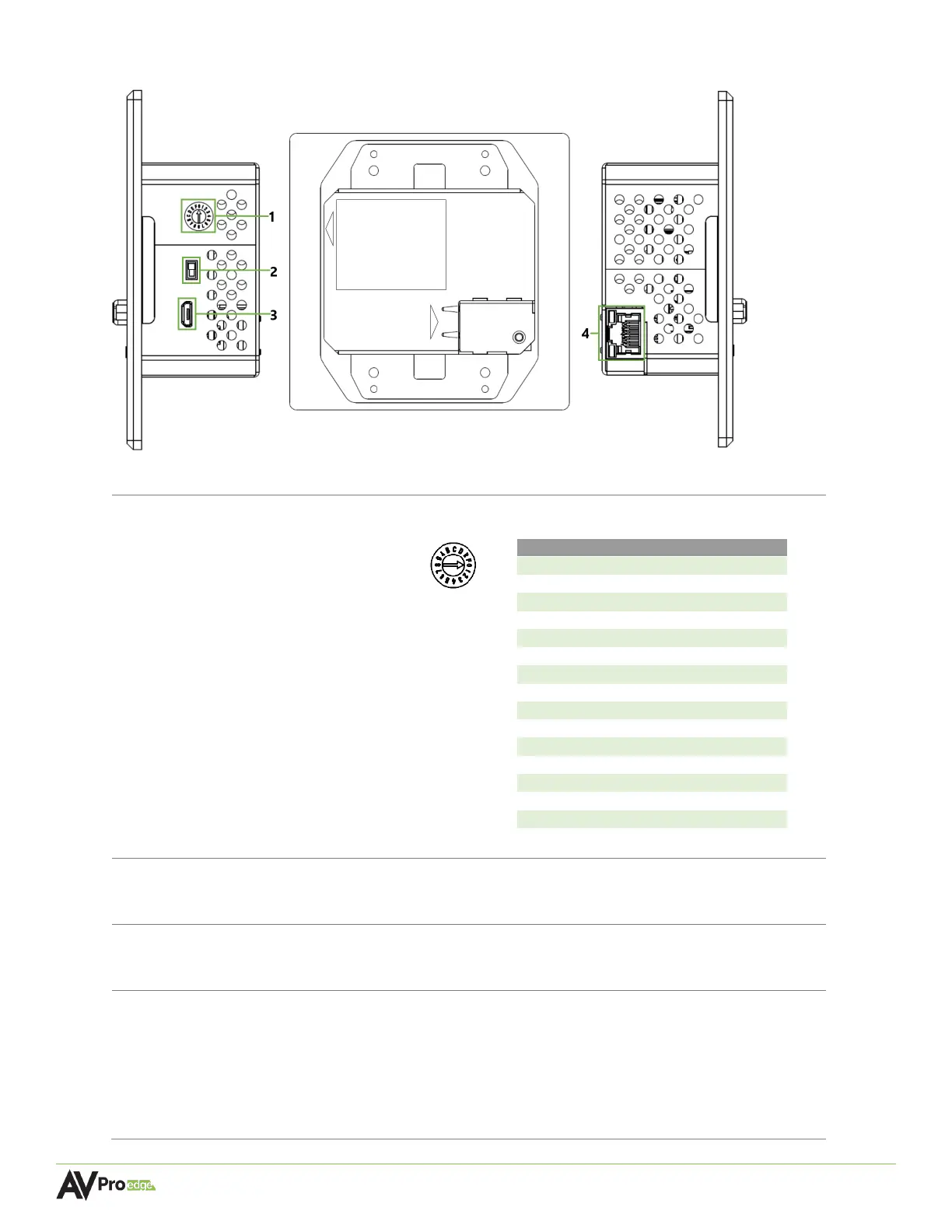

Encoder Wall Plate Rear and Side Panels
1
EDID DIAL
•
Dial for manually setting an EDID on the encoder wall plate
EDID SETTINGS
EDID FOLLOW SOFTWARE (default)
0
1080P 2D 6CH
1
1080P 3D 6CH
2
1080P 3D 6CH
3
4K30Hz 3D 2CH
4
4K30Hz 3D 6CH
5
4K30Hz 3D 8CH
6
1080P 2D 2CH HDR
7
1080P 2D 6CH HDR
8
1080P 3D 2CH HDR
9
1080P 3D 6CH HDR
A
4K30Hz 3D 2CH HDR
B
4K30Hz 3D 6CH HDR
C
4K30Hz 3D 8CH HDR
D
1920 x 1200 3D 2CH HDR
E
USER EDID
F
2
USB FUNCTION
•
FPGA/MCU toggle switch
• Service function for AVPro Edge technical assistance
3
USB PROPRIETARY
•
Micro-USB Type B female connector port
• Service port for AVPro Edge technical assistance
4
1GbE NETWORK
•
8-pin RJ-45 female connector, 1000BASE-T copper Ethernet port
• Supports standard PoE power, IEEE 802.3AF (15.4 W)
• Maximum power consumption of 6.5 W
• 10/100/1000Mbps auto-negotiation
• MDI/MDI-X cable mode auto-negotiation
• Maximum distance 100m (330ft) over Cat5e and higher
