3.8 AC-MXNET-SW48

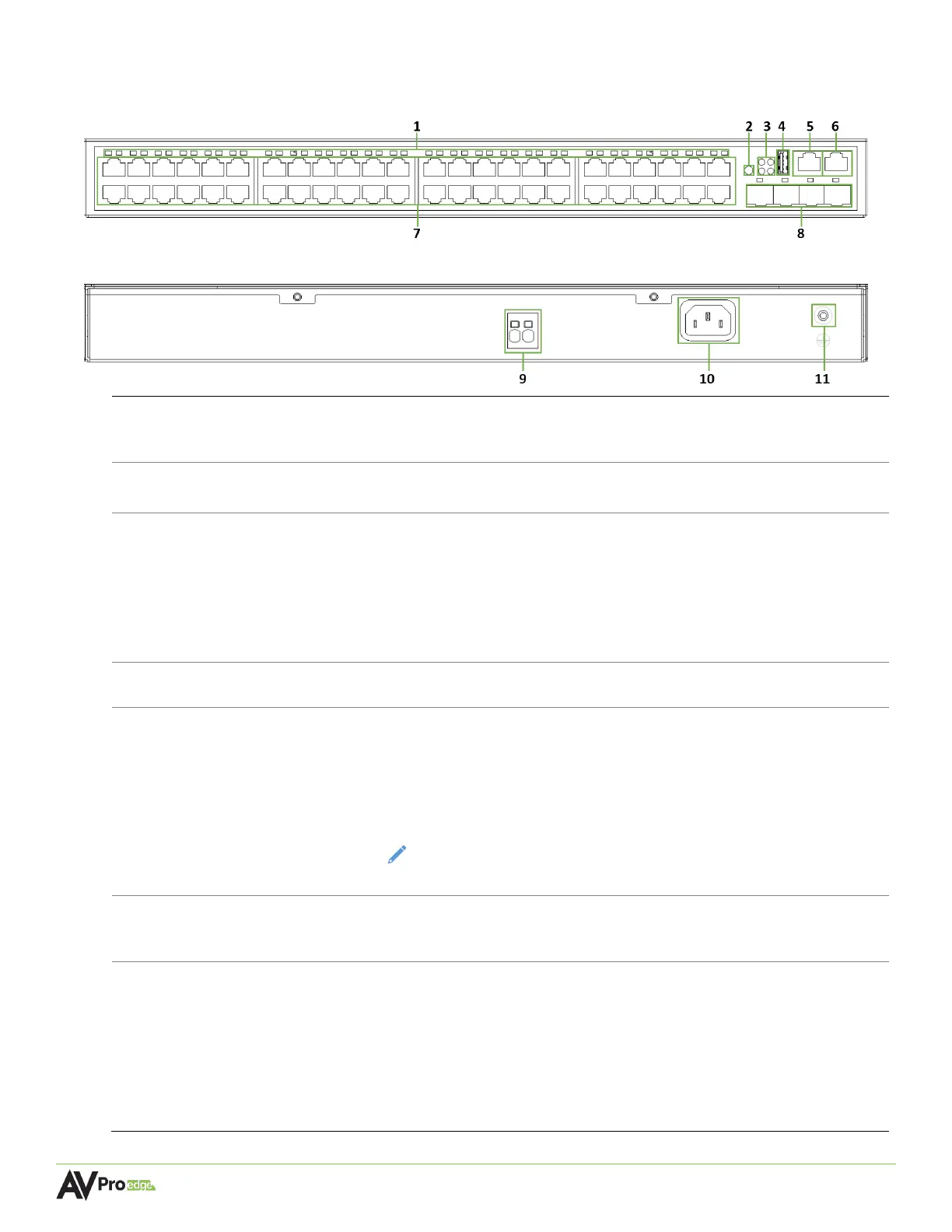

48-Port Network Switch Front Panel
48-Port Network Switch Rear Panel
1
ACTIVITY LIGHTS 1-48
•
Green LED status indicator lights
• Steady flickering green lights to indicate network activity is present
2
MODE BUTTON
•
Press to toggle on/off the PoE status light.
3
SYSTEM STATUS
LIGHTS
•
POE LED remains solid green to indicate PoE is present on the switch
• DIAG LED steadily flashes green to indicate a continuous diagnostic of
the system is running on normal operations
• PWR LED remains solid green to indicate the switch is powered on
• MGMT LED steadily flashes green to indicate a stable link is present on
the MGMT port
4
USB 2.0 PORT
• Used for managing the switch’s network configuration settings
5
MGMT PORT
•
8-pin RJ-45 female connector port
• Used for managing the switch’s network configuration settings and
tracking system data.
• Connects to any port (2-7) on the AC-MXNET-CBOX for tracking switch
performance using the Mentor web UI.
NOTE: This is a required physical connection in order to fully access the
switch’s Switch Management page within the Mentor web UI.
6
CONSOLE PORT
•
8-pin RJ-45 female connector port
• Used for accessing the MXNet CLI (Command Line Interface)
7
1GbE COPPER PoE
PORTS 1
-48
•
(48x) 8-pin RJ-45 female connector ports, 1000BASE-T copper Ethernet
• Supports standard PoE power, IEEE 802.3AF (15.4 W)
• Maximum power consumption of 6.5 W
• 10/100/1000Mbps auto-negotiation
• MDI/MDI-X cable mode auto-negotiation
• Maximum distance 100m (330ft) over Cat5e and higher
• Connects to the encoders and decoders
