3.3 AC-MXNET-1G-EWP

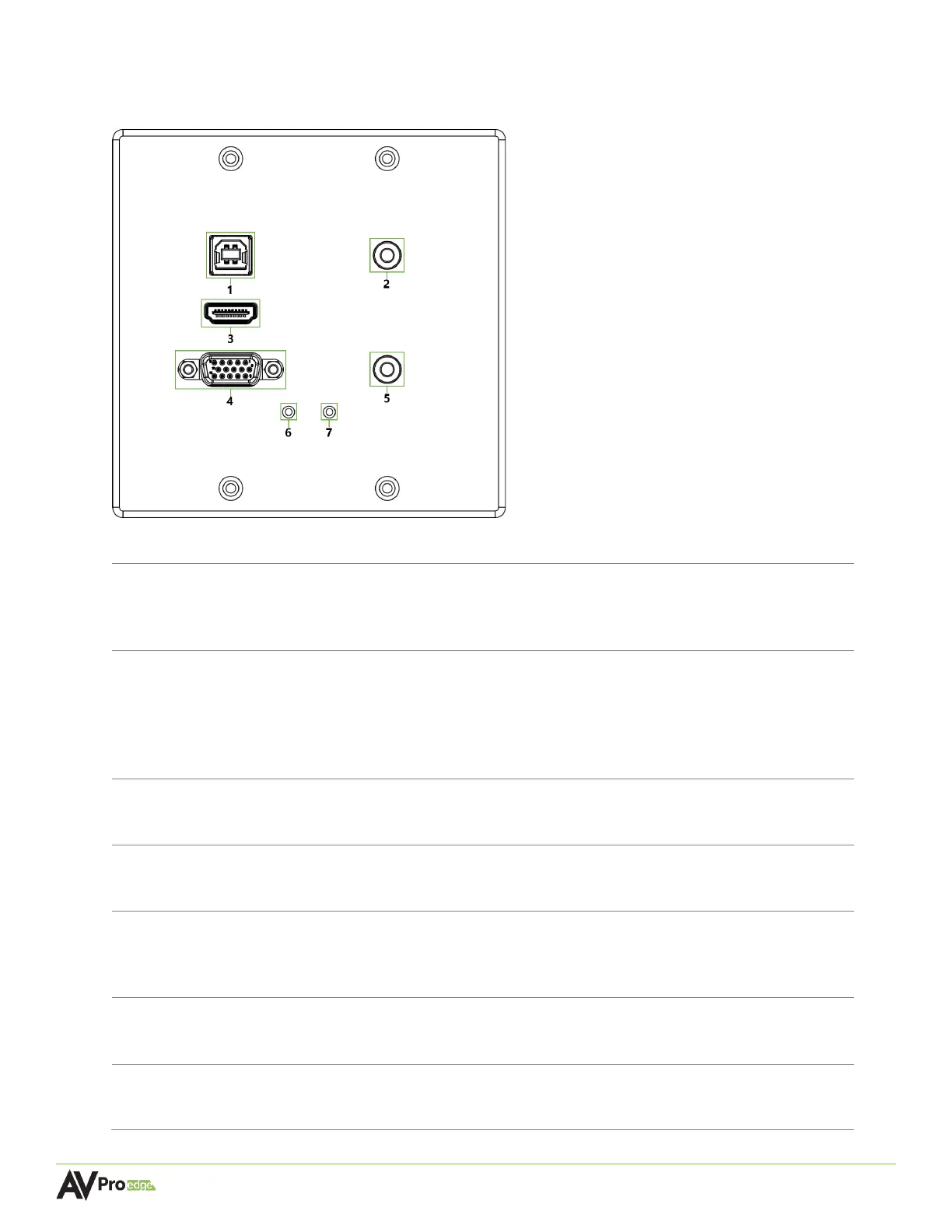

Encoder Wall Plate Front Panel
1
USB HOST
•
USB 2.0 Type B female connector port
• USB extension for connecting to a computer or USB 2.0 devices
• Supports KVM routing and hosting
2
RS232 CONTROL
•
3.5mm stereo jack (TRS) female connector port
• Sends encapsulated/virtualized RS-232 (serial pass-through) over IP
via the MXNet API
• Supports serial routing with direct connection to a control system
processor
3
HDMI IN
•
19-pin HDMI Type A female connector port
• Source device input for HDMI connection
4
VGA IN
•
15-pin VGA female connector port
• Source device input for VGA connection
5
AUDIO INPUT
•
3.5mm stereo jack (TRS) audio input port
• Auto-detects input once directly connected, overrides HDMI input
audio
6
INPUT STATUS
•
AUTO-SENSE LED status indicator light
• Illuminates only when an active source is connected to VGA IN port
7
LINK
•
Blue LED status indicator light
• Illuminates only when an active source is connected to HDMI IN port
