MXNET 1G USER MANUAL

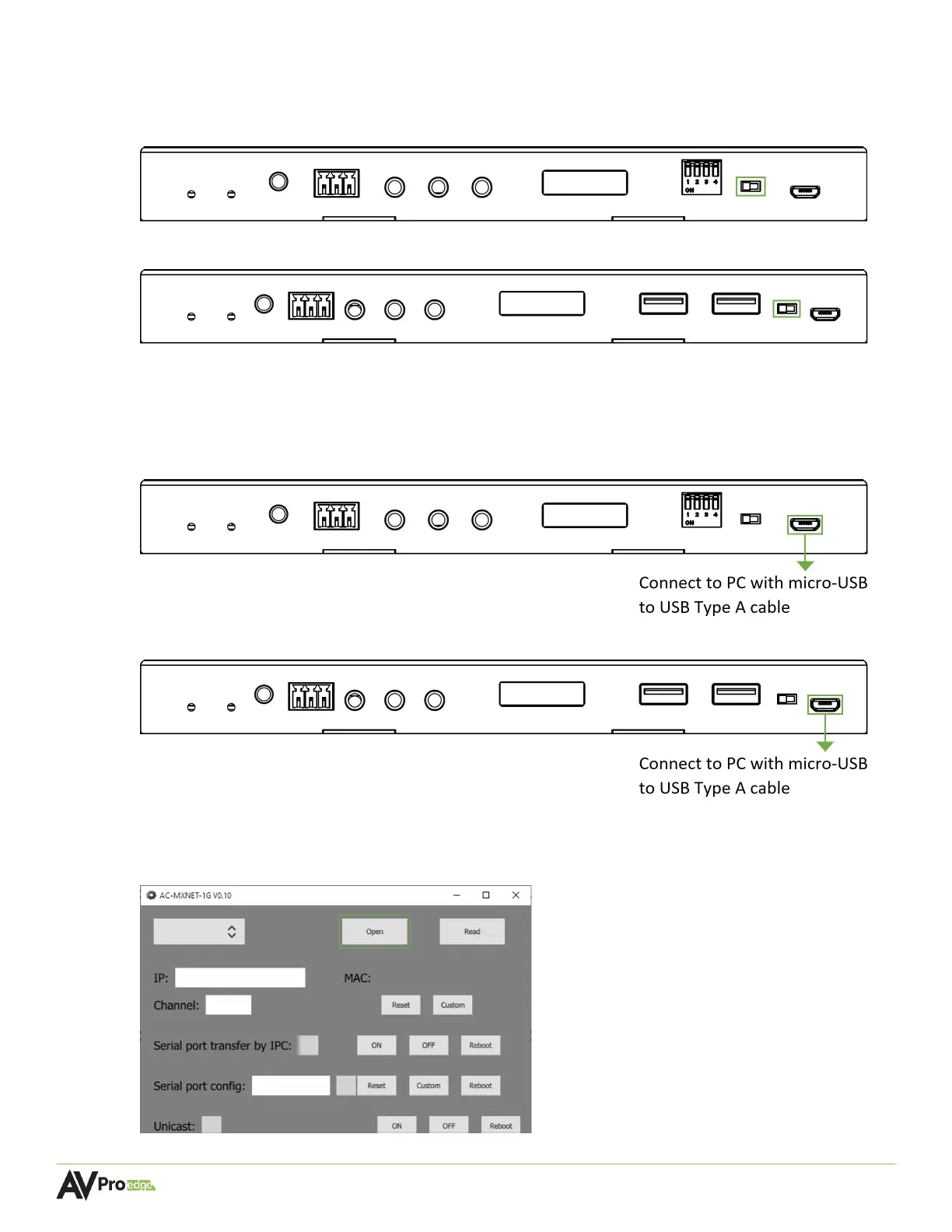

1. On both the encoder and decoder, flip the USB SELECT toggle switch to the FPGA DEBUG
setting.
AC-MXNET-1G-E encoder
AC-MXNET-1G-D decoder
2. Connect the micro-USB to USB Type A cable between the encoder or decoder and PC.
AC-MXNET-1G-E encoder
AC-MXNET-1G-D decoder
3. Open the Serial Configuration Software Tool AC-MXNET-1G-SCT and select the Open button to
open the PC serial port.
