● Connect the yield signal switch wire to the bus yield switch. (See Figure 10).
● If the Control Console power cable used is the one shown in Section 6.3.1, the
power signal supplied by the yield switch must be a ground signal (GND).
● If the Control Console power cable used is the one shown in Sections 6.3.2 and
6.3.3, the power signal supplied by the yield switch must be a 9-36 Vdc signal.
● The yield switch is supplied and installed by the bus manufacturer.
● If the cable used includes J1708-type connectors and/or RS-232-type connectors,
contact the Customer Service of Axion Technologies Ltd., to get more information on
how to connect these two connectors.
User Manual (Revision A) Document No.: 3042145 Page 11

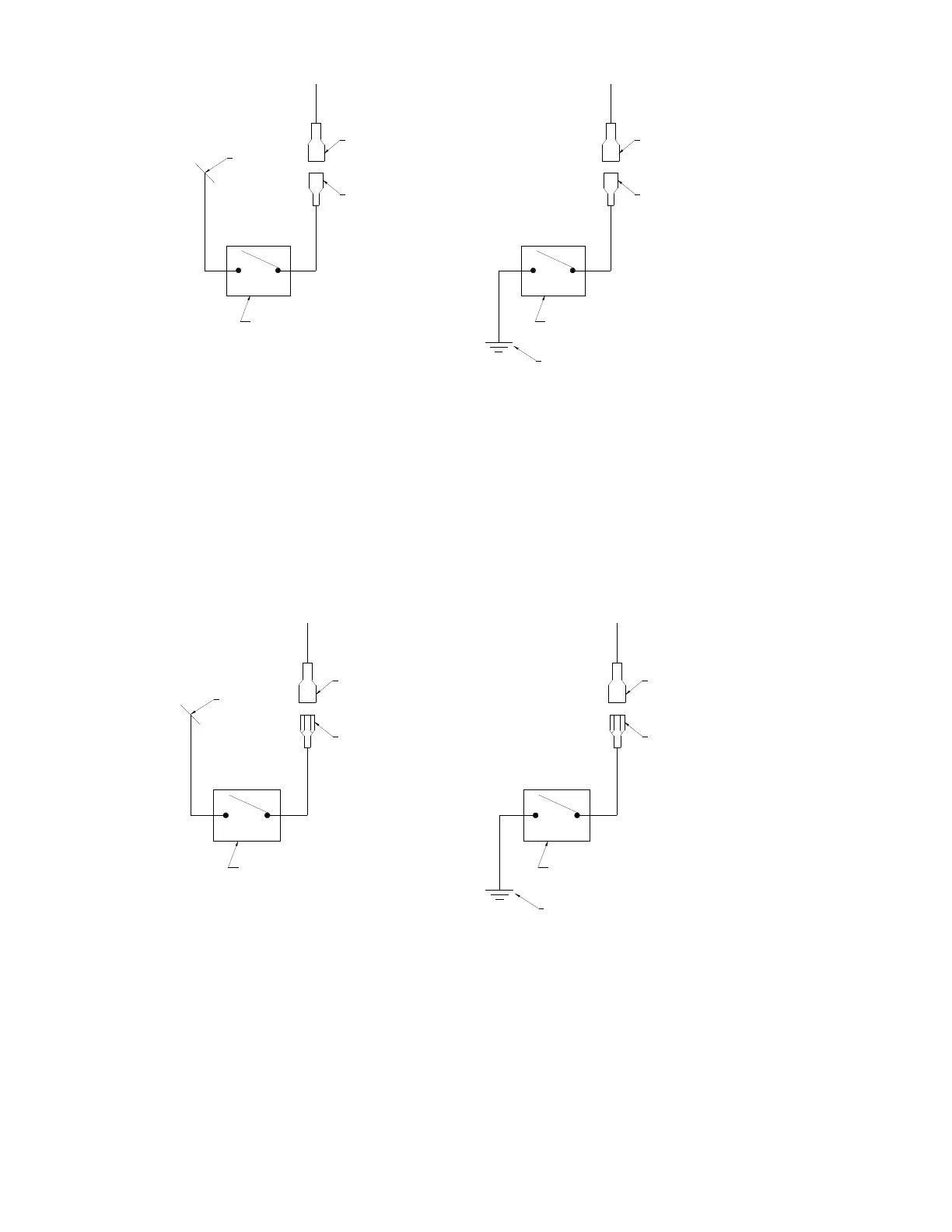

Figure 4: Distress Switch Connection
"PANDUIT" (DNF18-250FIB)
EMERGENCY SWITCH
CONTROL CONSOLE CABLE
QUICK CONNECT TERMINAL
INTERRUPTEUR D'URGENCE
EMERGENCY SWITCH
"PANDUIT" (DNF18-250FIB)
QUICK CONNECT TERMINAL
TERMINAL "QUICK CONNECT"
CABLE CONSOLE DE COMMANDE
CONTROL CONSOLE CABLE
MISE A LA TERRE DE L'AUTOBUS
BUS GROUND
TERMINAL "QUICK CONNECT"
INTERRUPTEUR D'URGENCE
CABLE CONSOLE DE COMMANDE
24 VOLTS
Figure 5: Yield Switch Connection
"PANDUIT" (DNF18-250FIM)
YIELD SWITCH
CONTROL CONSOLE CABLE
QUICK CONNECT TERMINAL
INTERRUPTEUR CÉDEZ
YIELD SWITCH
"PANDUIT" (DNF18-250FIM)
QUICK CONNECT TERMINAL
TERMINAL "QUICK CONNECT"
CABLE CONSOLE DE COMMANDE
CONTROL CONSOLE CABLE
MISE A LA TERRE DE L'AUTOBUS
BUS GROUND
TERMINAL "QUICK CONNECT"
INTERRUPTEUR CÉDEZ
CABLE CONSOLE DE COMMANDE
24 VOLTS
