2.2.5. THE 802.11 b/g Wi-Fi MODULE ANTENNA CABLE FOR CONTROL CONSOLE

If the control consoel has a 802.11 b/g Wi-Fi module, secure the antenna cable to the SMA-

type antenna connector (SMA female) on the back plate of the console.

2.2.6. THE 802.11 b/g/n Wi-Fi MODULE ANTENNA CABLE FOR OSCP

If the OSCP has a 802.11 b/g/n Wi-Fi module, secure the antenna cable to the SMA-type

antenna connector (SMA female) on the back plate of the console. Torque must be between

1 and 1.2 Nm.

User Manual (Revision A) Document No.: 3042145 Page 15

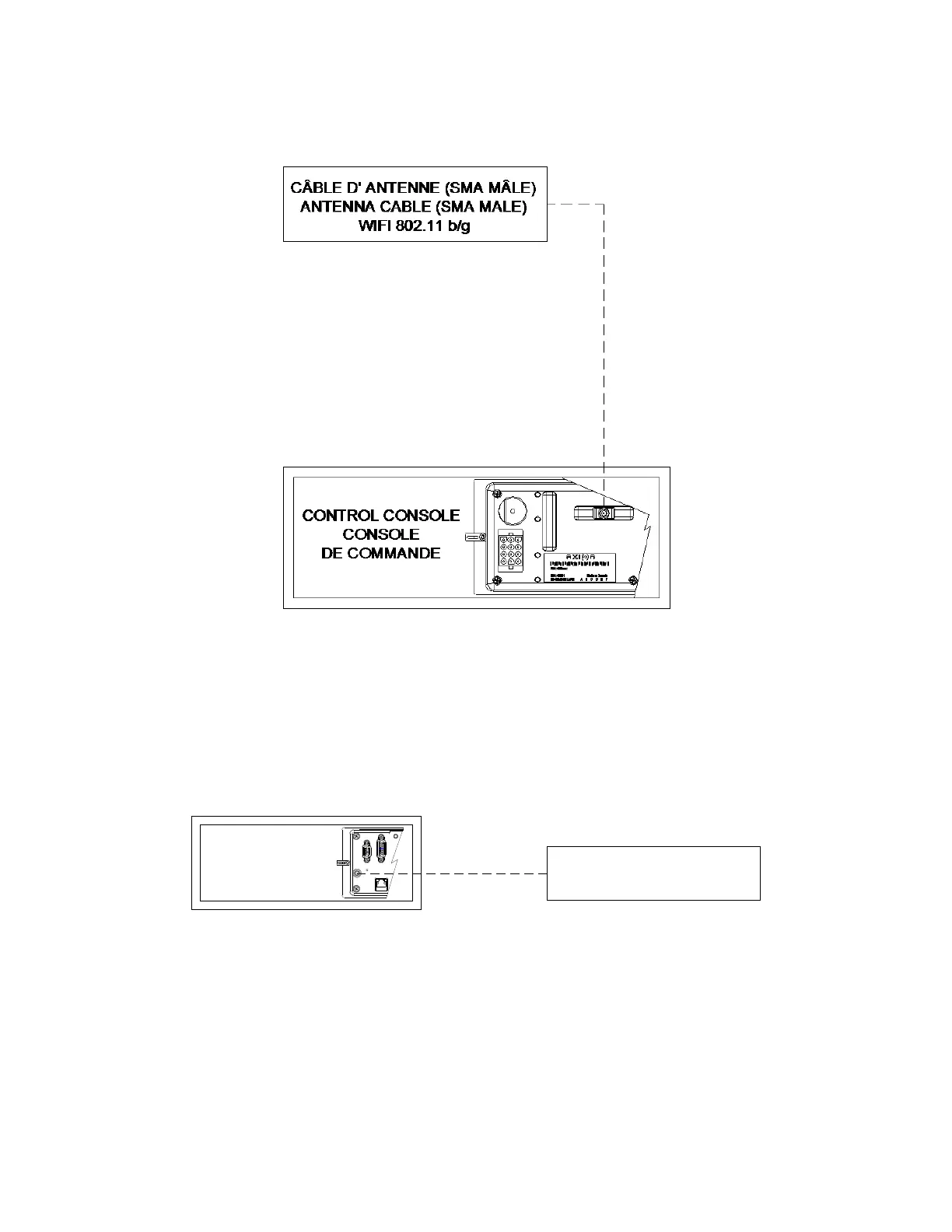

Figure 10: Control Console: Wi-Fi Module - Antenna Cable Connection

Figure 11: OSCP: Wi-Fi Module - Antenna Cable Connection

ANTENNA CABLE (SMA MALE)

CÂBLE D' ANTENNE (SMA MÂLE)

WIFI 802.11 b/g

CONTROL UNIT

UNITÉ DE CONTROLE

OSCP
