TROUBLESHOOTING
5.4.3.
LED-DRVR-PS-C
PU BOA
RD
LEDs
User Manual (Revision
A)
Document No.: 3042145
Page 59
DS1201
GREEN
LED
LIT = FUNCTIONAL 2.8 Vdc SUPPLY
UNLIT = NON-FUNCTIONAL 2.8 Vdc SUPPLY
DS1202
GREEN
LED
LIT = FUNCTIONAL 5 Vdc SUPPLY
UNLIT = NON-FUNCTIONAL 5 Vdc SUPPLY
DS1203
RED LED
FLASHING: NON-FUNCTIONAL CPU
UNLIT: FUNCTIONAL CPU

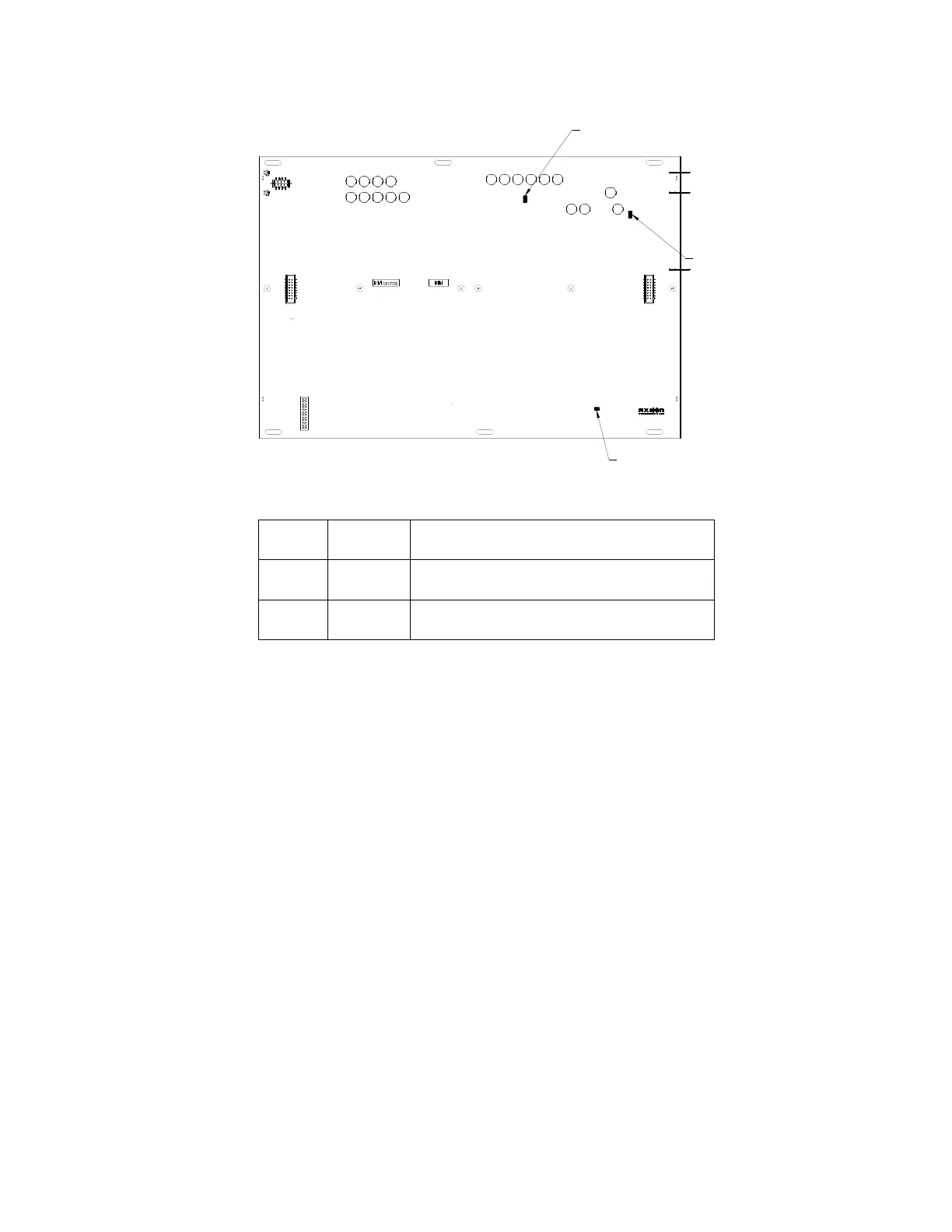

Figure 40: LED-DRVR-
PS-CPU Board LEDs
DS1203
DS1202
DS1201
69
