2.2.7. CURB SIDE SIGN POWER CABLE

The Curb Side Sign power cable connects the sign to the Front Sign junction. The power

cable connects as follows:

● Connect the power cable (5-pin connector) to the CURB SIDE SIGN connector (5-

pin connector) located on the Back Plate of the Front Destination Sign.

(See Figure 12)

● Connect power cable (4-pin connector) to the Curb Side Sign connector.

User Manual (Revision A) Document No.: 3042145 Page 16

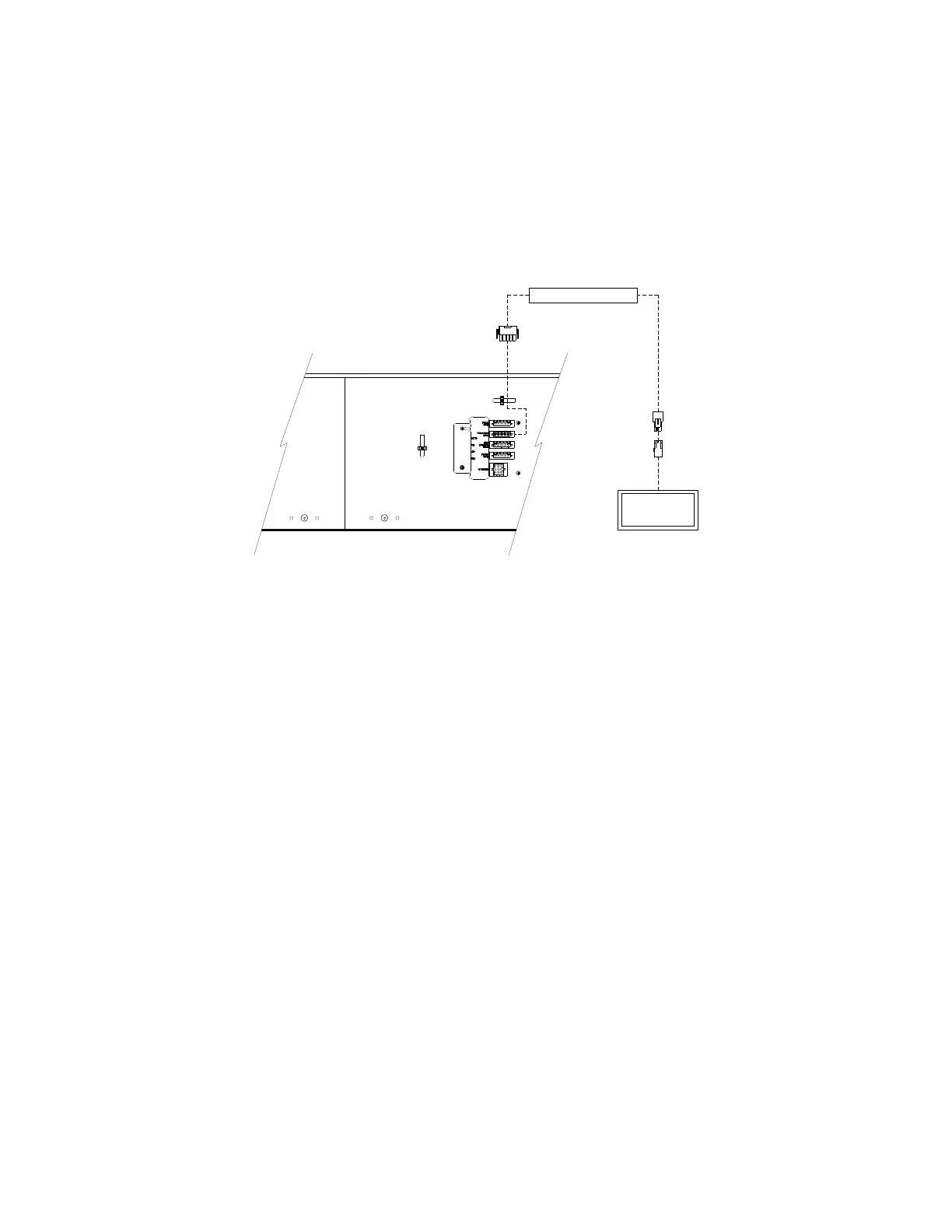

Figure 12: Curb Side Sign Cable Connection

CURB SIDE SIGN

AFFICHEUR CÔTÉ

TROTTOIR

CURB SIDE SIGN POWER CABLE

CÂBLE D' ALIM. AFF. CÔTÉ TROTTOIR

FRONT SIGN RIGHT BACK PLATE

PLAQUE DE DROITE AFFICHEUR AVANT
