2.2.8. ROUTE SIDE SIGN POWER CABLE

The Route Side Sign power cable connects the sign to the Front Sign junction. The power

cable connects as follows:

● Connect the power cable (5-pin connector) to the ROUTE SIDE SIGN connector (5-

pin connector) located on the Back Plate of the Front Destination Sign

(See Figure 13).

● Connect the power cable (4-pin connector) to the Route Side Sign connector.

User Manual (Revision A) Document No.: 3042145 Page 17

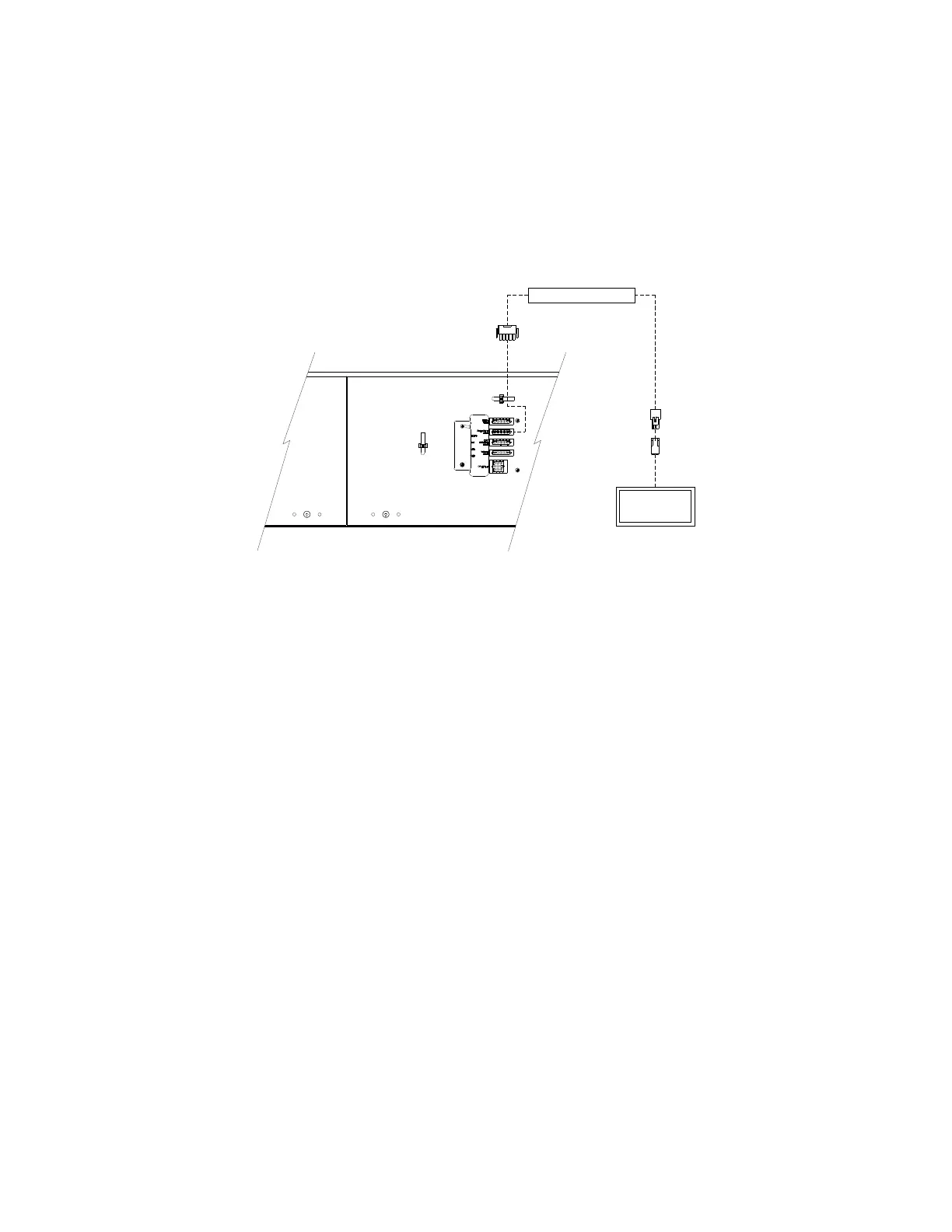

Figure 13: Route Side Sign Cable Connection

FRONT SIGN RIGHT BACK PLATE

PLAQUE DE DROITE AFFICHEUR AVANT

ROUTE SIDE SIGN POWER CABLE

CÂBLE D' ALIM. AFF. CÔTÉ CHAUSSÉE

ROUTE SIDE SIGN

AFFICHEUR CÔTÉ

CHAUSSÉE
