Axion 40 Series User Manual

© AXION TECHNOLOGIES LTD. OPERATION
4. EDSS OPERATION
The operation of the EDSS is very simple. This section presents the various available
functions of the EDSS.
4.1. CONTROL UNITS
4.1.1. USE OF THE CONTROL CONSOLE
4.1.1.1. INTRODUCTION TO THE USER INTERFACE
Management of EDSS is performed through the Control Unit user interface. The following
figure and table show the Control Console user interface and the definitions of its keypad.
No. Description No. Description
1 Control Console 9 DEST B programming key
2 Keyboard 10 Scroll up arrow / Scroll down arrow keys
3 PTU programming connector 11 MENUS key
4 2.0 USB connector 12 KEY NUMBER key
5 Status LED 13 PUBLIC MESSAGE key
6 Liquid Crystal Display (LCD) 14 Last entry delete key (ERASE)
7 "Backlight" key 15 Numeric and alphanumeric keys (0-9, A-H)
8 DEST A programming key 16 ENTER key
Table 2: User Interface Definition
User Manual (Revision A) Document No.: 3042145 Page 27

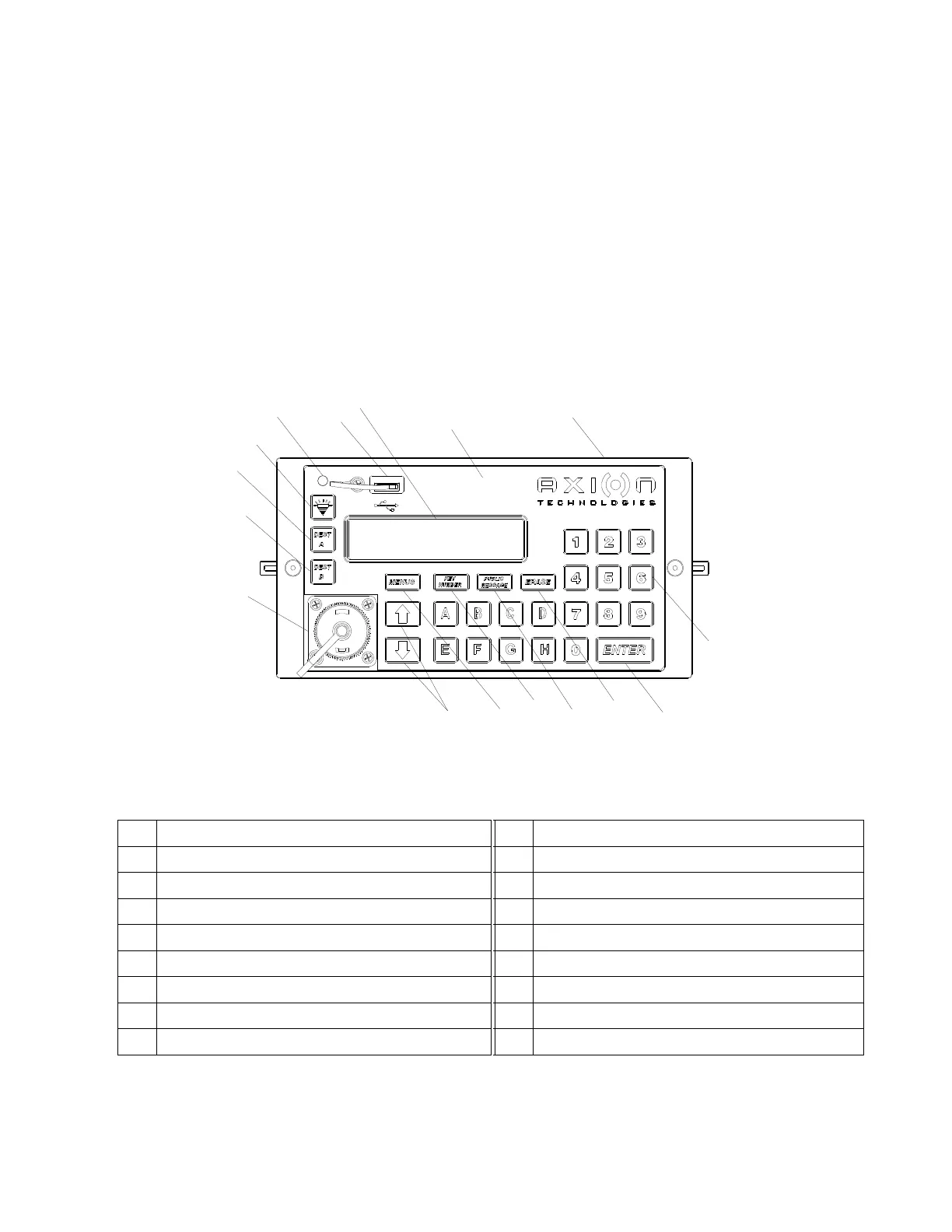

Figure 19: Keypad Definition
8
3
9
5
7
6
14
12
11
13
15
16
2
1
4
10
