© AXION TECHNOLOGIES LTD. OPERATION
4.1.1.2. STARTUP OF THE CONTROL CONSOLE
At startup, the Control Console displays different messages allowing the user to validate the
Control Console configuration. The first message to be displayed is the company name
followed by the number of the option chosen at the time you bought your Control Console.
This number must match the number at the back of the Control Console and/or the number of
the option chosen at the time of purchase. Otherwise, contact Axion Technologies Ltd.,
Customer Service.
The second message to be displayed is the sign network configuration programmed in the
Control Console.
The Control Console must be configured properly to have an operational EDSS. The Control
Console is delivered pre-configured. To verify that the configuration corresponds to that of
your signs system, look carefully at the LCD on your Control Console to see if the
configuration displayed at power-up corresponds to that installed on the vehicle.

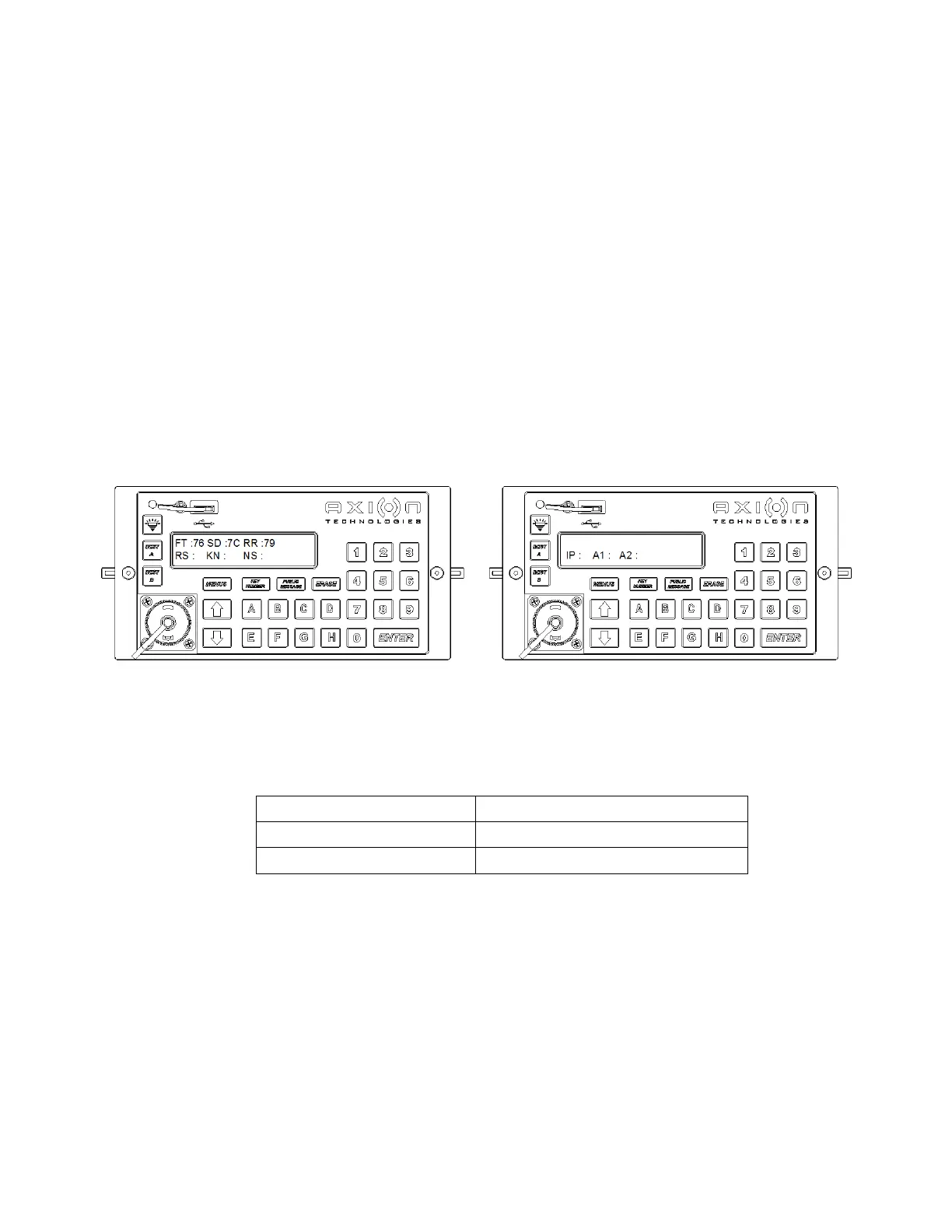

The following figure shows an example of configuration displayed on the LCD.
The above example corresponds to the following configuration:
FT :76 Front Sign (FT) 16x160, 1-LED
SD :7C Curb Side Sign (SD) 8x96, 1-LED
RR :79 Rear Sign (RR) 16x48, 1-LED
If there are no IP, A1 or A2 signs, the second figure does not display at startup.
Refer to Section 7.1 to find the sign identification codes.
If the displayed configuration matches the one installed on the bus, the EDSS is ready to
operate. Otherwise, you must reconfigure the Console. Refer to Section 4.1.1.9 for specific
instructions.
User Manual (Revision A) Document No.: 3042145 Page 28
Figure 20: Example of Network Configuration
