7. REFERENCE TABLES

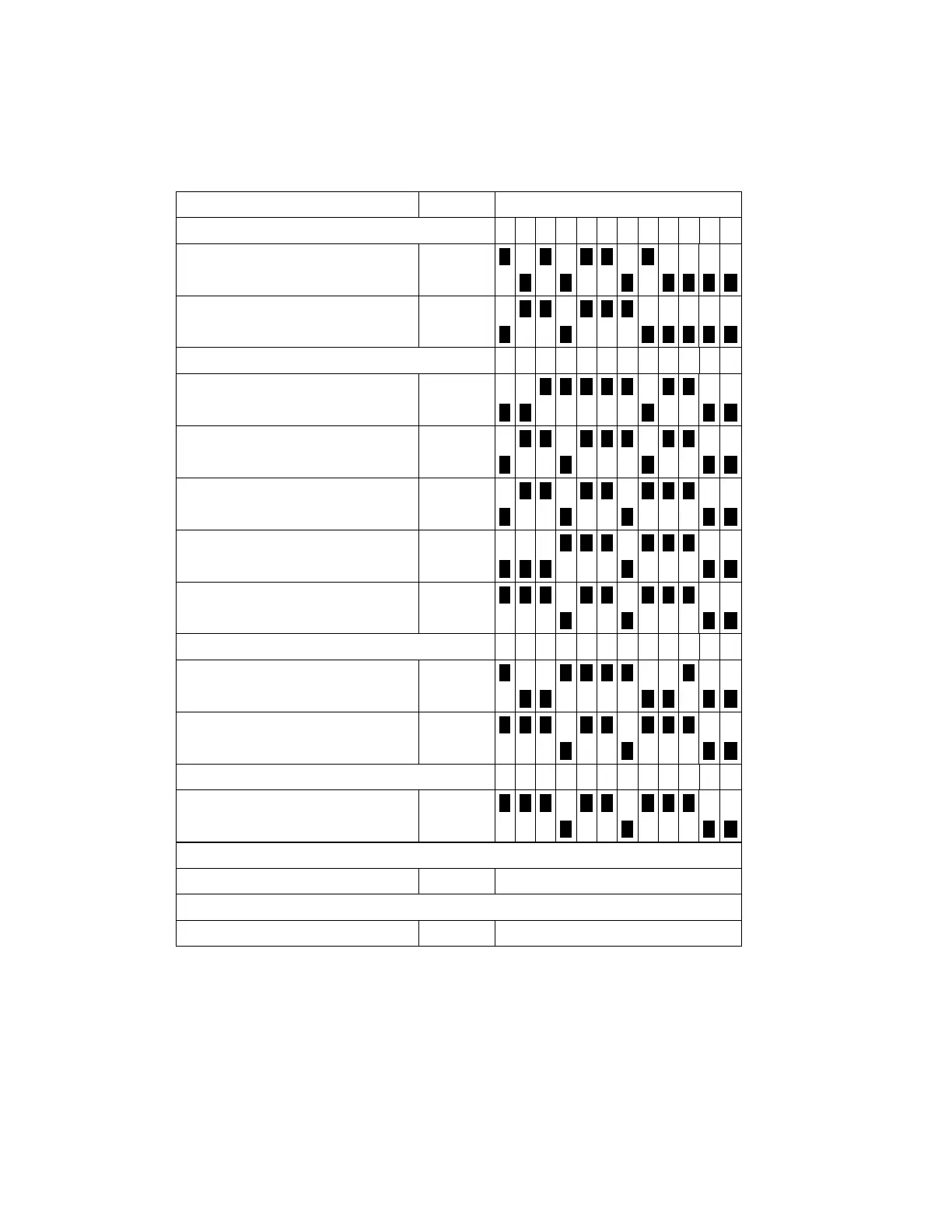

7.1. SIGN IDENTIFICATION CODES

Serial Number Sign ID CPU DIP SWITCH SETTINGS

FRONT SIGN

1 2 3 4 5 6 7 8 9 10 11 12

FRONT 24 X 200 B5

FRONT 16 X 160 76

CURB SIDE SIGN

1 2 3 4 5 6 7 8 9 10 11 12

SIDE 8 X 96 7C

SIDE 16 X 160 76

SIDE 16 X 120 B6

SIDE 16 X 80 B8

SIDE 16 X 40 B7

REAR SIGN

1 2 3 4 5 6 7 8 9 10 11 12

REAR 16 X 48 79

REAR 16 X 40 B7

KEY NUMBER SIGN

1 2 3 4 5 6 7 8 9 10 11 12

KEY NUMBER 16 X 40 B7

CONTROL CONSOLE

All signs 6C N/A

OSCP

All signs C5 N/A

Table 4: Sign Identification Code
