Axion 40 Series User Manual

© AXION TECHNOLOGIES LTD. INSTALLATION
2.5. OSCP POST-INSTALLATION FUNCTIONALITY TEST
This section presents the steps to validate the proper operation of the EDSS fit with the
OSCP. The following paragraphs present the steps to follow.
2.5.1. STEP 1: SIGNS SYSTEM STARTUP
This section presents the steps to validate the proper operation of the signs system fit with
the OSCP. Following paragraphs present the detailed steps.
The following window automatically displays:
Test mode automatically runs and allows to display a sequence of messages on the signs to
validate proper operation. The sequence is as follows:
● Alternating squares on and off;
● Alternating lines on and off (one line every four lines);
● Axion's logo;
User Manual (Revision A) Document No.: 3042145 Page 21

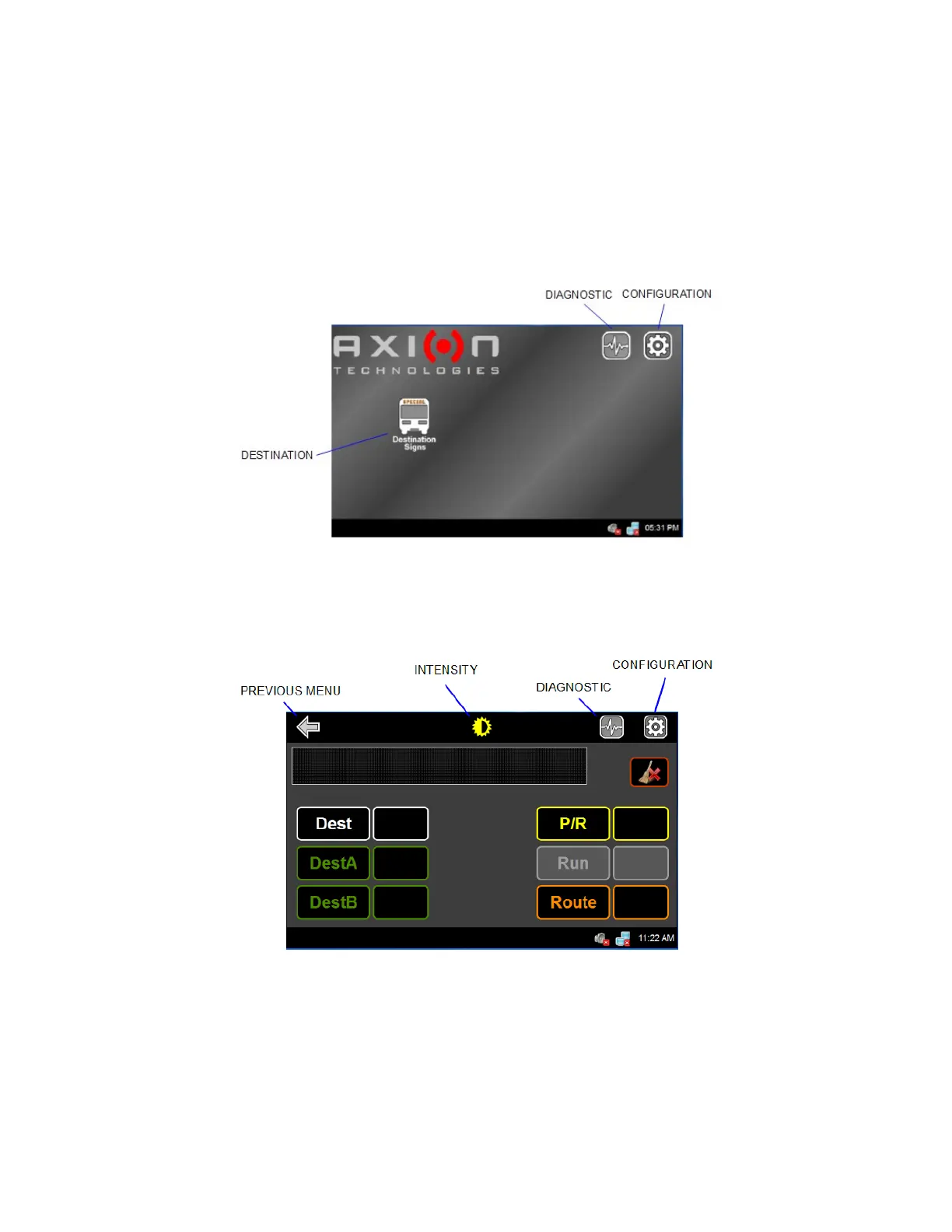

Figure 16: OSCP Startup
Figure 17: Message Management
