© AXION TECHNOLOGIES LTD. OPERATION
4.1.1.3. ENTERING A ROUTE
● Consult your Transit Authority code list.
● Using the alphanumeric keyboard of the Control Console, select and enter the code
for the route to be displayed.
● Press ENTER to validate your choice.
When the route is entered, the Control Console LCD displays the following information:
● Route number is displayed in the upper left corner of the LCD.
● Route content (message) is displayed on the second line of the LCD. If this is a
multiline route, the lines display alternately depending on the time interval set at
database programming.
NOTE
Verify that all of the Signs display the correct information.
User Manual (Revision A) Document No.: 3042145 Page 29

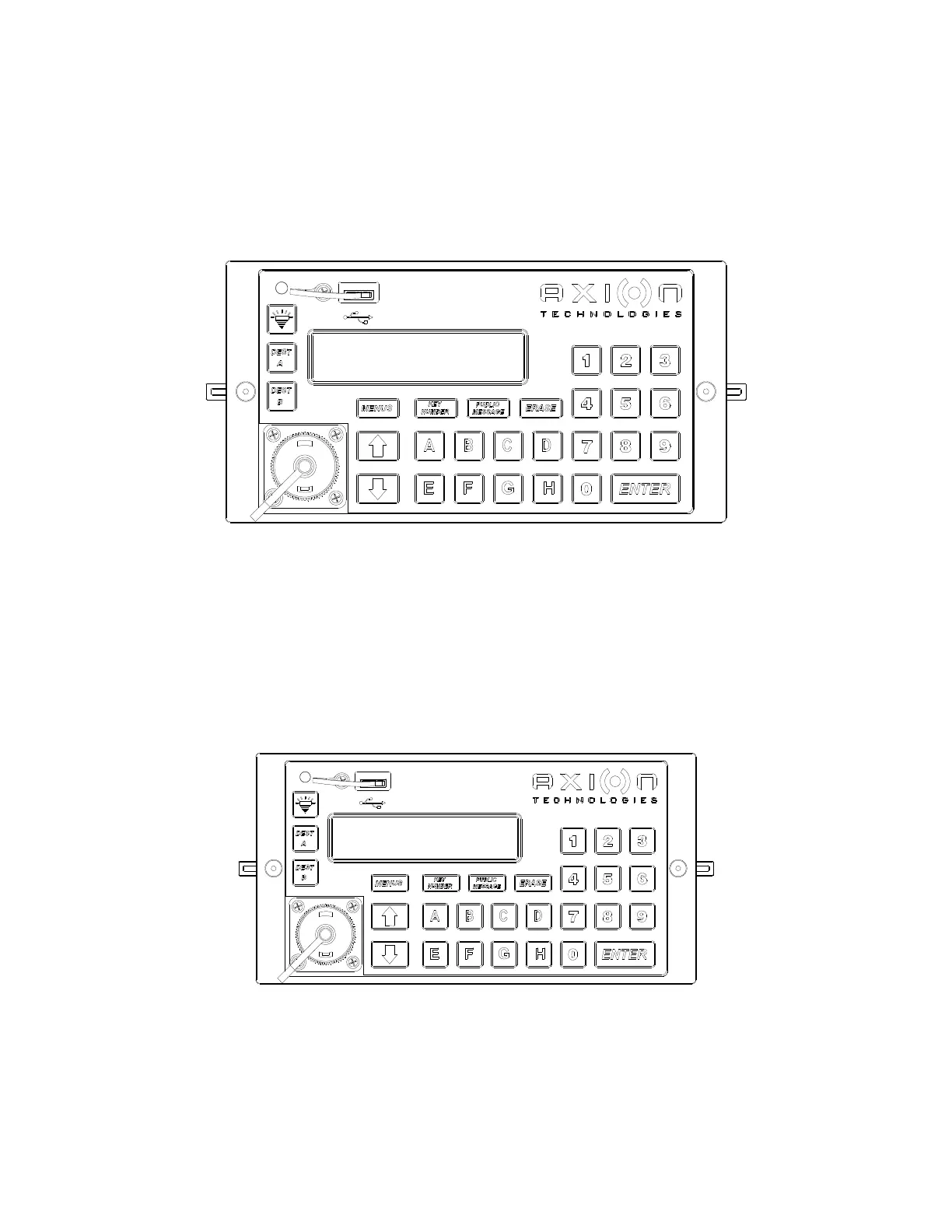

Figure 21: Entering a Route (Example)
ENTER 1234
DESTINATION NUMBER
Figure 22: Route Display on the LCD (Example)
To Next Page
