7.3 ICMP communication ports
Location of the communication ports

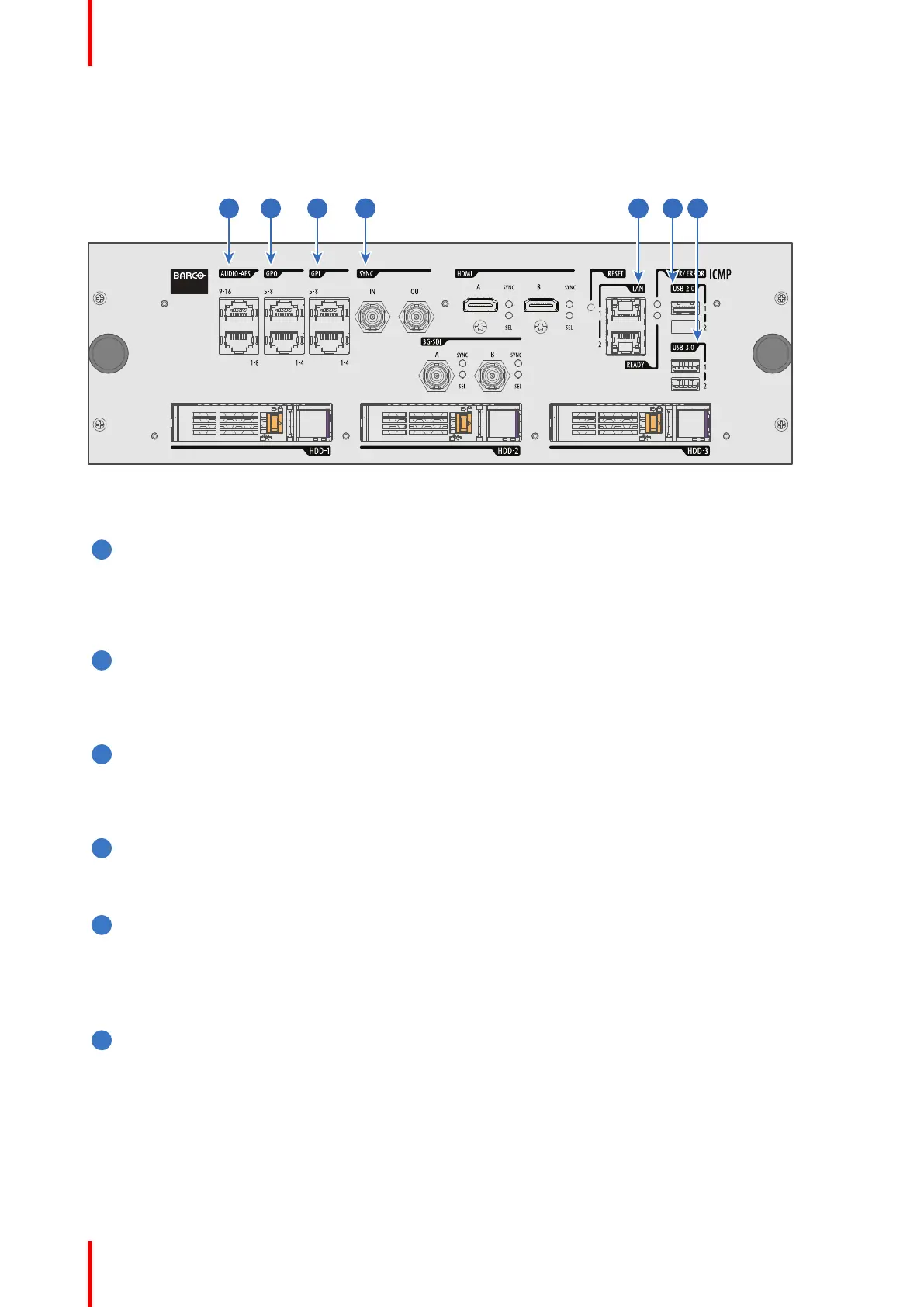

Image 7-7: ICMP (with HDMI 2.0).
Functionality
AUDIO-AES 1-8 (9-16)
ICMP outputs sixteen audio signals equitably distributed over these two RJ45 connectors, which can be
configured independently. The mapping of audio channels (content) on each audio output (AES outputs
of the ICMP) is performed by configuring the ICMP via the Communicator software. Please refer to the
Communicator user guide for further information.
GPO 1-4 (5-8)
These RJ45 connectors can be used to send trigger signals to other devices. The mapping of user Cues
(output Cues) on each General Purpose Output (GPO) is configured via the Communicator software.
Please refer to the Communicator user guide for further information.
GPI 1-4 (5-8)
These RJ45 connectors can be used to receive trigger signals from other devices. The mapping of the
General Purpose Input (GPI) on each input Cues is configured via the Communicator software. Please
refer to the Communicator user guide for further information.
SYNC IN / OUT
Synchronization signal IN and OUT: Reserved for multiple-projector projection. Use a 50 Ohm coaxial
cable to connect the sync signal from projector to projector.
LAN 1 (2)
The ICMP can be connected to a LAN (local area network) using one of the Ethernet ports. These LAN
port are used for ‘content’ transfer.
NOTE: These ports are optionally used to connect to external content storage sources. Control of the
ICMP is done via the same IP address as the projector.
USB 2.0
The ICMP can be connected to a USB 2.0 Media to load content. The USB port can be used to load
content (DCP) or keys (KDM).
NOTE: It is recommended to use the USB 3.0 ports for faster ingest.
