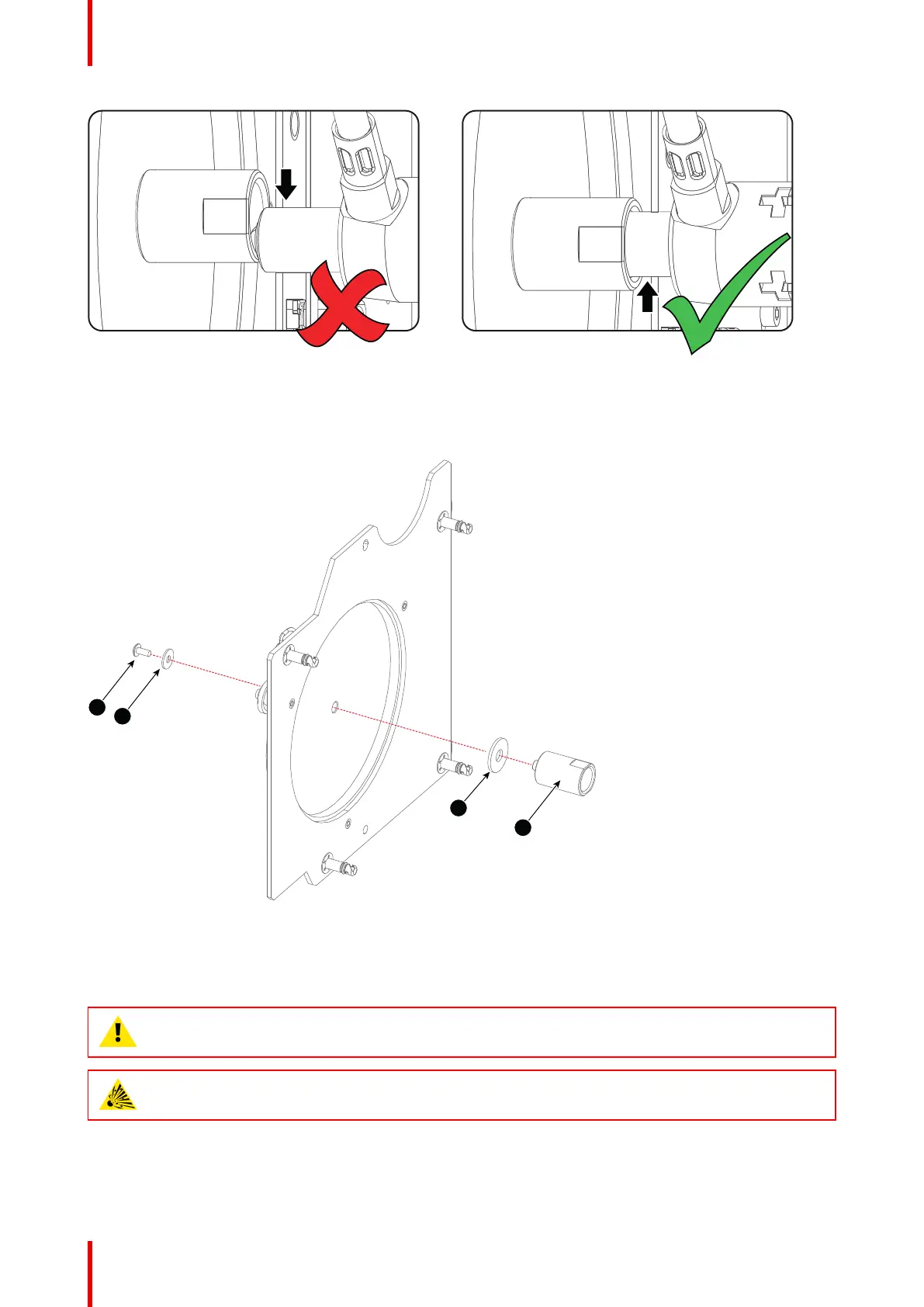

3. In case the anode pin drops out the anode support place a plain washer (reference 3) between the UV blocker
and anode support (reference 4). Use a 2.5mm Allen wrench to loosen/fasten the screw (reference 1) of the
anode support. Use a 19mm open-end wrench to capture the anode support.
Image 4-29
4.7 Installation of the Lamp House
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot or cold states if
improperly handled.
Required tools
10mm nut driver or flat screw driver.
Lamp & Lamp House
To Next Page
