3.4 Power input setup of the DPxK-32B
About the power input
The projector power input can be configured for a power supply of 230/400V 3W+N+PE (Υ-connection) or for
208V 3W+PE (Δ-connection). Before operating the projector, place the links in the correct position depending
on the local power supply.
For a 3W+N+PE system, 400V is measured between the lines, 230V is measured between the lines and the
neutral.
For a 3W+PE system, 208V is measured between the lines.
A B

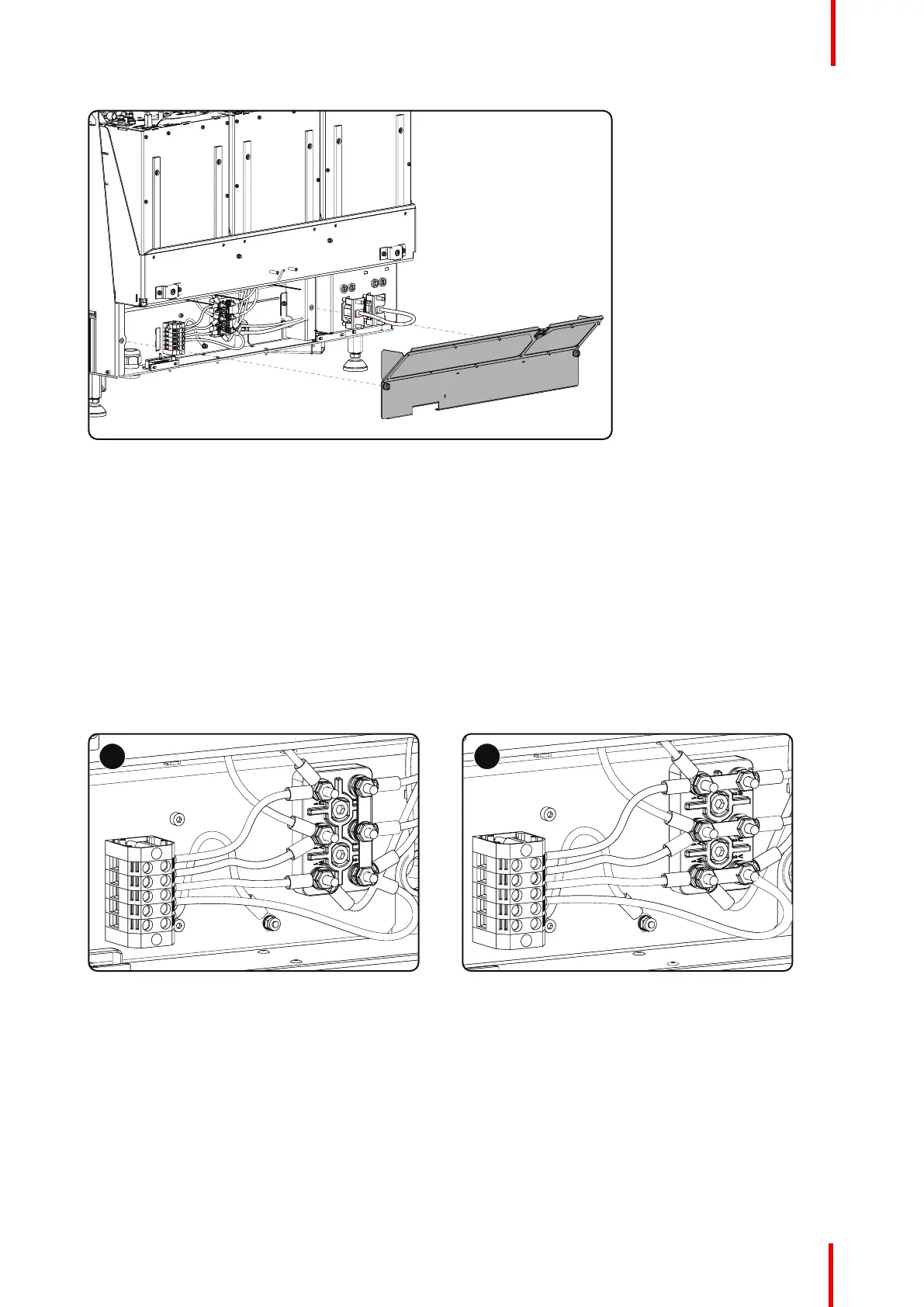

Image 3-9: Υ-Δ connection
A Υ connection
B Δ connection
Required tools
• Flat screw driver
• Wrench 10 mm
• Torque wrench 10 mm
Physical installation
