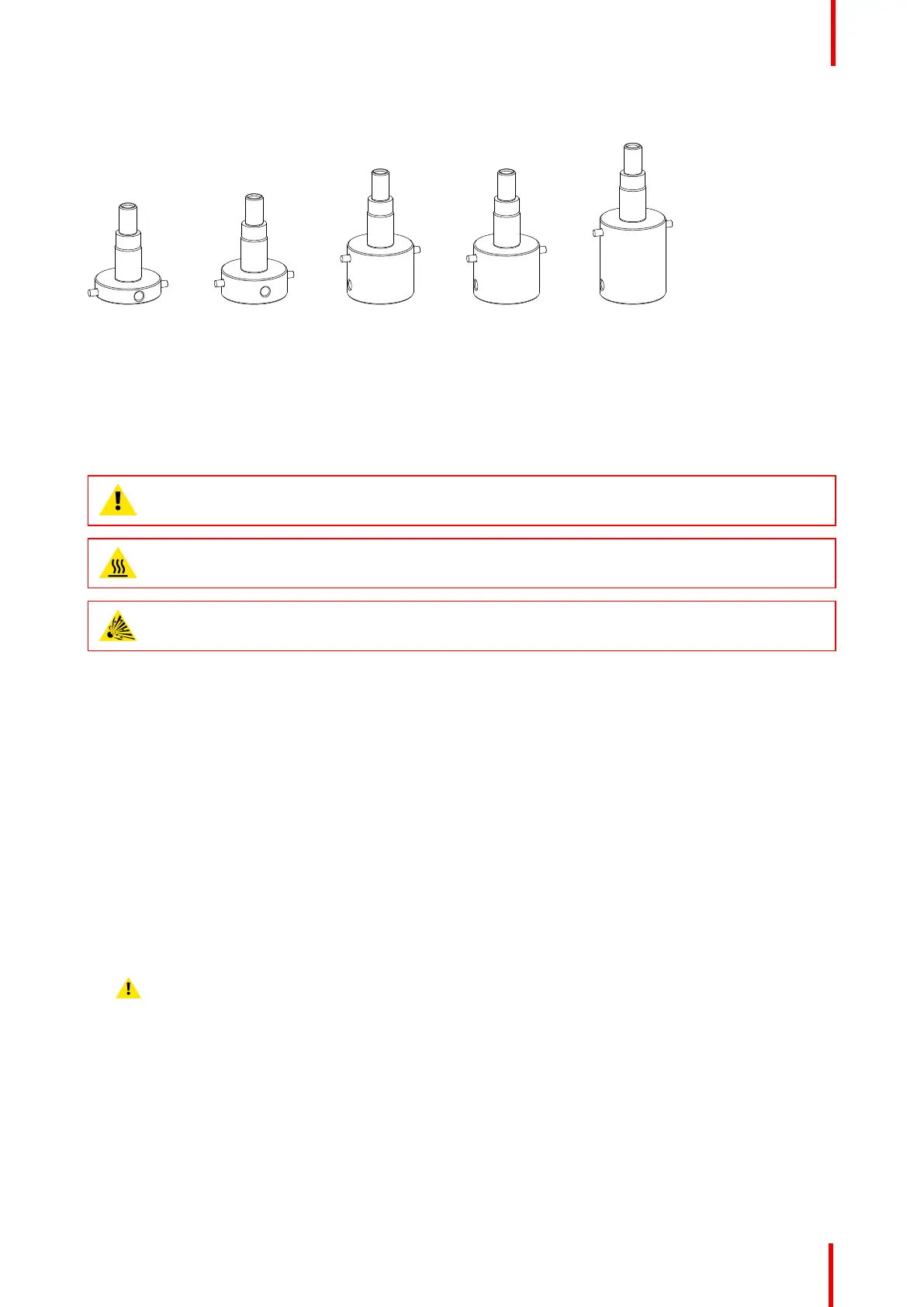

Cathode adapters for manual Lamp House
R8436081KR8436101K R8436111KR859984K R8436061K
Image 4-5
The shortest cathode adapter R8436101K is no longer needed for xenon lamps supported by Barco. For that
this adapter has become obsolete.
4.3 Removal of the Lamp House
WARNING: This procedure may only be performed by qualified technical service personnel.
WARNING: The Lamp House is very hot after operation. To avoid burns, let the projector cool down
for at least 15 minutes before proceeding to remove the Lamp House.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot or cold states if
improperly handled.
Required tools
10mm nut driver or flat screw driver.
How to remove the Lamp House from the projector?
1. Make sure the projector is switched off and cooled down.
2. Remove the cover of the Lamp House compartment.
3. Release the two retaining screws (reference 1 Image 4-6) at the base of the Lamp House. Use a 10mm nut
driver or a flat screw driver.
4. Remove the Lamp House as follows:
1. Grip the Lamp House by the bottom handle and partially slide it out of the lamp compartment
2. Grip the Lamp House by both handles and remove it completely from the projector.
3. Place the Lamp House on a stable support.
Caution: Be aware of the weight of the lamp assembly. Take the necessary precautions to avoid
personal injury.
