10.8 Installation of the lamp cover
Required tools
Flat screwdriver
How to install
1. Place the top side of the cover on its place.

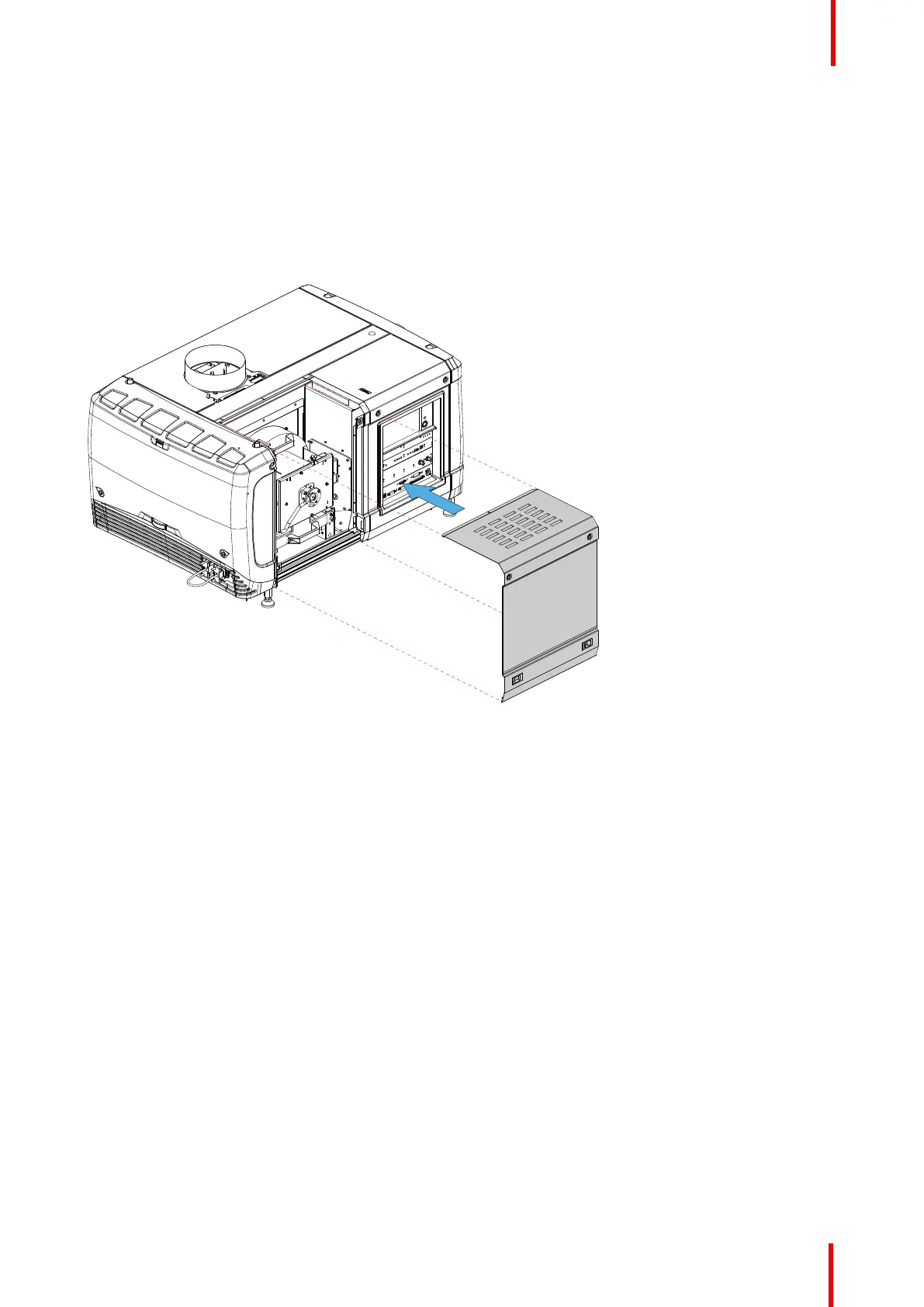

Image 10-17: Mount lamp cover
Close the cover as follow:
1. Gently move the bottom side of the cover towards the projector
2. Push both lock to each other and push at the same time the cover against the projector frame.
3. Release both locks so that they lock in their receivers.
2. Secure the cover by fasting both captive screws.
Removal and installation of the projector covers
