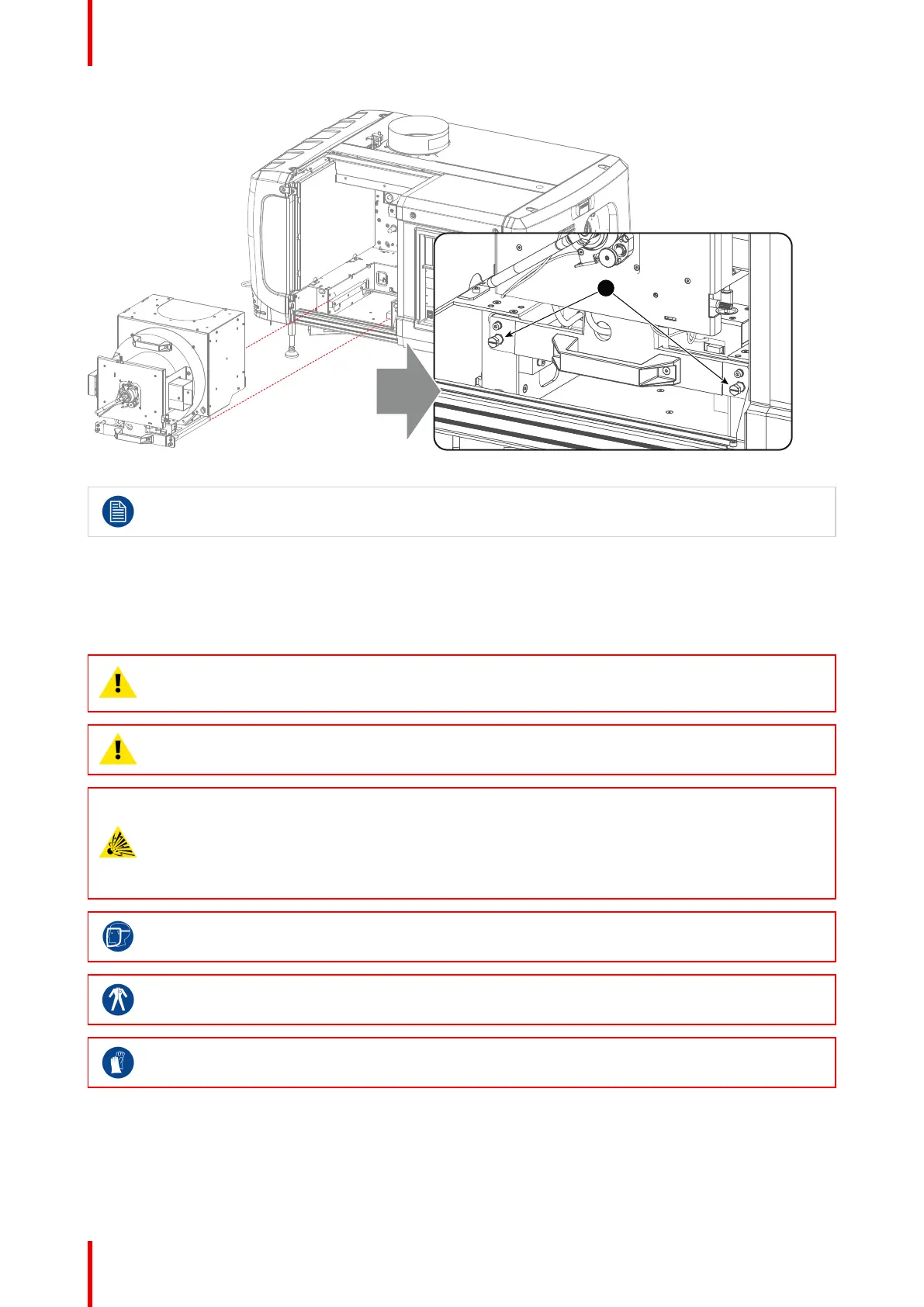

This procedure is illustrated with a Motorized Lamp House. Nevertheless, the instructions are also
applicable for the manual Lamp House.
4.4 Removal of the xenon lamp from manual XL
Lamp House
WARNING: DO NOT PERMIT UNAUTHORIZED PERSONNEL TO PERFORM OR ATTEMPT ANY
PHASE OF XENON LAMP HANDLING OR SERVICE. ONLY TRAINED AND QUALIFIED
TECHNICAL SERVICE PERSONNEL ARE ALLOWED TO HANDLE THE XENON LAMP.
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Xenon compact arc lamps are highly pressurized. When ignited, the normal operating
temperature of the bulb increases the pressure to a level at which the bulb may explode if not
handled in strict accordance to the manufacturer's instructions. The bulb is stable at room
temperature, but may still explode if dropped or otherwise mishandled. Whenever the lamp house,
containing a xenon lamp, has to be dismantled or whenever the protective container or cloth has to
be removed from the xenon lamp, authorized protective clothing MUST be worn!
WARNING: Always wear face protection (full face shield) when handling xenon lamps.
WARNING: Always wear protective clothing (welder's jacket) when handling xenon lamps.
WARNING: Always wear clean leather gloves with wrist protectors when handling xenon lamps.
Required tools
• Two open-end wrenches of 22mm.
• 5mm Allen wrench.
• Lamp protective container or protective cloth with two binders.
Lamp & Lamp House
