6.1 Introduction
General
The Input & Communication side of the DPxK-32B consists of a Local Keypad and a card cage with four slots.
The rear side of the projector is equipped with a tail light which reflects the status of the projector.
Depending on the projector configuration the projector card cage is equipped with an ICP or ICMP. See
illustration below. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally
inserted into the slot below the ICP. Note that all information about the ICMP is gathered into one separated
chapter called ICMP.
1
5
4
1
3
2
4

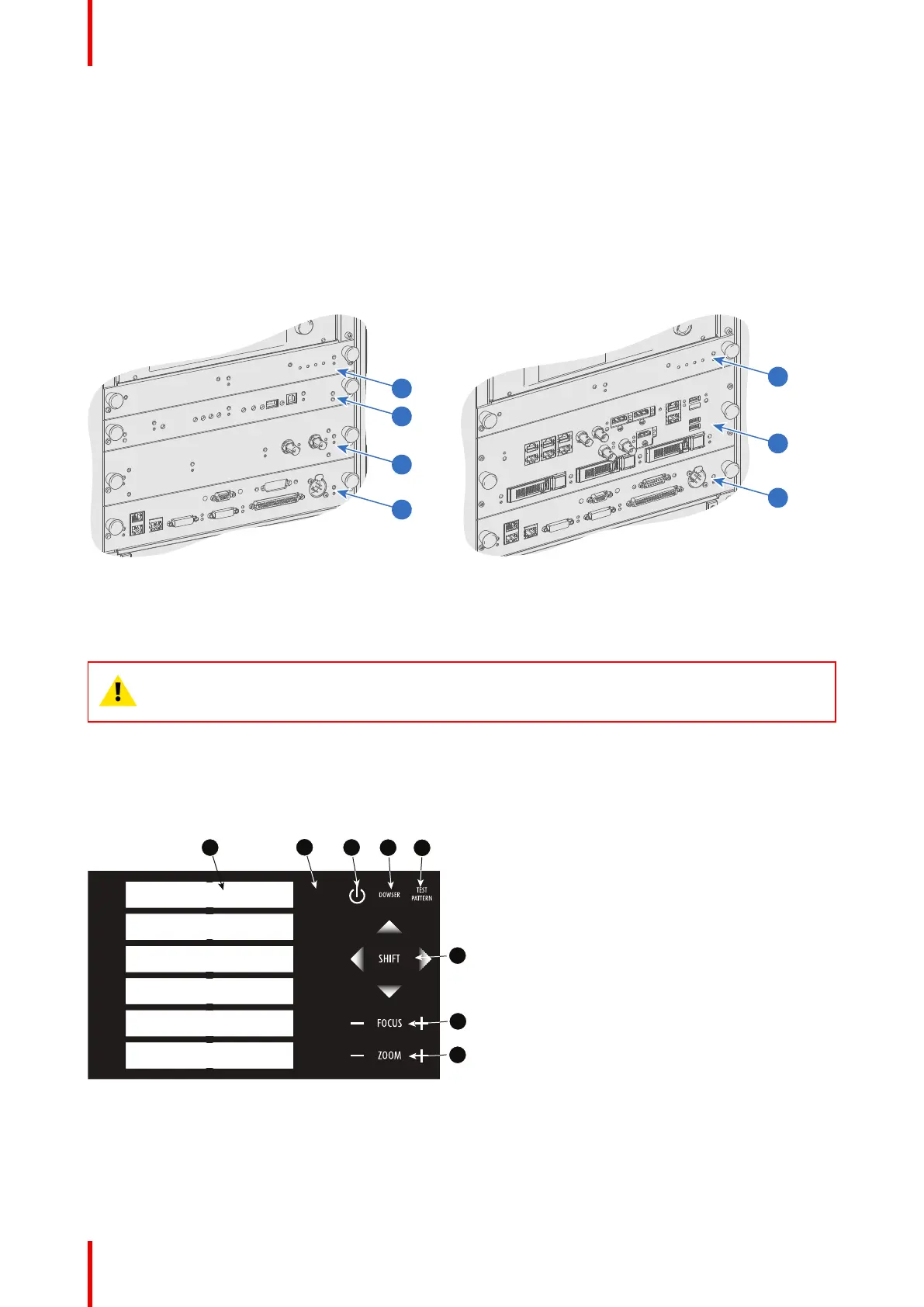

Image 6-1
1 Fan Control Board (FCB).
2 Integrated Cinema Processor (ICP).
3 Optional slot for either IMB, IMS or HD-SDI input
module.
4 Barco Cinema Controller.
5 Barco ICMP (inserted in ICP slot and optional
slot).
CAUTION: A unit may only be removed from the card cage by qualified service personnel.
Removing one of the boards (except for the Cinema Controller) will result in an authorization
request upon starting.
6.2 Local keypad of the DPxK-32B
Identification of the keys
1
2
3
4
5
6
2
1
3
4
5
6
7
8
Image 6-2: Local keypad
1 Marker area for macro name
2 Numeric keyboard
3 Standby key
4 Dowser open/close switch
