R5905754 /13 DPxK-32B160
Converging the RED pattern onto the BLUE pattern
Start with aligning the RED DMD in the vertical directions [1] and [2] and then proceed with the
horizontal direction [3]
1. To translate RED vertically in the Y + direction, turn both [1] and [2] clockwise. Turn screws in equal
increments.
2. To translate RED vertically in the Y - direction, turn both [1] and [2] anti-clockwise. Turn screws in equal
increments.
3. To translate RED horizontally in the X + direction, turn [3] clockwise.
4. To translate RED horizontally in the X - direction, turn [3] anti-clockwise.
5. For clockwise rotations of RED, turning [1] anti-clockwise would generally suffice. If much rotation is required,
[2] may also be turned in the opposite direction. Slight corrections to Y may be required after rotation.
6. For anti-clockwise rotations of RED, turning [1] clockwise would generally suffice. If much rotation is required,
[2] may also be turned in the opposite direction. Slight corrections to Y may be required after rotation.

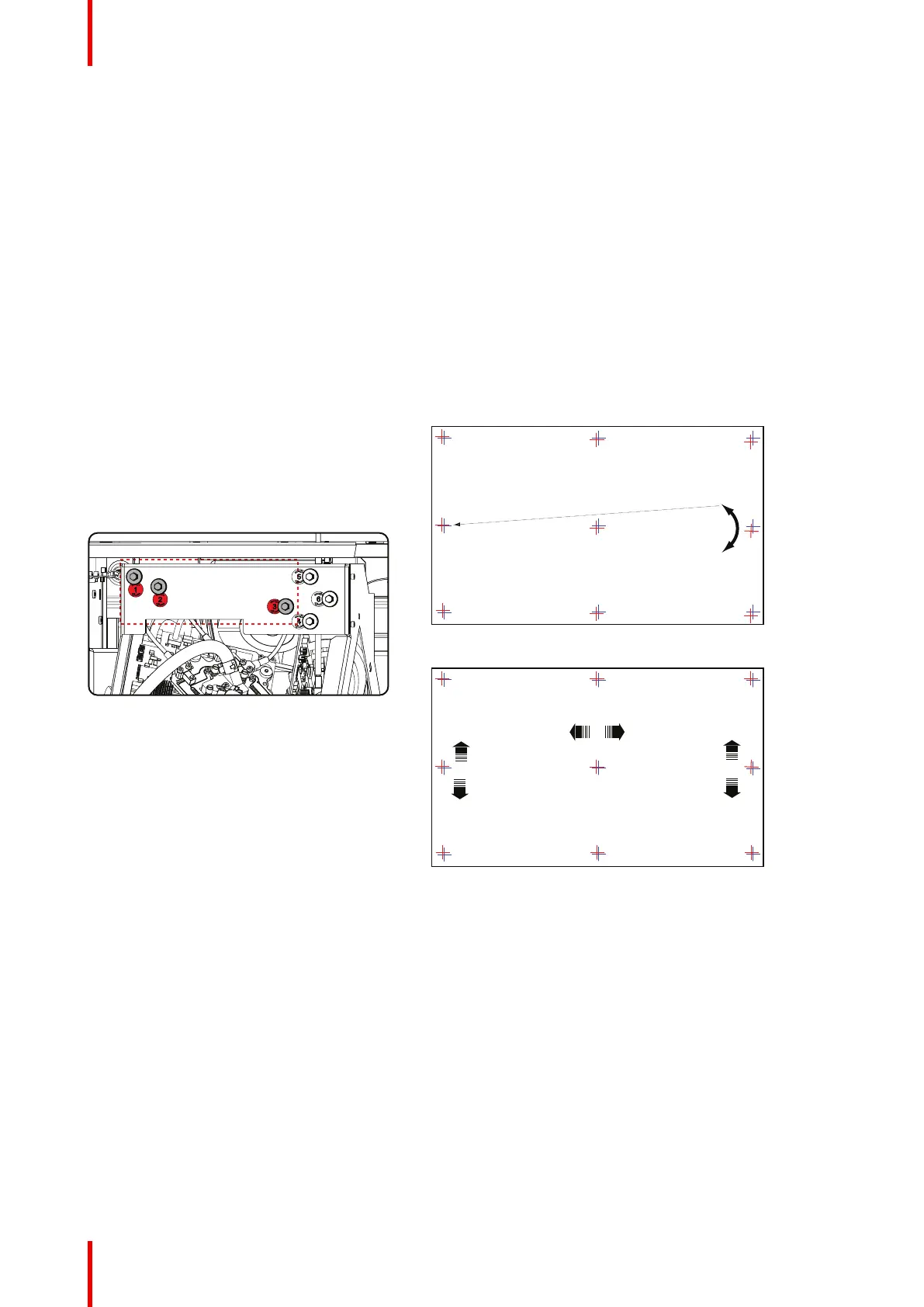

Image 12-7: Red on blue convergence
12.5 Green on blue convergence
Required tools
No tools required.
Converging the GREEN pattern onto the BLUE pattern
Next , align the GREEN DMD in the vertical directions [4] and [5] and then proceed with the horizontal
direction [6].
1. To translate GREEN vertically in the Y + direction, turn both [4] and [5] clockwise. Turn screws in equal
increments.
2. To translate GREEN vertically in the Y - direction, turn both [4] and [5] anti-clockwise. Turn screws in equal
increments.
