Barco DP K-32B Series User Manual

R5905754 /13 DPxK-32B 175
Pin Name
4 +24V
5 GND
3D connector
Pin Name Pin Name
1 +12V 9 +12V
2 Grnd 10 3D Input Reference -
3 Grnd 11 3D Display Reference +
4 RS232 RX 12 3D Display Reference -
5 RS232 TX 13 CONN_3D MODE -
6 CONN_3D_MODE + 14 CONN_SYNC -
7 CONN_SYNC + 15 -
8 3D Input Reference +
B.3 Pin configurations of the ICMP communication
ports

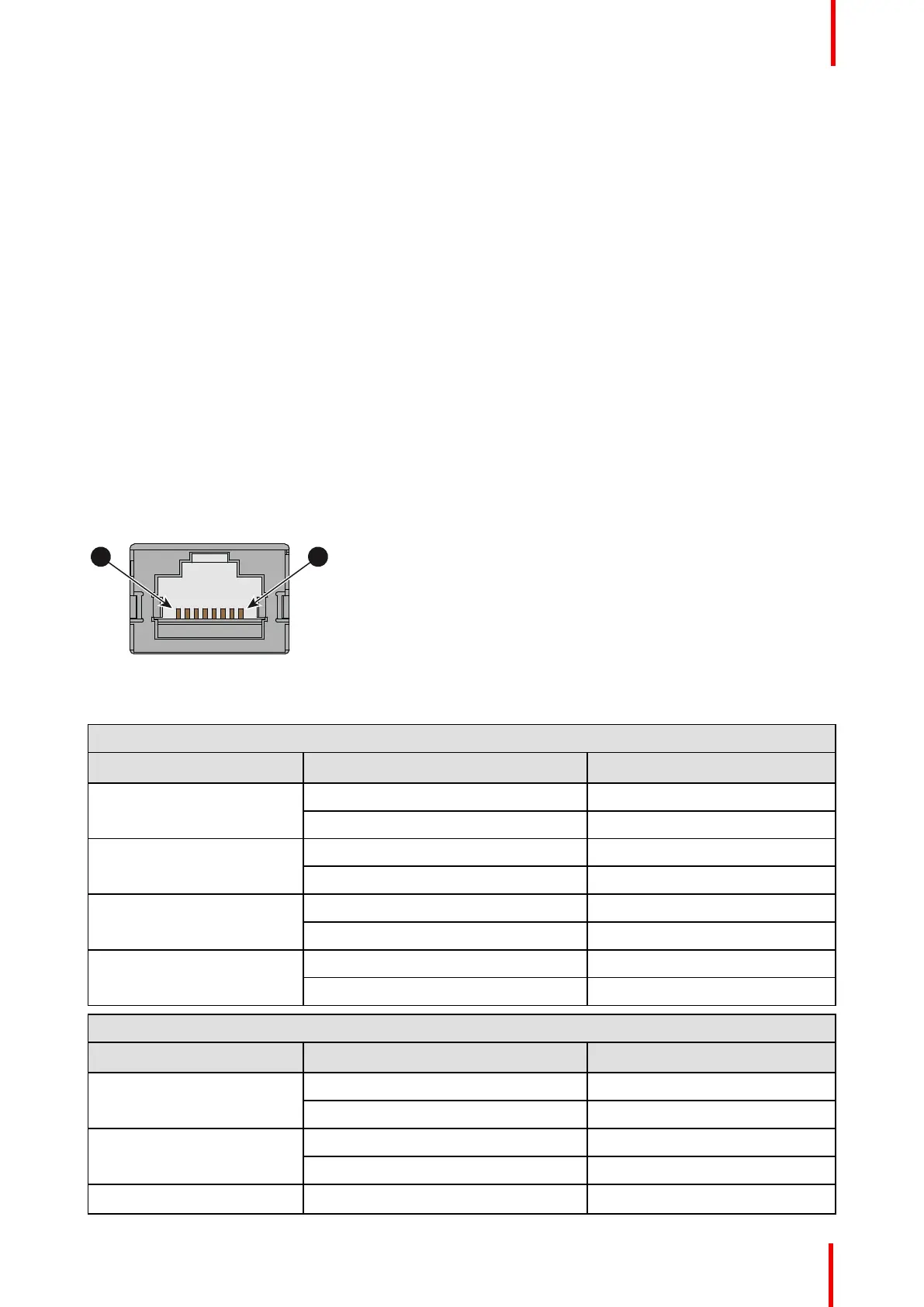

RJ-45 pin configuration
P1P8
Image B-3
Audio Channels:
AUDIO-AES 1-8
Audio channel
AES pair RJ-45 pin
1, 2 1 + 1
1 - 2
3, 4 2 + 3
2 - 6
5, 6 3 + 4
3 - 5
7, 8 4 + 7
4 - 8
AUDIO-AES 9-16
Audio channel
AES pair RJ-45 pin
9, 10 5 + 1
5 - 2
11, 12 6 + 3
6 - 6
13, 14 7 + 4
Pin configurations
