Barco DP K-32B Series - Removal of the Input Cover

R5905754 /13 DPxK-32B 135
1
1
2
2

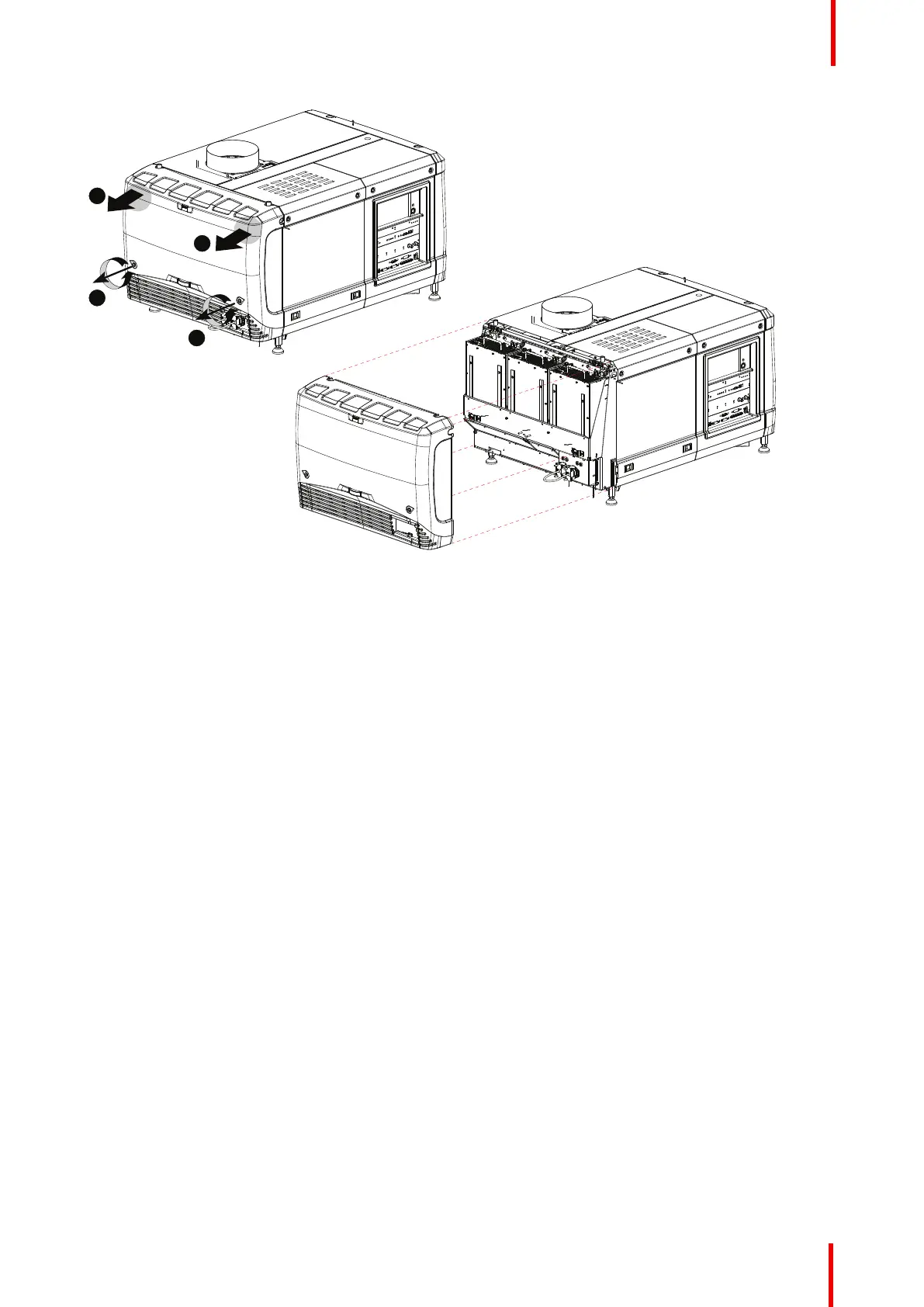

Image 10-5: Rear housing removal
2. Remove the rear cover of the projector doing the following:
1. gently pull out the top covers of the rear cover (2).
2. then move the rear cover away from the projector.
10.3 Removal of the input cover
Required tools
Flat screwdriver
How to remove
1. Release both captive screws at the top of the input cover using a flat screw driver.
Removal and installation of the projector covers
