Barco DP K-32B Series - Power Loop through to the Projector Electronics

R5905754 /13 DPxK-32B32
Warning: Always connect first the PE wire.
3W+N+PE
3W + PE
L1
L2
L3
N
PE
L
1
L2
L3
PE

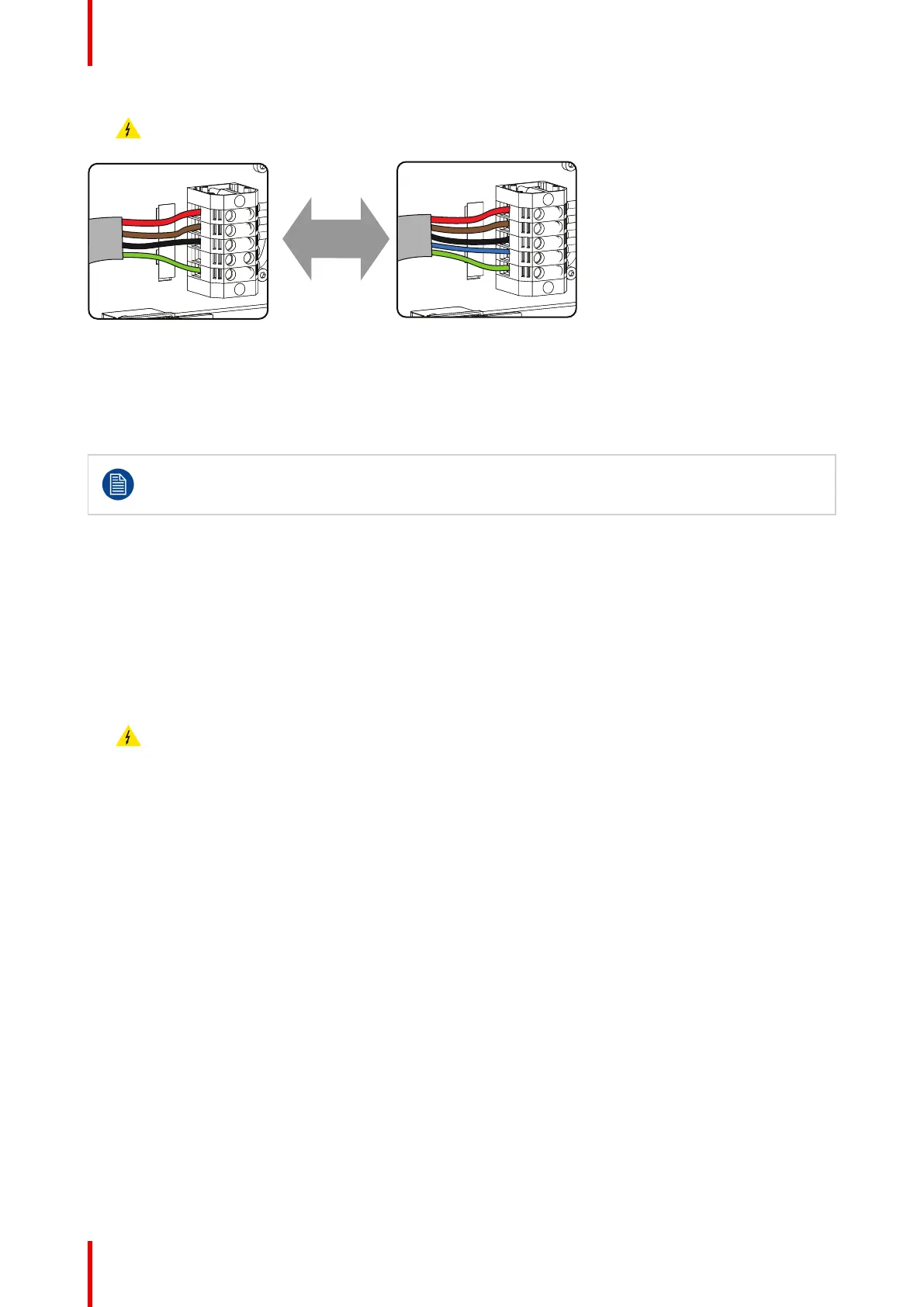

Image 3-13: Terminal connections
6. Reinstall the power connection cover.
3.6 Power loop through to the projector electronics
This procedure explains how to provide the projector electronics with power in case no UPS unit is
used. Note that the projector is by default configured for use without UPS. So, the short power link
cable is already installed.
Required tools
No tools required.
Required parts
Short power link cable with plug type C13/C14
How to loop through the power
1. Plug in the short power cable (1) which was delivered with the projector.
Warning: Always use the Barco short power cable which is delivered with the projector.
Physical installation
