12.1 Open the sealed compartment
This procedure assumes that the side cover of the projector is already removed.
CAUTION: This procedure may only be done by a qualified and trained service technician.
Required tools
3 mm Allen wrench
How to open the sealed compartment
1. Remove both hexagon head cap screws (1).

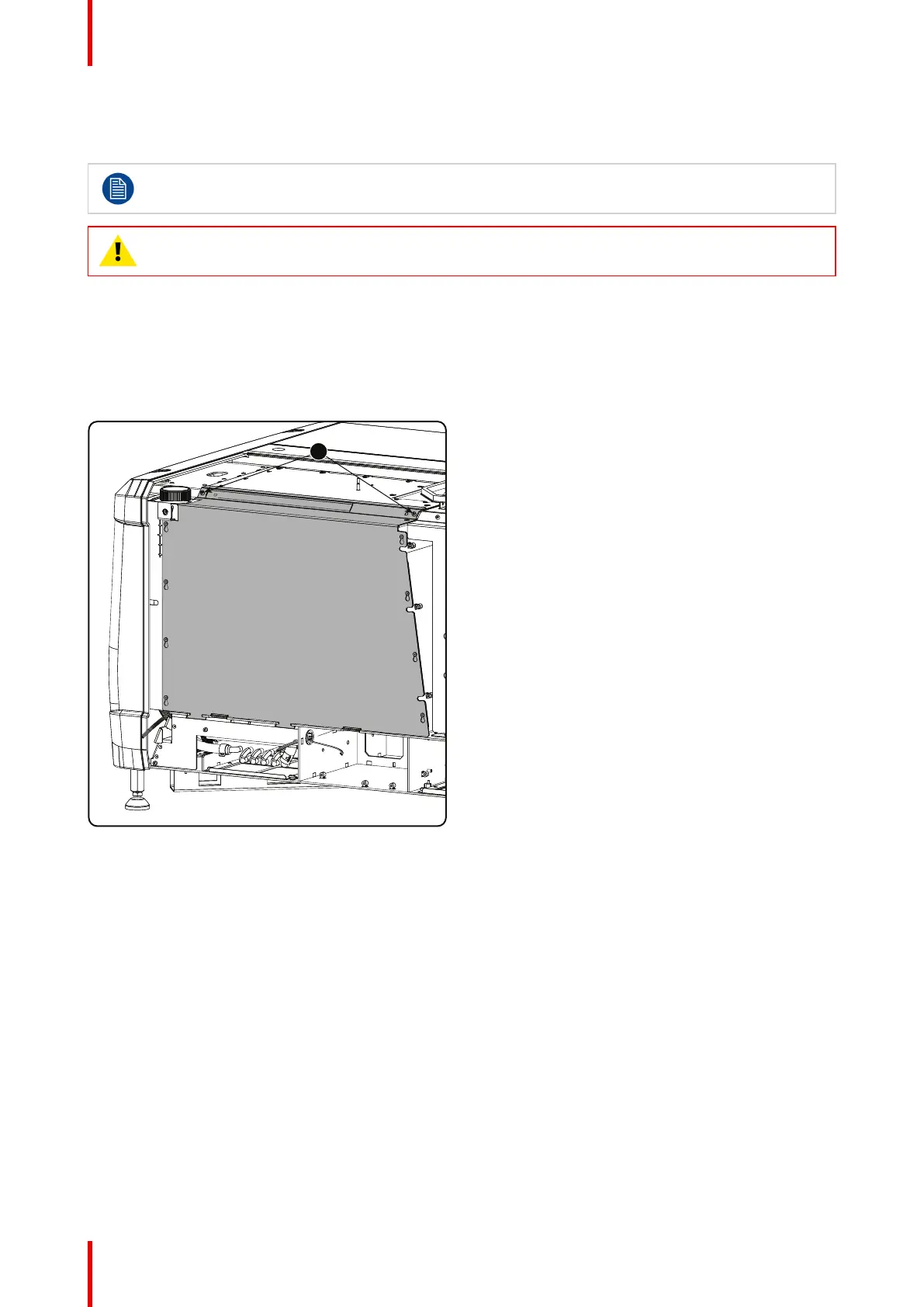

Image 12-1: Sealed cover fixation
2. Lift up the cover plate slightly using both lower lips (2) and then remove the cover by taking it away from the
projector.
