R5905754 /13 DPxK-32B98

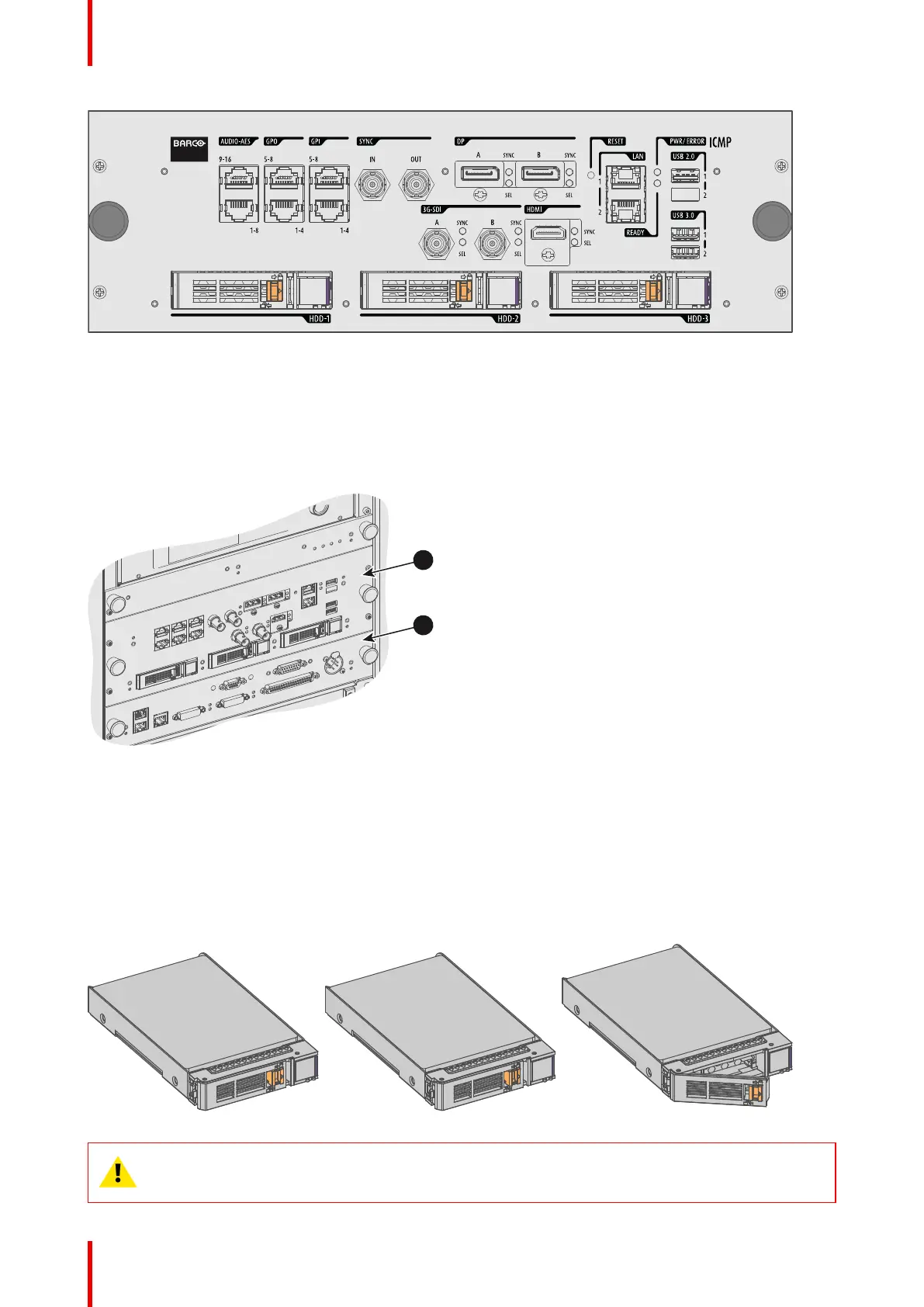

Image 7-4: Front face ICMP (with DisplayPort and HDMI 1.4).
Location in the Card Cage
The Card Cage can be different depending the projector type but it generally consists of a button module and
several removable units. The ICMP (reference 1) is inserted into the former ICP slot and IMB slot next to the
Barco Cinema Controller (reference 2).
ICMP location in the Card Cage of a DPxk B-series, C-series, BLP-series or CLP series projector.
Image 7-5
7.2 ICMP HDD
About ICMP HDD
The three HDDs (local storage) in the ICMP, are set up in a RAID 5 configuration. This storage technique, that
combines multiple HDD components into a logical unit, manages enough redundancy information to continue
to operate properly after the loss of one HDD.
Image 7-6
CAUTION: A RAID 5 configuration with three HDDs allows a maximum loss of one disk. With the
simultaneous loss of more than one HDDs, data is lost and the RAID must be completely initialized
again after replacement of the defect HDDs with new HDDs!
