R5905754 /13 DPxK-32B 81
6.4 HD-SDI Input Module (optional)
Not available for purchase at Barco for use in Taiwanese market.
Depending on the projector configuration the projector card cage is either equipped with an ICP or
ICMP. In case an ICP is installed then an IMB, IMS, or HDSDI input module can be optionally
inserted into the slot below the ICP. This is not the case if the ICMP is installed. For more
information about the ICMP see chapter called ICMP.

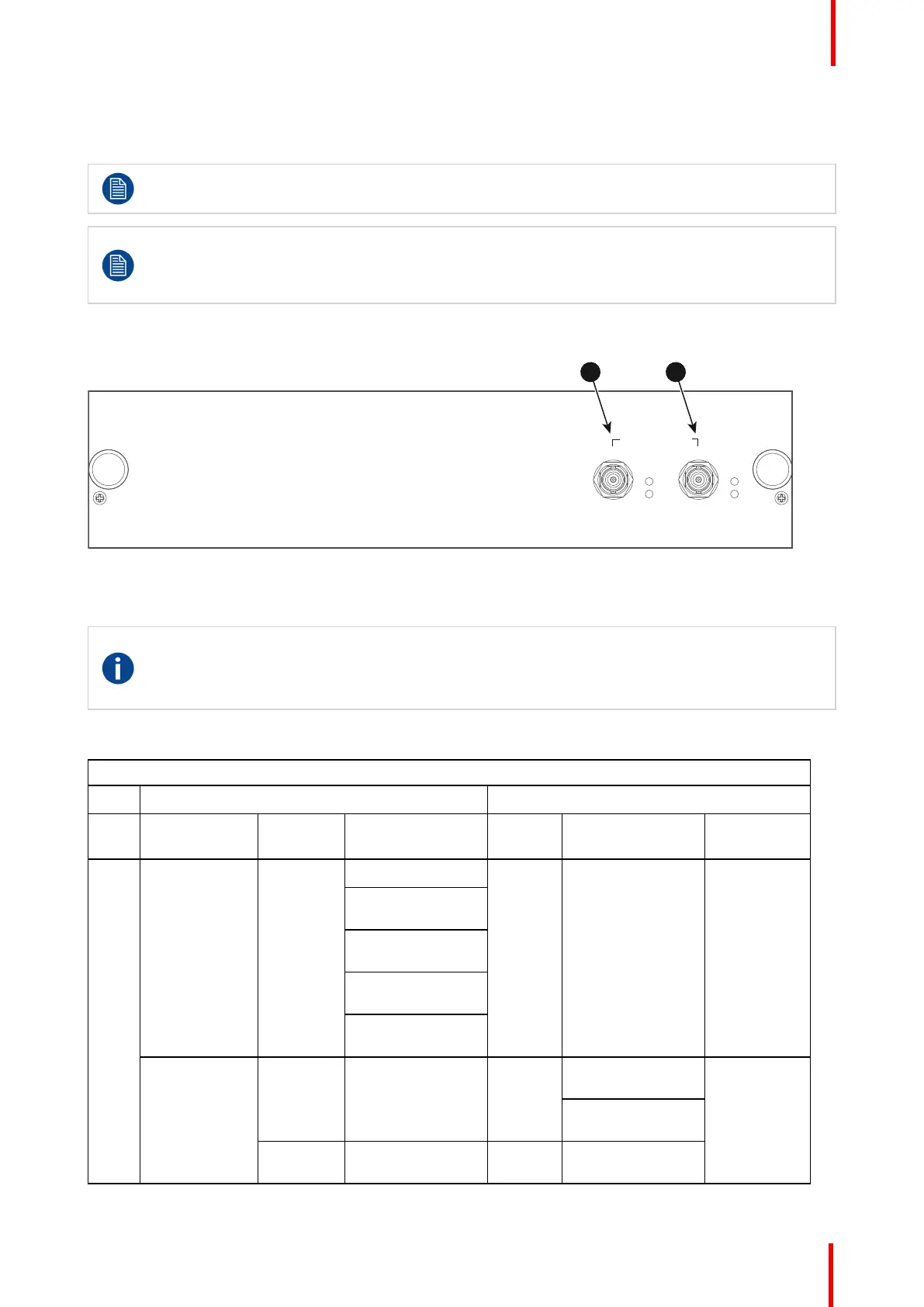

Location of the source input ports
SMPTE 292/424 IN
A B
SEL
SYNC OK
SEL
SYNC OK
1 2
Image 6-4
1 SMPTE 292/424 input, port A (maximum cable length of 30 m allowed)
2 SMPTE 292/424 input, port B (maximum cable length of 30 m allowed)
SMPTE
Society of Motion Picture and Television Engineers - A global organization, based in the United
States, that sets standards for baseband visual communications. This includes film as well as video
standards.
HD-SDI settings
Source: 2K
General settings Advanced settings
Port Port type Mode Scan type Color
space
Pixel mapping Calibration
A or
B
HDSDI Single
link
4:2:2 10
bits/color
Progressive YCbCr HDSDI-Single link Single
Progressive - field
bit normal
Progressive - field
bit inverted
Progressive SF -
2nd field dominant
Progressive SF -
1st field dominant
3GSDI link 4:2:2 12
bits/color
Progressive YCbCr 3G-level A-Single
link
Single
3G-level B-Dual
link
4:4:4 10
bits/color
Progressive RGB 3G-level A-Single
link
