Barco DP K-32B Series User Manual

R5905754 /13 DPxK-32B 145
1
1
2
2

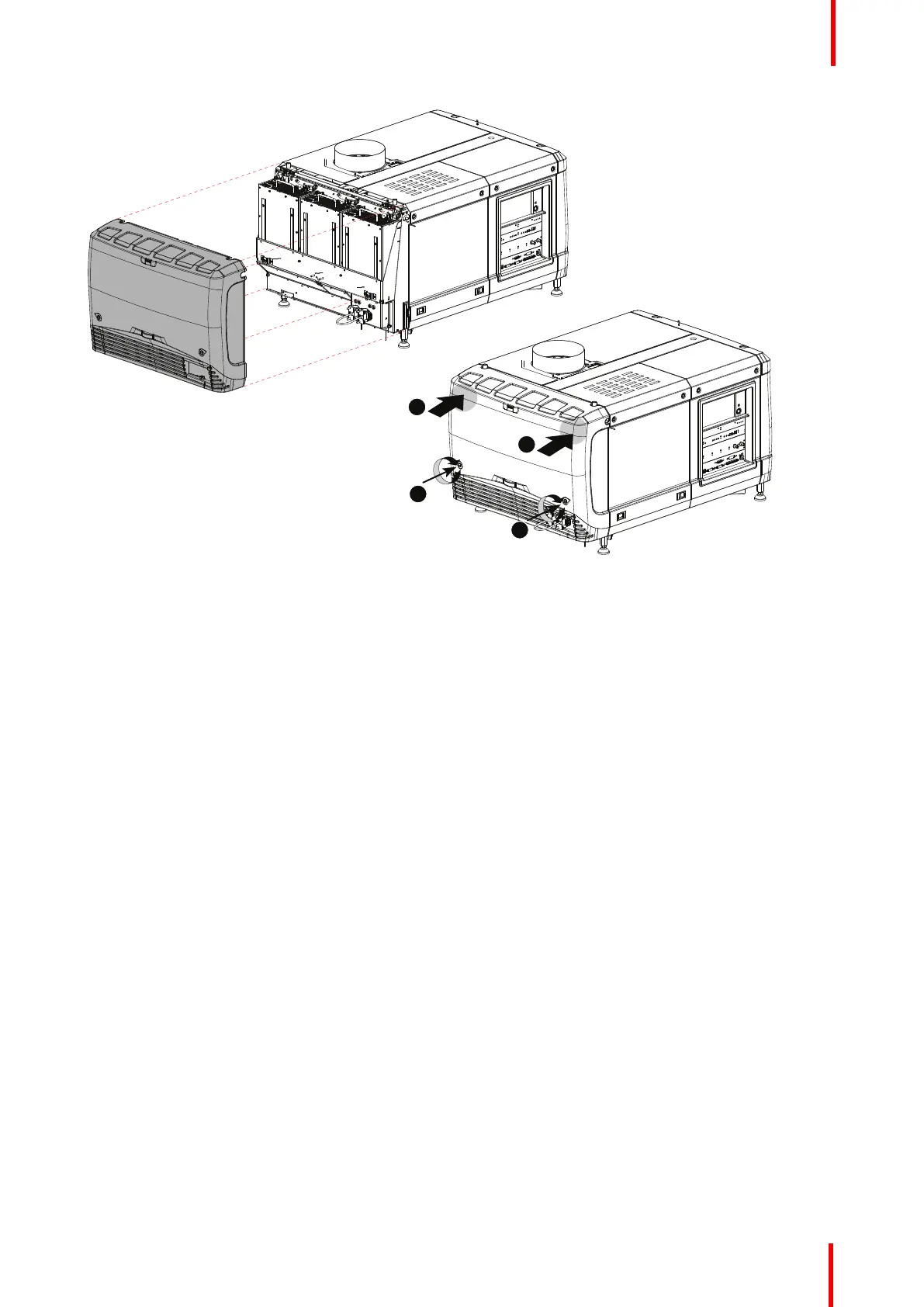

Image 10-19: Mount rear cover
2. Secure the cover by fastening the captive screw at the bottom of the rear cover (2).
10.10 Installation of the side cover
How to install
1. Place the top of the side cover on its place.
Close the cover as follow:
1. Gently move the bottom side of the cover towards the projector
2. Push both lock to each other and push at the same time the cover against the projector frame.
3. Release both locks so that they lock in their receivers.
Removal and installation of the projector covers
