R5905754 /13 DPxK-32B 33

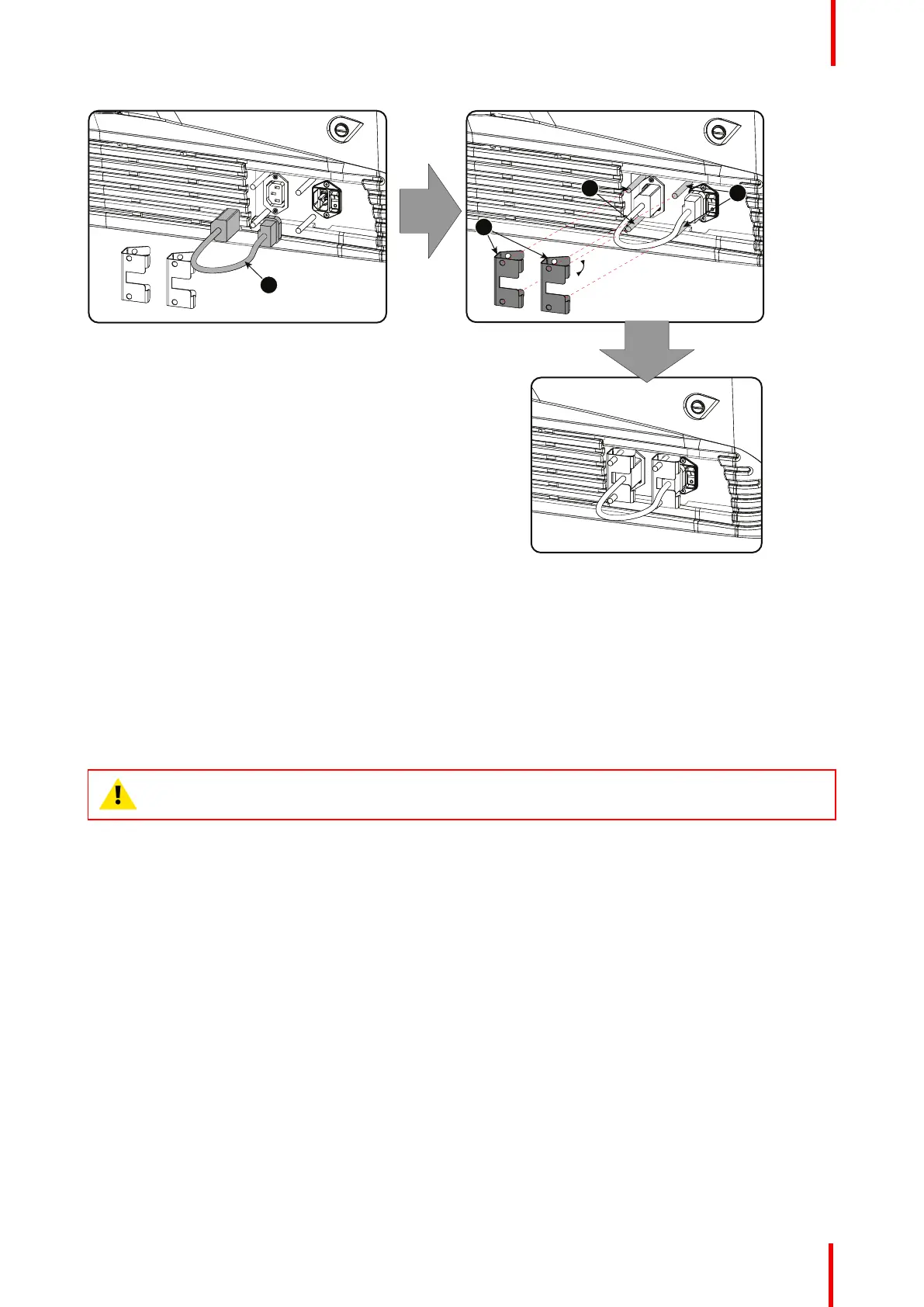

Image 3-14: Power loop through connection
2. Secure both plugs of the short cable with a fixation spring (2). Handle as follow:
• Squeeze the fixation spring together.
• Slide the fixation spring on the fixation pins (3) while squeezing together and push it against the power
plug.
• Release the fixation spring.
3.7 Connecting a UPS to the projector electronics
WARNING: Only use UPS units which are suitable for the DPxK-32B. See chapter ”General”,
“Installation requirements” for more information about the requirements of the UPS.
How to connect the UPS
1. Install the UPS according to the instructions of the manufacturer and the local regulations.
2. Connect the power output cord from the UPS unit to the UPS inlet socket of the projector (right socket).
Connect directly (A) or drag the cable behind the front cover so that the front cover can be removed without
removing the UPS INLET cable (B).
Physical installation
