R5905754 /13 DPxK-32B24
3.1 Positioning the DPxK-32B at port window
WARNING: The installation of the DPxK-32B requires at least 4 persons.
General guide lines
• Use a solid pedestal to put the DPxK-32B on. Ensure that the pedestal can handle the weight of the
projector and that all feet of the projector are captured.
• The pedestal should be placed in front of the port window wall in a manner that the projector front cover is
at a minimum distance of 20 centimeters from the port window.

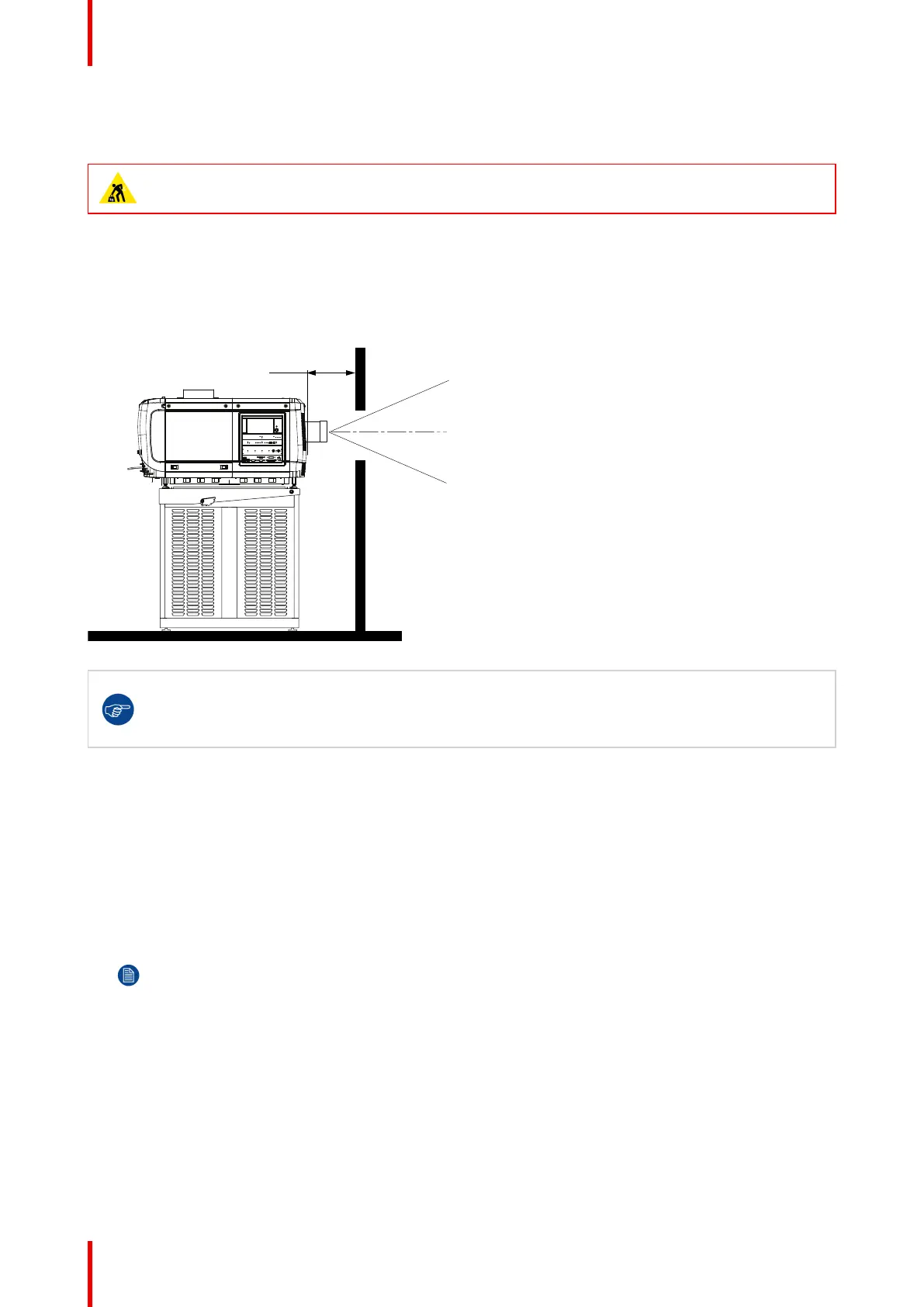

Image 3-1: Positioning at port window
Barco offers a pedestal for the DPxK-32B series projector. This universal pedestal allows a solid
and easy setup of the projector. The universal pedestal has a separate compartment to install the
UPS unit (if available) for the DPxK-32B series projector. Futhermore, the universal pedestal
contains a standard 19” rack to build in the projector peripherals like alternative content switchers.
Required tools
• 14 mm wrench
• 17 mm wrench
Projector centering
1. If the projector is standalone in front of the port window, center the projector with the theatre screen (see ref A
Image 3-2).
2. If a film projector is already present (projector will be off-center), try to optimize aim (see ref B Image 3-2).
Note: Unlike film projectors, it is best to keep the projector lens surface as parallel to the screen as
possible, even if it is significantly above the screen center.
The off-center position slightly increases side keystone, but will minimize horizontal lens offset required.
Physical installation
