R5905754 /13 DPxK-32B 51
5 Nm
5 Nm
5 Nm
5 Nm
3
2
1
11

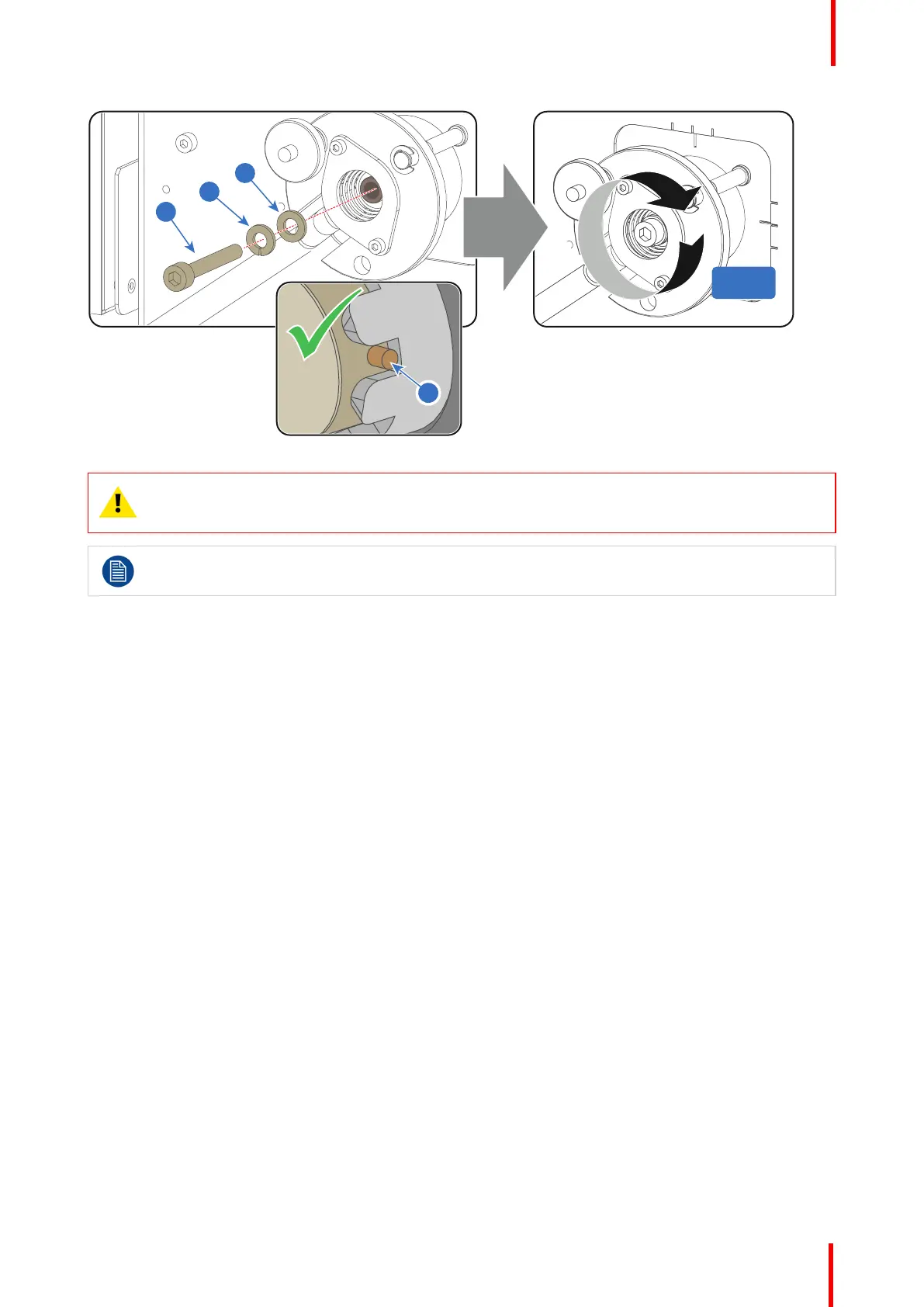

Image 4-27
CAUTION: The “LAMP INFO” parameters which are stored on a chip inside the Lamp House MUST
be updated after each installation of an xenon lamp inside the Lamp House. Neglecting this update
will result in poor performance and short life time of the xenon lamp.
A realignment of the xenon lamp in its reflector is required after the installation of the xenon lamp in
the Lamp House.
4.6 Check if anode support must be provided with
a plain washer
Required tools
• 2.5mm Allen wrench.
• 19mm open-end wrench.
Required parts
Plain washer, stainless steel, ØD = 18mm, Ød = 6.4mm, thickness = 1.6mm. (V3673807).
How to check if the anode support must be provided with a plain washer?
1. Turn the thumbscrew of the Z direction counterclockwise as for as possible (minimum Z position of the xenon
lamp).
2. Check if the anode pin of the xenon lamp remains supported by the anode support.
Lamp & Lamp House
