R5905754 /13 DPxK-32B50

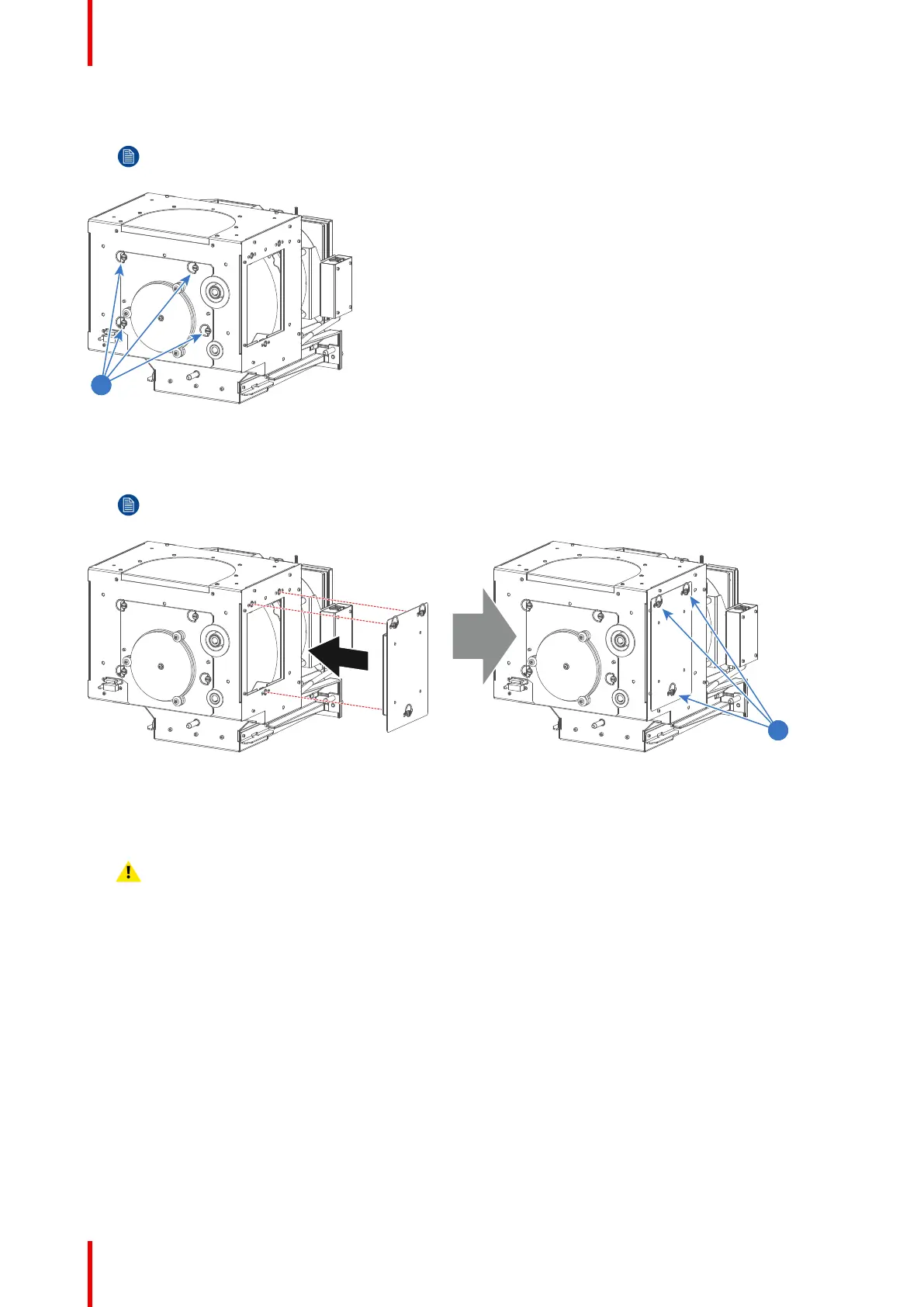

10. Secure the UV blocker by fastening the four quarter turn screws (reference 5 Image 4-25) as illustrated.
Note: Ensure that the quarter turn screws turning wires are flush with the cover or interference will
occur while inserting the Lamp House into the projector.
Image 4-25
11. Install the side cover of the Lamp House and fasten the three quarter turn screws (reference 4 Image 4-26) of
the cover.
Note: Please ensure that the quarter turn screws turning wires are flush with the cover or interference
will occur while inserting the Lamp House into the projector.
Image 4-26
12. Secure the xenon lamp cathode with the hexagon socket head cap screw (reference 1 Image 4-27), spring
washer (reference 2 Image 4-27) and plain washer (reference 3 Image 4-27). Fasten the screw with a torque
of 5 Nm (3,7 lbf*ft). Use a torque wrench with a 5 mm Allen socket.
Caution: Make sure that both pins (reference 11 Image 4-27) of the cathode adapter remain engaged
in the foreseen slots.
Lamp & Lamp House
