Barco DP K-32B Series User Manual

R5905754 /13 DPxK-32B114

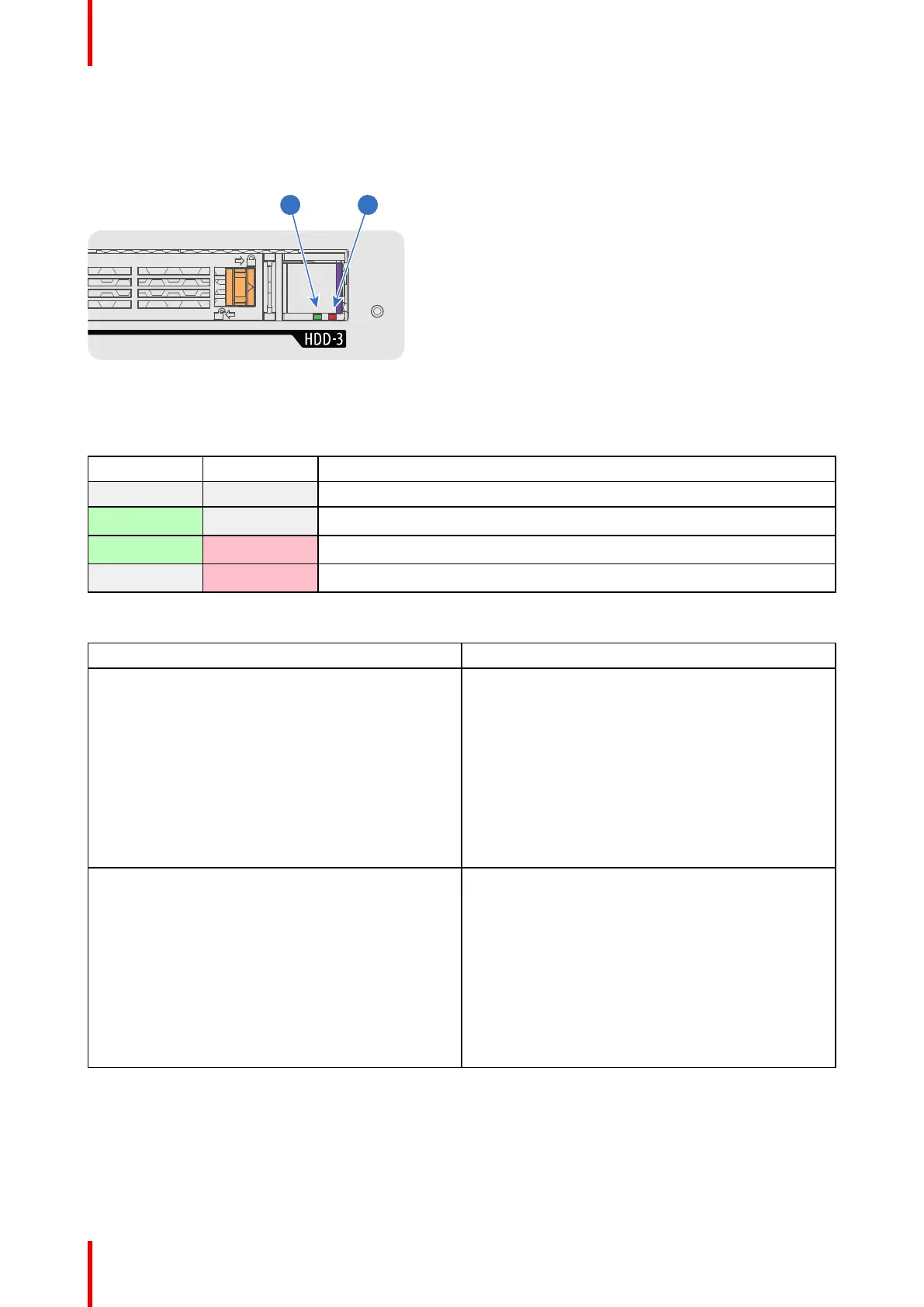

7.10 ICMP HDD status LEDs
ICMP HDD status LEDs
54
Image 7-11
4 HDD I/O LED
5 RAID LED
Status overview HDD I/Oand RAID LEDs:
HDD I/O
RAID
ICMP HDD Status
Off Off HDD idle / Disk in RAID OK.
Blinking Green Off HDD I/O activity / Disk in RAID OK.
Blinking Green Blinking Red HDD I/O activity / RAID rebuilding.
Off Red HDD idle / Disk error. See troubleshooting table below for curative actions.
Troubleshooting
Situation Solution
One disk failed (red LED) + RAID degraded.
The ongoing event is not interrupted.
Note: The disk status (RAID degraded) can be
retrieved via the (Web) Commander. See user guide
of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with approved model of
the same storage capacity. See procedure
“Removing a HDD from the ICMP”, page 120,
and “Installing a HDD into the ICMP”, page 121.
Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the
ICMP the rebuild of the RAID is started (Blinking red
LED).
One disk failed (red LED) + Error 10580 “local
storage not available”.
Note: The disk status (Error code) can be retrieved
via the (Web) Commander. See user guide of the
(Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with approved model of
the same storage capacity. See procedure
“Removing a HDD from the ICMP”, page 120,
and “Installing a HDD into the ICMP”, page 121.
Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the
ICMP the rebuild of the RAID is started (Blinking red
LED).
