R5905754 /13 DPxK-32B 41
• Flat blade screw driver.
• 2.5mm Allen wrench.
How to remove the xenon lamp out of the manual XL Lamp House?

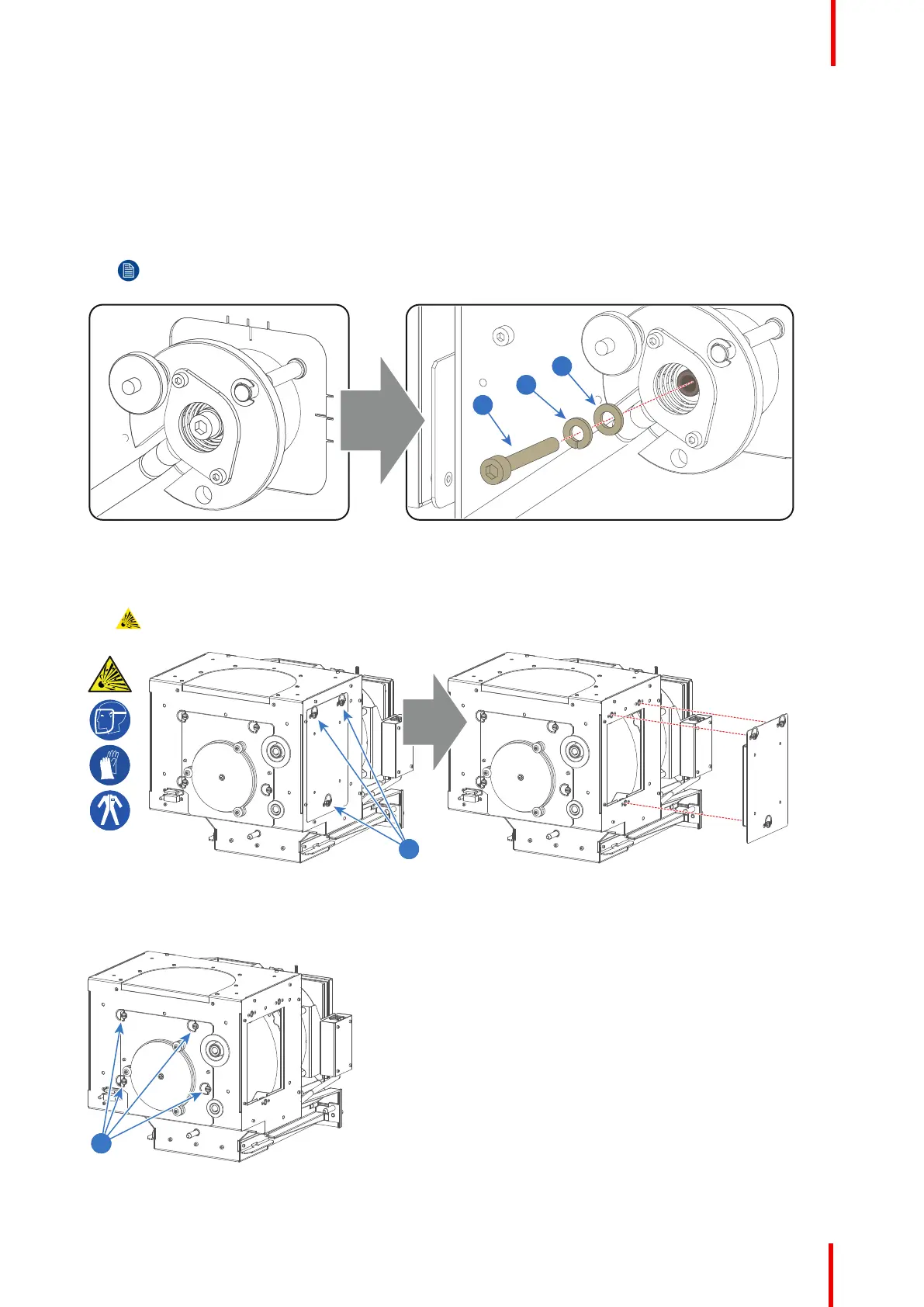

1. Remove the hexagon socket head cap screw (reference 1 Image 4-7) which fastens the cathode of the xenon
lamp. Use a 5 mm Allen wrench. Do not release the cathode wire lug. The screw contains a spring washer and
a plain washer (reference 2 & 3 Image 4-7).
Note: The cathode wire remains in its position after the screw and two washers are removed.
Image 4-7
2. Remove the side cover of the Lamp House by releasing the three quarter turn screws (reference 4 Image 4-8)
of the side cover as illustrated.
Caution: Ensure that you wear protective clothing, a full face shield and protective gloves.
Image 4-8
3. Release the four quarter turn screws (reference 5 Image 4-9) of the UV blocker assembly as illustrated. Make
sure that the anode support remains in its position while releasing the screws.
Image 4-9
Lamp & Lamp House
