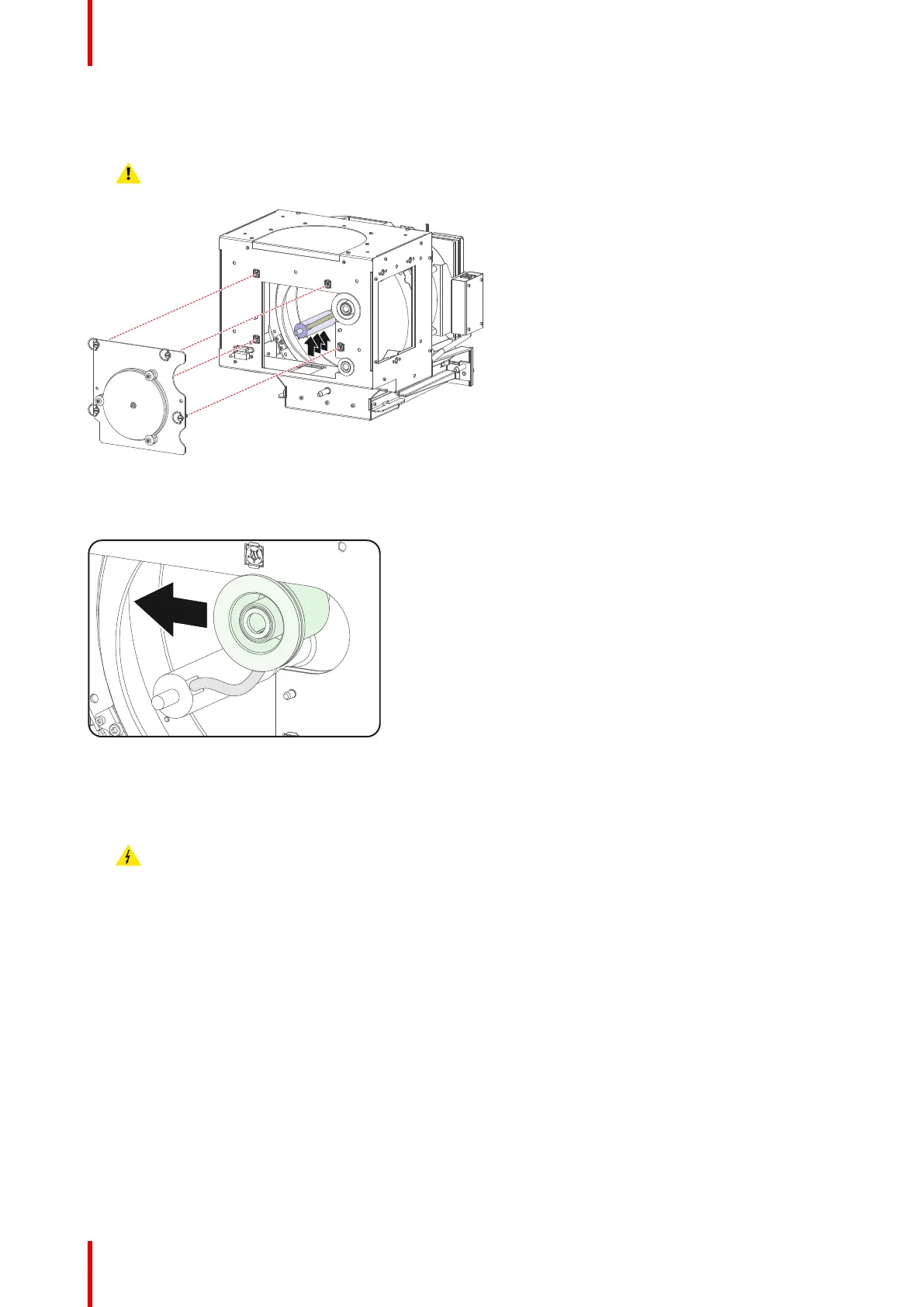

4. Support the xenon lamp inside the Lamp House with one hand while removing the UV blocker assembly from
the lamp house.
Warning: Supporting the xenon lamp with one hand prevents the xenon lamp from dropping and
colliding with the chassis of the Lamp House.
Image 4-10
5. Slide out the anode connector from the Lamp House. The anode connector remains attached with the lamp
anode wire.
Image 4-11
6. Gently remove the xenon lamp together with the anode socket out of the Lamp House. Do not use excessive
force upon the xenon lamp. Normally the xenon lamp will easily slide out the cathode socket of the Lamp
House.
Warning: Supporting the xenon lamp with one hand while pulling it out with other hand prevents it from
bumping against the chassis of the Lamp House.
