R5905754 /13 DPxK-32B 43
Image 4-12
7. Place the xenon lamp in its protective container or wrap the xenon lamp in a protective cloth and secure with
two binders.

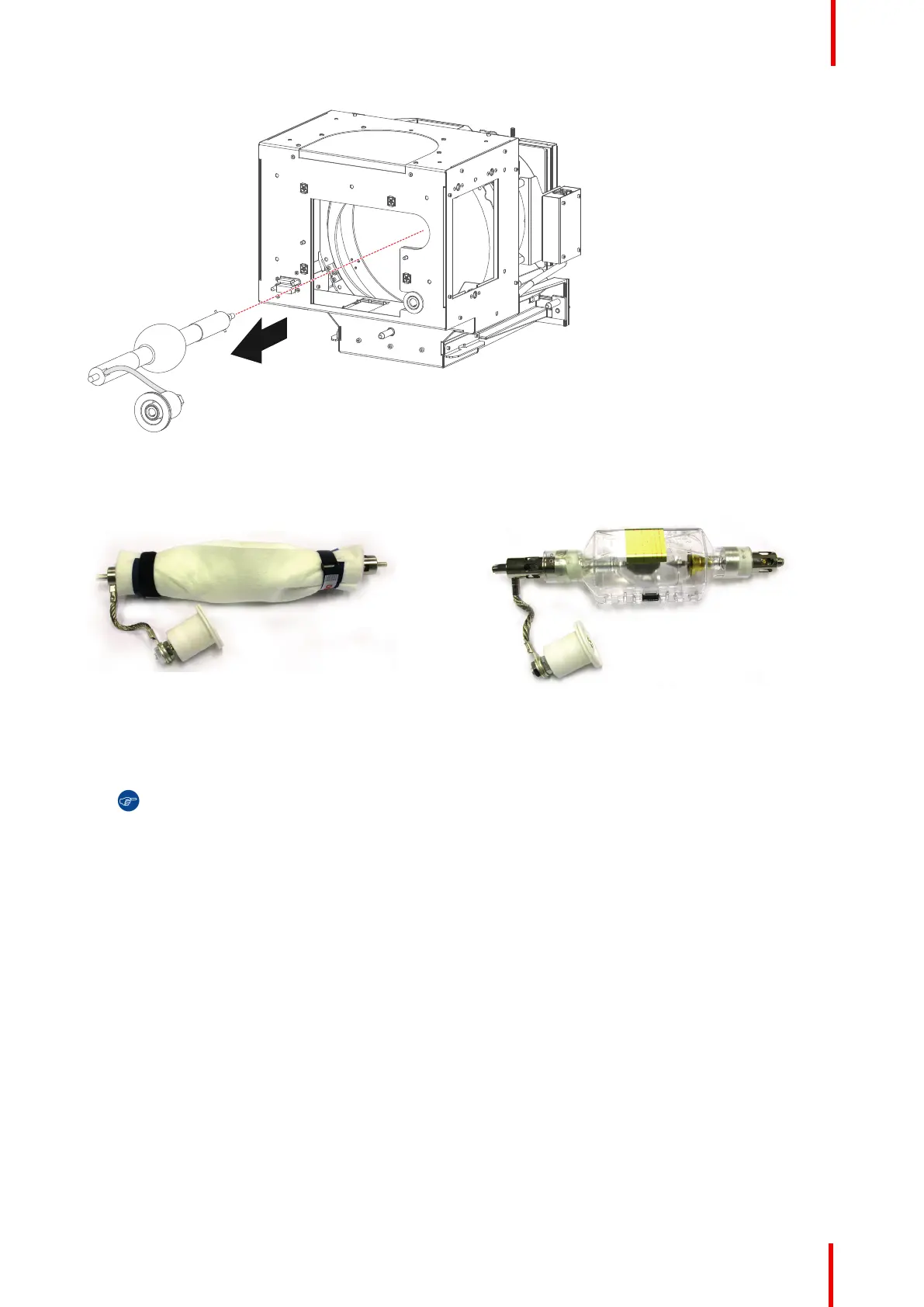

Image 4-13: Left: Xenon lamp wrapped in a protective cloth. Right: Xenon lamp captured in a protective container.
8. Remove the anode wire lug (reference 7 Image 4-14) from the anode socket. Use for that two open ended
spanners of 22 mm. Hold the first nut (reference 5) with one spanner while releasing the second nut (reference
9 Image 4-14) with the other spanner.
Tip: Place the flat washer and the nut back on the rod after the lug is removed.
