R5905754 /13 DPxK-32B126
M

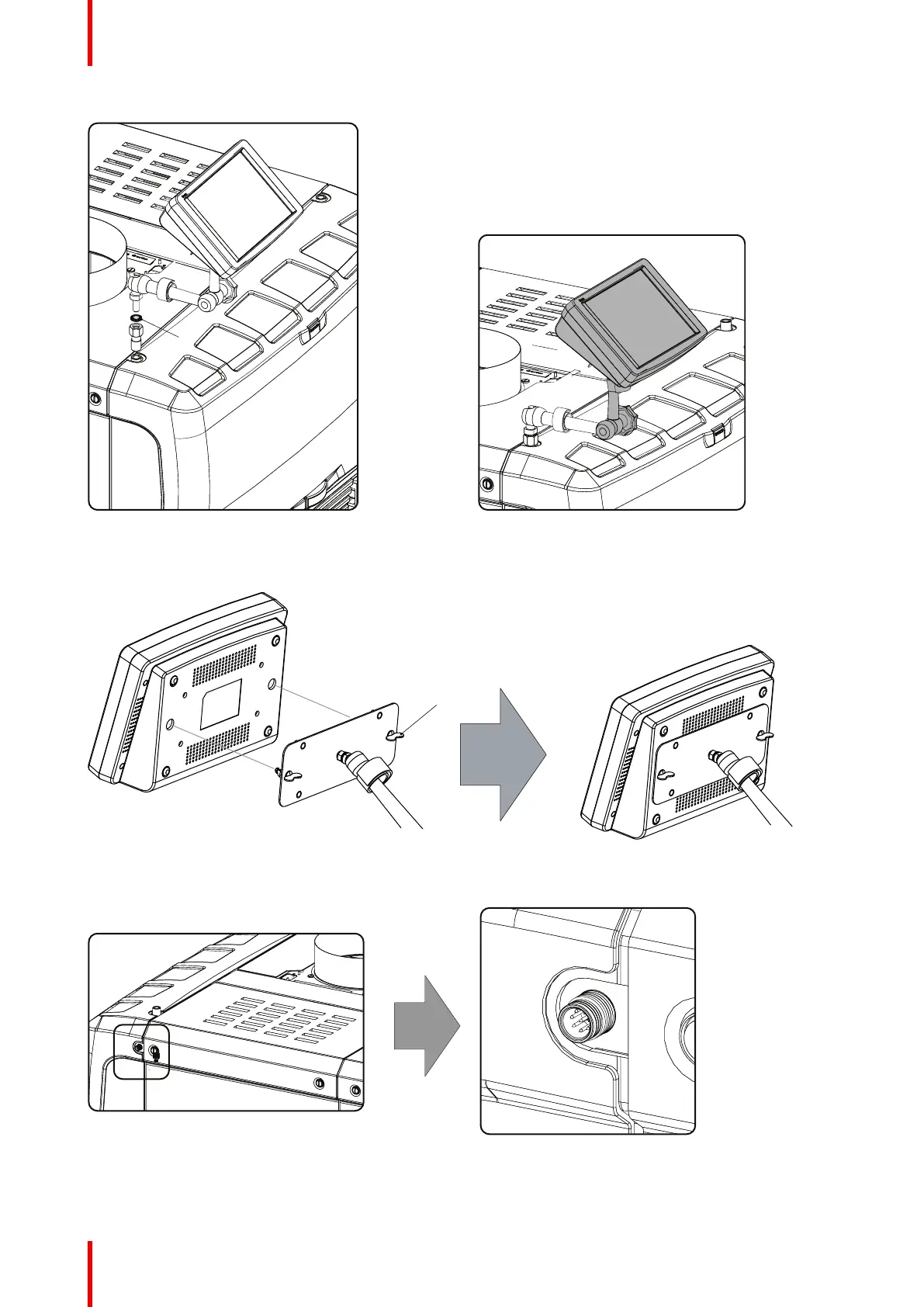

Image 8-4: Mount touch panel Image 8-5: Touch panel mounted
3. Place the touch panel interface on the mounting plate of the swivel arm and fasten the two wing nuts (W) as
illustrated.
W
Image 8-6: Mount touch panel
4. Connect the circular plug of the multi cable with the circular socket at the rear side of the DPxK-32B.
Image 8-7
5. Attach the multi cable to the swivel arm using the two Velcro strips.
Communicator Touch Panel
