10. Integrator rod
1
2
3
4

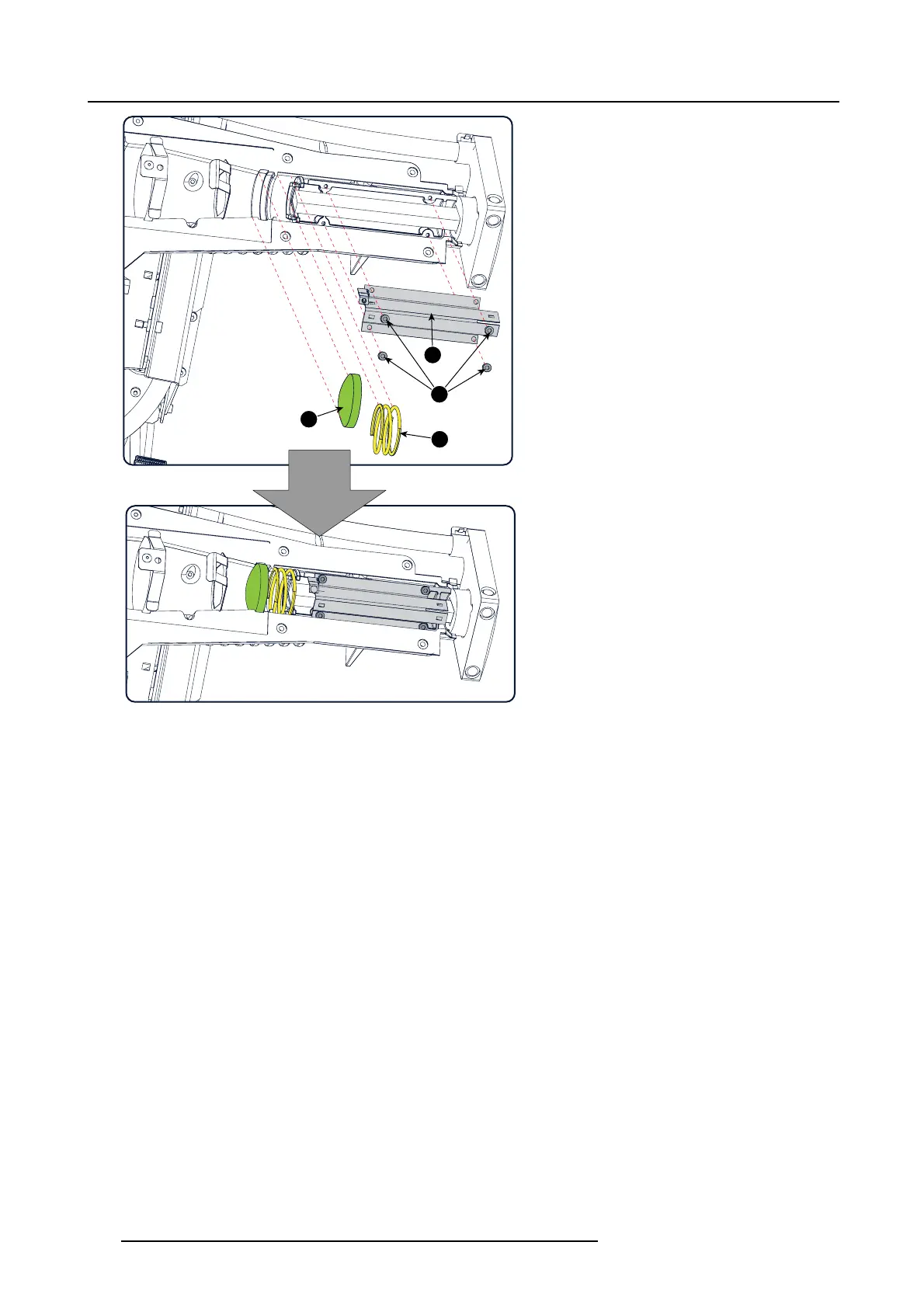

Image 10-8
Light pipe, inside
5. Take the spring, squeeze it and insert it in the com partment (reference 3, image 10-8).
Do not touch the ou tput of the integrator rod while ins erting the spring.
Release the spring once it is on its place.
6. Insert the lens with the convex side to the left (away from the rod entrance cooling block) (reference 4, image 10-8).
7. Place the light pipe housing back on its place and secure with 4 x 2 screws.
174
R5905043 DP2K-12C/11CX 19/02/2018
